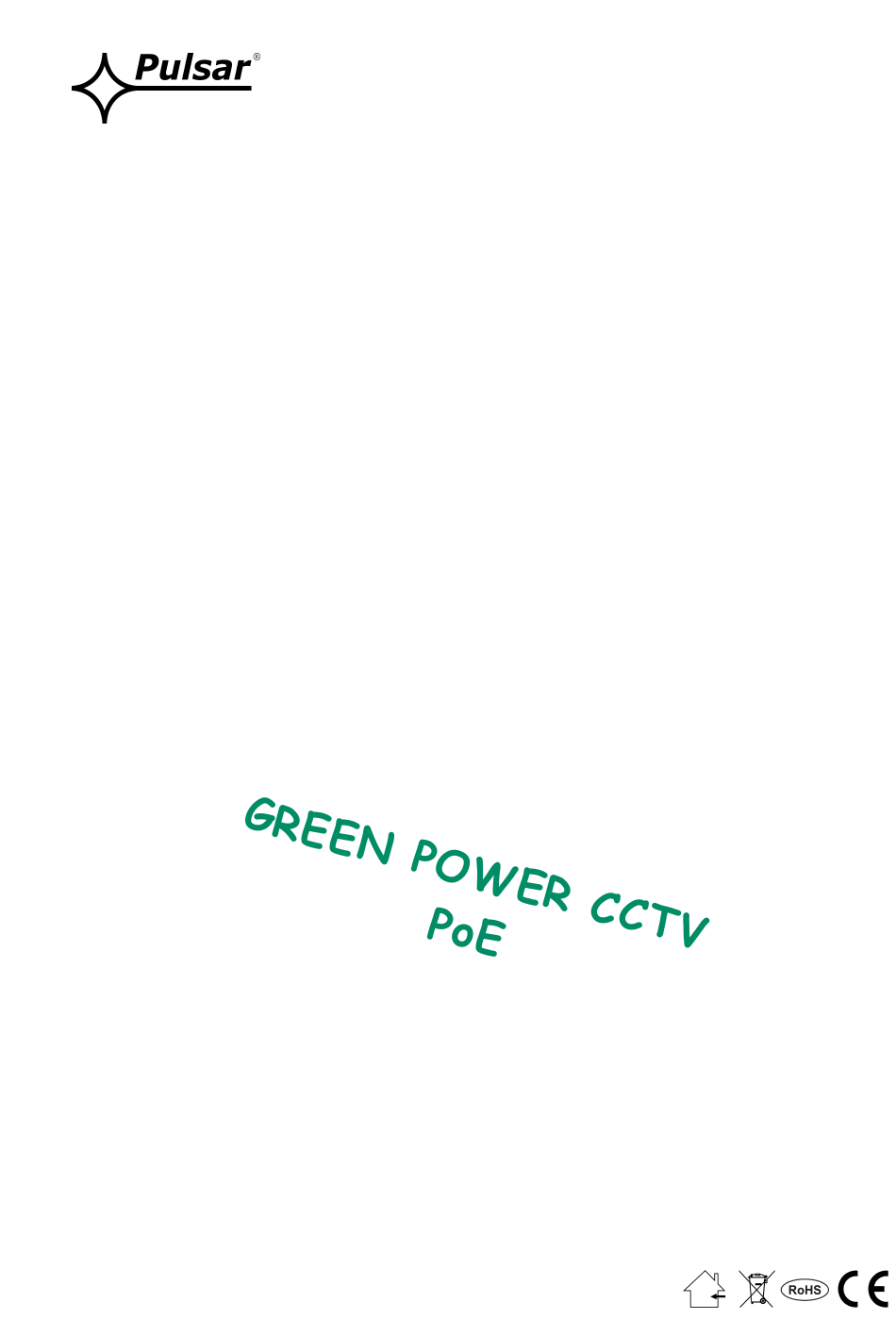

Pulsar GREEN POWER CCTV PoE POE044816 Manual

Pulsar GREEN POWER CCTV PoE POE044816 Manual

Switch mode power supply unit for cctv

Advertisement

Quick Links

POE044816
v.1.0
PoE 48V/4x0,4A
Switch mode power supply unit for CCTV.
EN**
Edition: 1 from 28.10.2013
Supersedes the edition: ------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GREEN POWER CCTV PoE POE044816 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pulsar GREEN POWER CCTV PoE POE044816

  • Page 1 POE044816 v.1.0 PoE 48V/4x0,4A Switch mode power supply unit for CCTV. EN** Edition: 1 from 28.10.2013 Supersedes the edition: ------...
  • Page 2: Table Of Contents

    GREEN POWER CCTV PoE www.pulsar.pl POE044816 PSU features: • • supply output 4x0,4A/48V DC LED optical indication • • output voltage adjustment 42V÷ 54V DC FPS technical output – indication of the • output fuse activation– relay and OC type Wide range of supply voltage: 88÷264V AC...
  • Page 3: Block Diagram

    GREEN POWER CCTV PoE www.pulsar.pl POE044816 1.2. Block diagram. Fig. 1. Block diagram of the PSU. 1.3. The description of components and connectors of the PSU. Table 1. Component No. Description [Fig. 2] LED optical indication: [1], [10] green L –...
  • Page 4: Technical Parameters

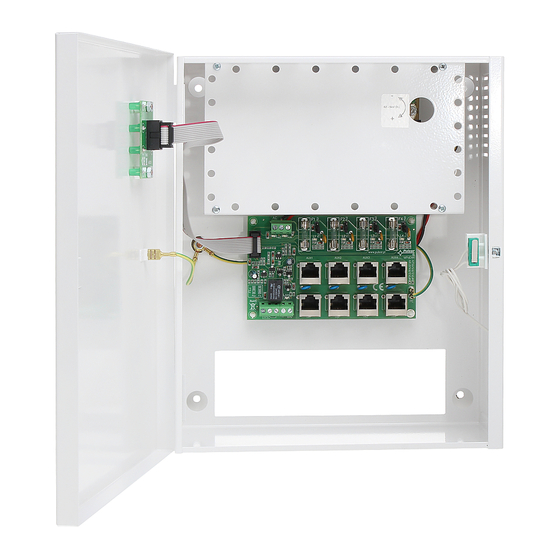

    GREEN POWER CCTV PoE www.pulsar.pl POE044816 Fig. 3. The view of the PSU. Component No. Description [Fig. 3] The module of the switch mode PSU LED light indicating correct operation of the switch mode PSU V1 ADJ potentiometer – regulation of the power supply output voltage PoE module TAMPER –...
  • Page 5: Installation

    GREEN POWER CCTV PoE www.pulsar.pl POE044816 - TAMPER output indicating enclosure opening - microswitch, NC contacts (enclosure closed), 0,5A@50V DC (max.) Optical indication of operation: YES – LED lights Technical outputs: - FPS technical output indicating output fuse - OC type, 50mA max.
  • Page 6: Installation Procedure

    GREEN POWER CCTV PoE www.pulsar.pl POE044816 The power supply is designed for a continuous operation and is not equipped with a power-switch. Therefore, an appropriate overload protection in the power supply circuit should be provided. Moreover, the user should be informed how to disconnect the power supply unit from the mains supply (usually by assigning an appropriate fuse in the fuse box).
  • Page 7: Power Supply Operation Indication

    GREEN POWER CCTV PoE www.pulsar.pl POE044816 3. Power supply operation indication. 3.1. Optical indication. The PSU has 6 LED lights at the front panel: RED LED: • on – DC voltage at the output of the switch mode PSU •...
  • Page 8: Service And Operation

    GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
