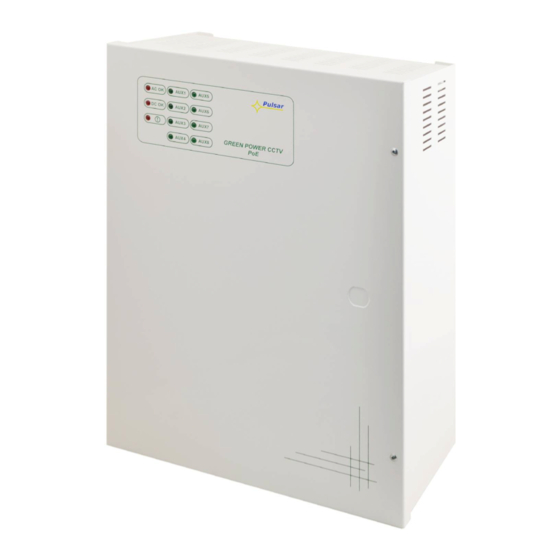

Poe 54v/8xo,3a/4x7ah poe buffer power supply for up to 8 ip camera.
Hide thumbs Also See for GREEN POWER CCTV POE084824B:

Advertisement

Quick Links

POE084824B
v.1.1
PoE 54V/8x0,3A/4x7Ah
PoE buffer power supply for up to 8 IP camera.
EN*
Edition: 7 from 15.11.2017
Supersedes the edition: 6 from 22.11.2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GREEN POWER CCTV POE084824B and is the answer not in the manual?

Questions and answers

Summary of Contents for Pulsar GREEN POWER CCTV POE084824B

  • Page 1 POE084824B v.1.1 PoE 54V/8x0,3A/4x7Ah PoE buffer power supply for up to 8 IP camera. Edition: 7 from 15.11.2017 Supersedes the edition: 6 from 22.11.2016...
  • Page 2: Table Of Contents

    GREEN POWER CCTV PoE www.pulsar.pl POE084824B PSU features:   FPS technical output – indication of the output DC 54V uninterruptible power supply to 8 cameras IP  fuse activation– relay and OC type battery housing: 4x7Ah/12V   LED optical indication Wide range of AC supply voltage: 176÷264V...
  • Page 3: Technical Description

    GREEN POWER CCTV PoE www.pulsar.pl POE084824B 1. Technical description. 1.1. General description. The PSU is designed for supply of up to 8 webcams requiring stabilized voltage of 48V DC(+/-15%). The PSU supplies voltage of 54V DC and total current capacity of: 1.
  • Page 4 GREEN POWER CCTV PoE www.pulsar.pl POE084824B these LEDs are on) Network outputs (Ethernet + power supply) – for camera connection Network inputs (Ethernet) FPS – technical output indicating failure – OC type FPS – technical output indicating failure – relay type...
  • Page 5: Technical Parameters

    GREEN POWER CCTV PoE www.pulsar.pl POE084824B Component No. Description [Fig. 3] The module of the switch mode PSU LED light indicating correct operation of the switch mode PSU ADJ potentiometer – regulation of the power supply output voltage PoE module Connectors for connecting the batteries: +BAT = red, - BAT = black TAMPER –...
  • Page 6 GREEN POWER CCTV PoE www.pulsar.pl POE084824B Mechanical parameters (Table 4). Dimensions W=300, H=407, D=127, D =15 [+/- 2mm] =305, H =410 [+/- 2mm] Mounting plate dimensions =260, H =127 [+/- 2mm] Operating space =48 [+/- 2mm] The dimensions of the...
  • Page 7: Installation

    GREEN POWER CCTV PoE www.pulsar.pl POE084824B Installation. 2.1. Requirements. The buffer PSU should be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230V/AC and low-voltage installations. The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity (RH=90% maximum, no condensation) and temperature range from -10°C up to +40°C.
  • Page 8: Power Supply Operation Indication

    GREEN POWER CCTV PoE www.pulsar.pl POE084824B Fig. 5. Connection of cameras and network devices to the IN and AUX terminals. 6. Use the F1/PTC1 ÷ F8/PTC8 jumpers to select the type of short circuit / overload protection of individual circuits.
  • Page 9: Technical Outputs

    GREEN POWER CCTV PoE www.pulsar.pl POE084824B 3.2. Technical outputs. The PSU has the following indication outputs:  FPS – technical output of the PSU status: - OC type output indicating failure (short-circuit, overload). During normal operation, shorted to ground – L state (0V).
  • Page 10 CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must not be thrown but recycled according to the applicable law. Pulsar Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 E-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
