Summary of Contents for Pulsar POE164864

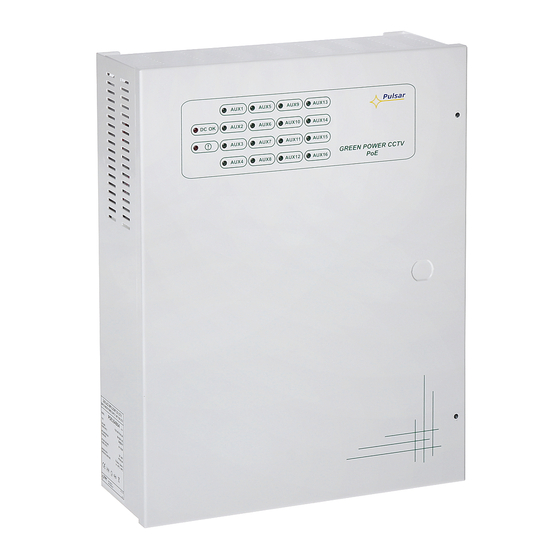

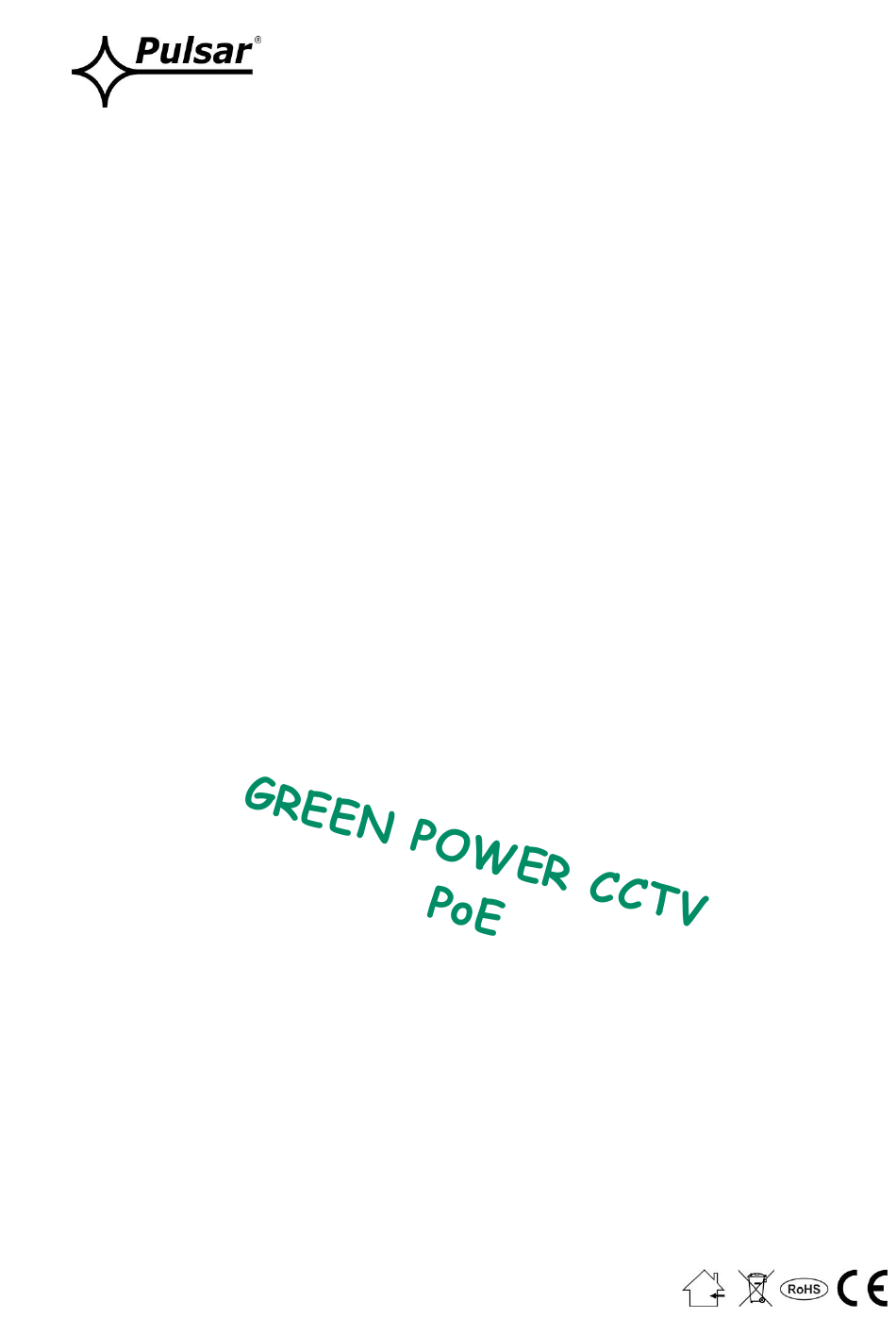

- Page 1 POE164864 v.1.0 PoE 48V/16x0,4A Switch mode power supply unit for CCTV. EN** Edition: 1 from 01.12.2014 Supersedes the edition: ----------...
-
Page 2: Table Of Contents
GREEN POWER CCTV PoE www.pulsar.pl POE164864 PSU features: FPS technical output – indication of the supply output 16x0,4A/48V DC output fuse activation – relay and OC type output voltage adjustment 41V÷ 56V DC protections: Wide range of supply voltage: 90÷264V AC ... -
Page 3: Block Diagram
GREEN POWER CCTV PoE www.pulsar.pl POE164864 1.2. Block diagram. Fig. 1. Block diagram of the PSU. 1.3. The description of components and connectors of the PSU. Table 1. Component No. Description [Fig. 2] LED optical indication: – green L indication of voltage at the IN input [1], [10] –... - Page 4 GREEN POWER CCTV PoE www.pulsar.pl POE164864 Fig. 2. Components arrangement.
-
Page 5: Technical Parameters
GREEN POWER CCTV PoE www.pulsar.pl POE164864 Fig. 3. The view of the PSU. Component No. Description [Fig. 3] The module of the switch mode PSU L-N power-supply connector 230V/AC, PE protection connector LED light indicating correct operation of the switch mode PSU potentiometer –... -
Page 6: Installation
GREEN POWER CCTV PoE www.pulsar.pl POE164864 41÷56V DC The adjustment range of the output voltage 16 x 0,4 A Output current Ripple voltage 240 mV p-p max. Short-circuit protection SCP PoE MODULE 16 x F 0,5A or 16 x PTC 0,5A (jumper selectable) PSU MODULE 105% ÷... -
Page 7: Installation Procedure
GREEN POWER CCTV PoE www.pulsar.pl POE164864 During normal operation, the total current drawn by the device should not exceed I = 16x0,4A. The power supply is designed for a continuous operation and is not equipped with a power- switch. Therefore, an appropriate overload protection in the power supply circuit should be provided. Moreover, the user should be informed how to disconnect the power supply unit from the mains supply (usually by assigning an appropriate fuse in the fuse box). -
Page 8: Power Supply Operation Indication
GREEN POWER CCTV PoE www.pulsar.pl POE164864 Rys. 5. Connection of cameras and network devices to the IN and AUX terminals. 6. Use the F1/PTC1 – F16/PTC16 jumpers to select the type of short circuit / overload protection of individual circuits. Jumper in the Fx position – melting fuse activation, PTCx – PTC fuse activation. -
Page 9: Technical Outputs
GREEN POWER CCTV PoE www.pulsar.pl POE164864 3.1. Technical outputs. The PSU has the following indication outputs: FPS – technical output of the PSU status: - OC type output indicating failure (short-circuit, overload). During normal operation, shorted to ground – L state (0V). - Page 10 GENERAL WARRANTY CONDITIONS 1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
