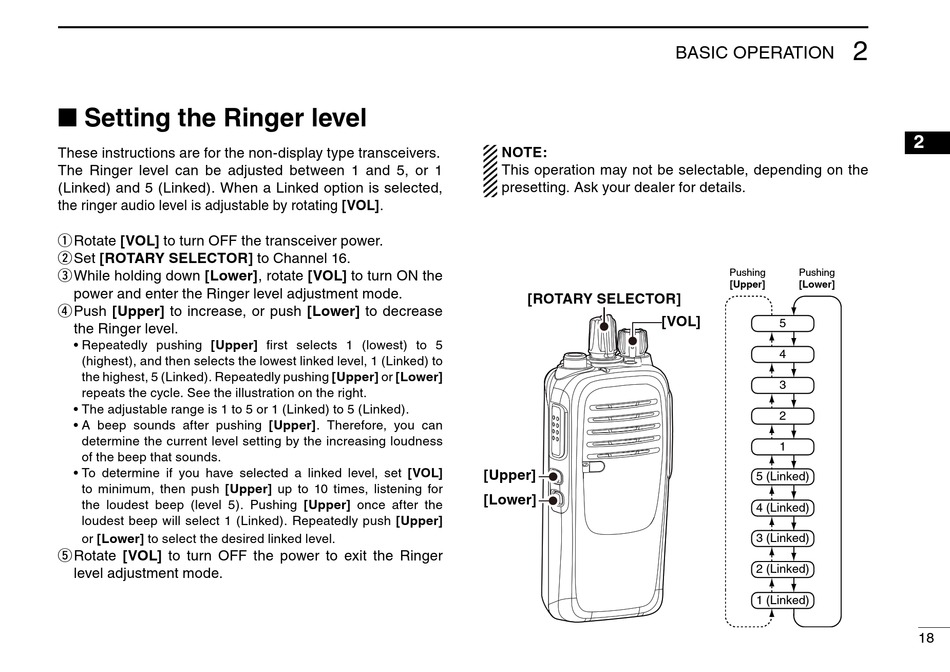

■ Setting the Ringer level

These instructions are for the non-display type transceivers.
The Ringer level can be adjusted between 1 and 5, or 1
(Linked) and 5 (Linked). When a Linked option is selected,
the ringer audio level is adjustable by rotating [VOL].
[VOL] to turn OFF the transceiver power.
Rotate
q
Set [ROTARY SELECTOR] to Channel 16.
w
[Lower], rotate [VOL] to turn ON the
While holding down
e
power and enter the Ringer level adjustment mode.
[Upper] to increase, or push [Lower] to decrease
Push
r
the Ringer level.
• Repeatedly pushing [Upper] first selects 1 (lowest) to 5
(highest), and then selects the lowest linked level, 1 (Linked) to
the highest, 5 (Linked). Repeatedly pushing [Upper] or [Lower]
repeats the cycle. See the illustration on the right.
• The adjustable range is 1 to 5 or 1 (Linked) to 5 (Linked).
• A beep sounds after pushing [Upper]. Therefore, you can
determine the current level setting by the increasing loudness
of the beep that sounds.
• To determine if you have selected a linked level, set [VOL]
to minimum, then push [Upper] up to 10 times, listening for
the loudest beep (level 5). Pushing [Upper] once after the
loudest beep will select 1 (Linked). Repeatedly push [Upper]
or [Lower] to select the desired linked level.
[VOL] to turn OFF the power to exit the Ringer
Rotate
t
level adjustment mode.
NOTE:
This operation may not be selectable, depending on the
presetting. Ask your dealer for details.
[ROTARY SELECTOR]
[VOL]
[Upper]
[Lower]
2
BASIC OPERATION
Pushing Pushing
[Upper] [Lower]
5
4
3
2
1
5 (Linked)
4 (Linked)
3 (Linked)
2 (Linked)
1 (Linked)
