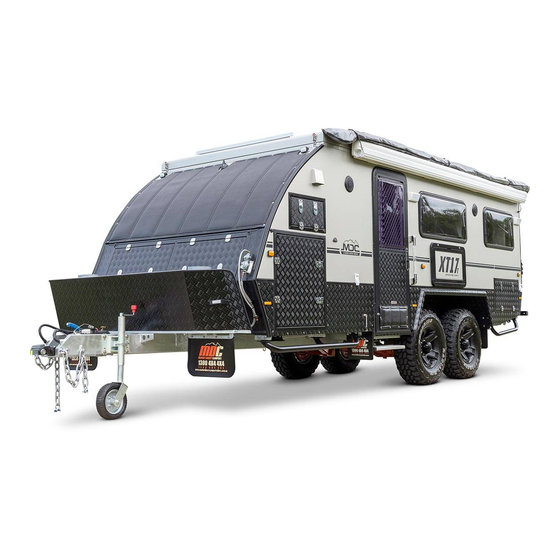

XT17-T
User Manual and Guide
2019 Model Onwards
©Copyright Market Direct Campers & Caravans 2018
Read owner's manual before using the equipment. Third party component manuals should be read in conjunction
with this manual. Maintenance guidelines must be met or exceeded, failing to meet these guidelines may result in
serious injury or death and property damage. Specifications may change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT17-T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MDC XT17-T

Summary of Contents for MDC XT17-T

  • Page 1 XT17-T User Manual and Guide 2019 Model Onwards ©Copyright Market Direct Campers & Caravans 2018 Read owner’s manual before using the equipment. Third party component manuals should be read in conjunction with this manual. Maintenance guidelines must be met or exceeded, failing to meet these guidelines may result in...

  • Page 2: Table Of Contents

    1300 4X4 4X4 ........22 Table of Contents Brake Cleaning and Inspection ..............23 INTRODUCTION ..............2 Magnets .......... 2 ............ 23 Terminology & Abbreviations Shoes and Linings ............. 3 ............ 23 Store Locations Corrosion Prevention Wheels and Tyres ............... 24 .............

  • Page 3: Introduction

    Positive toe, or toe in, is the front of the wheel pointing towards the centreline of the vehicle. Toe can be measured in linear units, at the front or rear of the tyre, or as an angular deflection. In the case of MDC products, the “toe in” is...

  • Page 4: Store Locations

    Welshpool WA 6107 SOUTH AUSTRALIA Adelaide 1246 South Rd Clovelly Park SA 5042 Contact Details NATIONAL TOLL FREE WARRANTY HOTLINE SPARE PARTS 1300 MDC CARE 1300 MDC PARTS 1300 4X4 4X4 1300 494 494 1300 632 2273 1300 632 72787...
  • Page 5 1300 4X4 4X4 Video Tutorials Handover Tutorial View this video before operating the product Scan the code or go to https://youtu.be/8BQV3nR_EqQ Setup Tutorial View this video for setup instruction Scan the code or go to https://youtu.be/r7Ap8ZitXzM Kitchen and Electrical Tutorial View this video for kitchen and electrical setup instruction Scan the code or go to https://youtu.be/XP2YDav0CyU...

  • Page 6: About Your Hybrid Offroad Caravan

    1300 4X4 4X4 ABOUT YOUR HYBRID OFFROAD CARAVAN Specifications Specifications apply to: 2020 Model Only Dimensions Closed with ac 2180mmW x 7150mmL x 2590mmH Dimensions Open with AC 5550mmW x 7655mmL x 3090mmH Tare 2,695kg 3,500kg Drawbar Construction Galvanised 150mm x 50mm x 4mm Chassis Construction Galvanised 150mm x 50mm x 3mm Body Construction...

  • Page 7: Fridge Fitting Chart

    1300 4X4 4X4 Fridge Fitting Chart *Fridge manufacturer specifications may change. Always check current specifications prior to purchase Slide Dimensions H: 610mm W: 500mm L: 800mm Dometic Engel Evakool Bushman Ironman Kickass Kings CFX65W MT35FP ED65 Classic 78L CFX50W MR40F Glacier G61 Classic 60L 71L Dual...

  • Page 8: How To Hitch Your Coupling

    1300 4X4 4X4 How to Hitch your coupling Here is a short guide on how to safely use your coupling to couple and uncouple the trailer from the towing vehicle. Make sure the handbrake is applied prior to coupling and uncoupling.
  • Page 9 1300 4X4 4X4 Make sure the dust cap is securely connected to the bump cover. This is done by locating the rear lip on the dust cap onto the groove of the bump cover and then pushing it in a downward motion until the dust cover is secure (there should be a slight click when it has been assembled correctly) Test if the dust cover is connected to the bump cover by applying a slight upward force to the dust cover, it shouldn’t separate.

  • Page 10: Coupling

    1300 4X4 4X4 Coupling STEP 1 Push down the button (1) and push the locking mechanism back (2). When the locking mechanism (2) is all the way back, release the button (1) locking the plate in place STEP 2 Offer up the tow pin to the coupling making sure the tow pin cover is removed and there is no visible debris on it.
  • Page 11 1300 4X4 4X4 STEP 3 Make sure the tow pin is seated inside the universal and the tow pin top is sticking out of the locking mechanism (see below). Press the button (1) to release the locking mechanism there will be an audible locking noise at which point the mechanism will return to the initial position as shown in step 1.

  • Page 12: Uncoupling

    1300 4X4 4X4 Uncoupling STEP 1 Push down the button 1 and push the locking mechanism back 2. When the locking mechanism is all the way back release the button while holding the mechanism to ensure it does not spring back to the locked position. STEP 2 Lift the coupling up off the tow pin.

  • Page 13: Setting Up Your Caravan

    1300 4X4 4X4 Setting up your Caravan Loading Your Caravan It is important to load your caravan correctly to distribute weight evenly and achieve a suitable ball weight load and prevent loading in a manner that can cause a caravan to sway and/or roll excessively left and right. The optimum ball weight on a caravan is between 9 and 11% of the total caravan weight.

  • Page 14: Setup Video Tutorial

    1300 4X4 4X4 Setup Video Tutorial Scan the code or go to url to view set up tutorial. URL: https://www.youtube.com/watch?v=dRQUHNAjut4&t=36s Choosing a Spot to Set Up When choosing a spot to set up your caravan, start with a flat area with no overhanging trees. Birds and bats occupying trees can defecate leaving droppings on your caravan that can damage paint and leaves and sap can also stain the coating.

  • Page 15: Site Power

    1300 4X4 4X4 Site Power The Projecta charger in your caravan is connected via the 15A exterior socket. To use site power, you will require a 15A power lead connected to a 15A outlet (figure 1). In the event a 15A outlet is unavailable you will need a conversion box that will step up from 10A to 15A with a safety switch.

  • Page 16: Kitchen

    1300 4X4 4X4 Kitchen Before sliding out kitchen, raise the pad bolt and turn to lock in the up position (Fig: 2) Push down blue latch on the slide mechanism and pull kitchen out. (Fig: 2a) When kitchen is extended fit the support leg into its receiver (Fig: 3) Extend support leg and secure locking screw (Fig: 3a) Fig: 3 Fig: 3a...

  • Page 17: Packing Down Your Caravan

    1300 4X4 4X4 Packing Down Your Caravan When packing down your caravan ensure the following: • All gas and electric appliances are turned off • Gas is turned off at the gas bottle • All loose items are secured and unable to move and damage themselves or the caravan •...

  • Page 18: Care Of Paint And Surfaces

    1300 4X4 4X4 Care of Paint and Surfaces Paintwork The paint coatings on your caravan are no different to that of your car in that they need regular care and maintenance. Washing: Only use mild detergents free of ammonia when washing your caravan. Always check the label to ensure the washing solution is nonabrasive, contains no ammonia or caustics.

  • Page 19: Securing Your Caravan

    1300 4X4 4X4 Securing Your Caravan When parked and unhitched you should always use suitable wheel chocks to ensure the trailer can’t move in the event of a handbrake failure. For security a wheel clamp or and hitch lock are highly recommended. Torque Settings Wheel Nuts Wheel nuts should be tightened to correct torque using a torque wrench.

  • Page 20: Hitch

    1300 4X4 4X4 Hitch The high tensile bolts securing your hitch should be tightened to 76Nm. These should be checked at 5000km intervals or 2500km in harsh off-road conditions. Trailing Arm Pivot Bolts The pivot bolts are a high tensile steel. The service interval for these bolts is 5000km under normal use and 2500km for harsh off-road conditions.

  • Page 21: Breakaway Switch

    1300 4X4 4X4 Breakaway Switch By law, all trailers with an ATM of 2000kg or greater must have a “Breakaway System” to halt the trailer in the event it becomes detached from the tow vehicle whilst traveling. Your caravan is fitted with this system with the switch mounted on the drawbar with a steel wire lanyard to connect to your tow vehicle.

  • Page 22: Hand Brake

    1300 4X4 4X4 Hand Brake Parking brakes are mechanically operated by cable means. The cable attachment occurs outside of the brake backing plate. Cable force applied to the parking lever creates a torque through the pivot pin and cam assembly. Torque transferred to the parking cam results in a spreading force between the primary and secondary shoes.

  • Page 23: Correct Use Of Your Electric Brakes

    1300 4X4 4X4 Correct Use of Your Electric Brakes Your trailer brakes are designed to work in synchronisation with your tow vehicle brakes. Never use your tow vehicle or trailer brakes alone to stop the combined load. Your trailer and tow vehicle will seldom have the correct amperage flow to the brake magnets to give you comfortable, safe braking unless you make proper brake system adjustments.

  • Page 24: Magnets

    It is important to replace both shoes on each brake and both brakes of the same axle. This is necessary to retain the “balance” of your brakes. Be sure to replace your shoes only with genuine MDC parts available from our outlets.

  • Page 25: Wheels And Tyres

    MDC accepts no liability for any personal injury, damages or loss as a result of unqualified or untrained persons repairing or altering the electrical systems on this product. If in doubt call your local MDC outlet or phone: 1300 831407...

  • Page 26: Battery Care

    1300 4X4 4X4 Battery Care Your camper is fitted with 100Ah AGM Batteries. Storage type batteries require periodical maintenance to perform at their peak and extend their service life. The following is an outline on how to gain the best performance and lifecycle from the battery fitted in your camper: •...

  • Page 27: 12 Volt Wiring Diagram

    1300 4X4 4X4 12 Volt Wiring Diagram...

  • Page 28: Control Panel

    1300 4X4 4X4 Control Panel 1. Awning & Toilet Power 2. DC Socket Power 3. Stereo, Lights & Roof Vent Light 4. Fridge Compartment Power 5. Water Pump & Tank Gauges 6. Hot Water Heater Igniter Power 7. Oven 8. Spare/Fridge 9.

  • Page 29: Connecting The Gas

    1300 4X4 4X4 Connecting the Gas WARNING: Your caravan is fitted with a gas detector. Check operation of the gas detector each time you use your caravan. Your caravan is fitted with plumbed gas with the regulator and gas bottle placement at the front of the trailer. Always ensure gas bottles are serviceable and within the 10-year service life.

  • Page 30: Toilet Care And Maintenance

    Blue or Aqua Kem Green for better environmental performance. Cleaning Cassette Tank: “Cassette Tank Cleaner” is the recommended product for this application. Flush Water Tank: Only suitable for MDC models that have a toilet flush tank. ***Do not add to main water tanks!*** Thetford recommend “Aqua Rinse”...
  • Page 31 1300 4X4 4X4 Bowl Cleaning Products: For more information go to https://thetford-europe.com/au/en-AU/products#toilet%20care%20products...

  • Page 32: Pre-Trip Checklist

    1300 4X4 4X4 Pre-Trip Checklist Working from a checklist will help avoid forgetting important tasks particularly nin regard to safety. Individual camper set ups may differ depending on tow vehicle and any modifications made by the owner. The table below is for guidance only.

  • Page 33: Wheel Chocks

    1300 4X4 4X4 Wheel Chocks Wheel chocks are an important safety device when leaving your trailer parked on even the slightest incline. On level ground it is recommended to chock both sides of the wheel. On a hill you should chock the wheels on the downhill side ensuring the chocks Covers Hard floor campers and caravans will benefit greatly from a storage cover.

  • Page 34: Modifications

    Body MDC campers and caravans have wires both 240v and 12v as well as plumbing routed through the body frames in our products. Never modify any part of the body without consulting with the manufacturer on the location of these services.

  • Page 35: Trouble Shooting

    1300 4X4 4X4 Trouble Shooting Electrical...

  • Page 36: Water

    1300 4X4 4X4 Water Problem Possible Cause Remedy No power from control panel Check circuit breaker Flat Battery Charge battery Replace pump, Contact dealer for Pump not working (no noise) Faulty pressure switch replacement Check connections with multimeter Bad electrical connection or test light Turn on tap and hold finger over nozzle for 5 seconds and release.

  • Page 37: Brakes

    1300 4X4 4X4 Brakes Problem Possible Cause Remedy Open Circuits Find and correct Severe under adjustments Adjust brakes No Brakes Faulty controller Test and correct/replace Short circuits Find and correct Great or oil on linings or magnets Clean or replace Corroded connection Clean or replace connectors Worn lining or magnets...

  • Page 38: Handy Tips

    1300 4X4 4X4 Handy Tips Driving Off Road Towing your caravan off road adds many dimensions to the driver’s responsibilities and factors to be considered. When travelling remote always carry enough spare parts and supplies to cater for a “worst case scenario.” Always perform preventative maintenance and daily checks.

  • Page 39: Trip Planning

    1300 4X4 4X4 Protecting the environment Remote areas and National Parks are sensitive areas and all precautions should be taken not to damage tracks, interfere with flora and fauna and not to contaminate the area. In sensitive areas it is advisable to use grey water tanks and contained toilets.

  • Page 40: Warranty Statement

    MDC. MDC shall not be liable, (in part or whole) for any warranties, either express or implied, made by agents or resellers on behalf of MDC without the knowledge or express written permission of MDC. Such unauthorised claims shall be the responsibility of the agent or reseller only.
  • Page 41 Goods Bought at Auction From time to time, MDC, may, at its discretion, offer items for auction, either independently or via a third party. Whilst every effort will be made to provide all relevant information regarding the item on auction, as per Australian law, any and all goods bought at auction subsequently do not carry any statutory warranty.
  • Page 42 1300 4X4 4X4 MASTERCLASS Tutorials...

  • Page 43: Maintenance

    1300 4X4 4X4 Maintenance Maintenance is essential to keep your caravan in a safe and usable condition. Caravans are no different to any other motor vehicle and require servicing at regular intervals which may vary according to use and the environment in which it is used.

  • Page 44: Maintenance Schedule

    1300 4X4 4X4 Maintenance Schedule...
  • Page 45 1300 4X4 4X4 500KM FIRST SERVICE CHECKED Hitch Check hitch bolts to 76Nm. Lubricate with high temp bearing grease Handbrake Inspect and adjust handbrake Brakes Inspect and adjust brakes Inspect condition and torque to 125Nm (12mm studs) Wheel nuts (140Nm 14mm studs alloy rims) (200Nm 14mm studs steel rims) Tyres Inspect for abnormal wear, damage and pressure General fixings...
  • Page 46 1300 4X4 4X4 12 MONTHS / 10,000KM SERVICE CHECKED Hitch Inspect for damage and lubricate. Check bolt Torque to 76Nm Jockey Wheel Inspect for condition and operation Hand winch Check brake function and webbing Suspension Lubricate and check bushes for excess movement. Torque bolts to 190Nm Brakes Inspect and adjust.
  • Page 47 1300 4X4 4X4 24 MONTHS / 20,000KM SERVICE CHECKED Hitch Inspect for damage and lubricate. Check bolt Torque to 76Nm Jockey Wheel Inspect for condition and operation Hand winch Check brake function and webbing Suspension Lubricate and check bushes for excess movement. Torque bolts to 190Nm Brakes Inspect and adjust.
  • Page 48 1300 4X4 4X4 36 MONTHS / 30,000KM SERVICE CHECKED Hitch Inspect for damage and lubricate. Check bolt Torque to 76Nm Jockey Wheel Inspect for condition and operation Hand winch Check brake function and webbing Suspension Lubricate and check bushes for excess movement. Torque bolts to 190Nm Brakes Inspect and adjust.
  • Page 49 1300 4X4 4X4 48 MONTHS / 40,000KM SERVICE CHECKED Hitch Inspect for damage and lubricate. Check bolt Torque to 76Nm Jockey Wheel Inspect for condition and operation Hand winch Check brake function and webbing Suspension Lubricate and check bushes for excess movement. Torque bolts to 190Nm Brakes Inspect and adjust.
  • Page 50 1300 4X4 4X4 CHECKED 60 MONTHS / 50,000KM SERVICE Hitch Inspect for damage and lubricate. Check bolt Torque to 76Nm Jockey Wheel Inspect for condition and operation Hand winch Check brake function and webbing Suspension Lubricate and check bushes for excess movement. Torque bolts to 190Nm Brakes Inspect and adjust.

  • Page 51: Dometic

    1300 4X4 4X4 Supplier Contact Details Dometic Thetford Australia https://www.dometic.com/en-au/au/contact-us Address: 41 Lara Way, Campbellfield VIC 3061 Phone: (03) 9358 0700 Email: infoaus@thetford.com.au Cruisemaster Leisure-Tec Australia Pty Ltd (Truma Hot Water) Address: 352B Bilsen Road, Geebung QLD 4034 50 Metrolink Circuit Campbellfield VIC 3061 Phone: (07) 3624 3800 Phone: 1300 072018 Email:...
  • Page 52 1300 4X4 4X4 Wangara Wingfield 70 Distinction Road, Wangara, WA 6065 Grand Jct Rd & South Rd Wingfield SA 5013 Ph: (08) 9303 6900 Ph: (08) 8260 6299 Email: wangara@statewidebearings.com.au Email: wingfield@statewidebearings.com.au Dandenong South Somerton 84 Greens Road, Dandenong South VIC 3175 15-17 Somerton Road, Somerton VIC 3061 Ph: (03) 8710 9777 Ph: (03) 9308 0055...
