Pulsar PSR12012 Manual

•
power output 1,2A/12
•
universal AC input voltage range 90÷264V
•
high efficiency 80%
•
LED optical signalisation
•
standby power <0,3W

1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply CCTV cameras that require stabilised voltage of 12 V DC.
The design enables simple changing of the output voltage, within the range of 12V-15V DC, using a potentiometer.
The unit has a cable with a DC5.5/2.1 plug. When connected to fuse blocks of the LB4/xx/xx or LB8/xx/xx family, the
power supply unit can feed more cameras (max. 4 or 8). The power supply unit is protected against short-circuit,
overload and overvoltage.

1.2. Specifications.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current
Output current t
AMB
Output current t
AMB
Voltage adjustment range
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
Optical signalisation
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Lenght of DC cable
Lenght of AC cable
Storage temperature

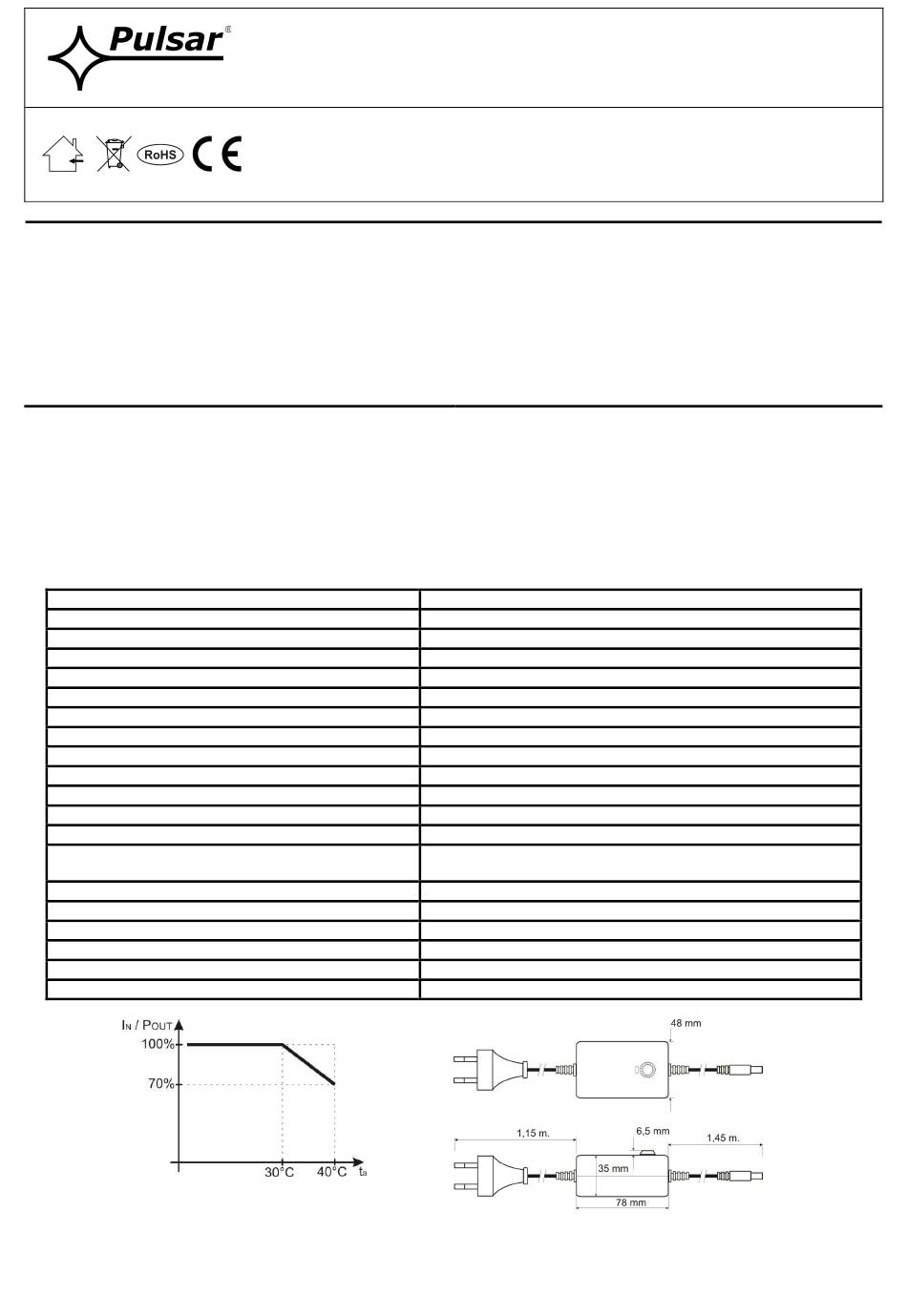

Graph 1.
Relation between output current and ambient
temperature.
Features of the power supply unit:
15VDC
÷
<30° C
=40° C
PSR12012
PSR 12V÷15V /1,2A switch mode
power supply desktop for CCTV
Edition: 3 from 03.09.2013
Supersedes edition: 2 from 22.07.2013
•
efficiency level: V
•
protections:
•
•
•
•
warranty – 2 year from the production date
90 ÷ 264 V AC 50÷60Hz
0,16A@230VAC max.
14,4W max.
80%
12V DC
1,2 A
1,2 A - refer to graph 1.
0,84 A - refer to graph 1.
12 ÷15V DC
100mV p-p max.
electronic, automatic recovery
150-200% of power supply, automatic recovery
LED – presence of DC voltage
o
temperature -10 C÷40
relative humidity 20%...90%, without condensation
78 x 48 x 35 (41,5) [mm]
0,18kg / 0,22kg
II (second)
1,45m + plug DC5,5/2,1 female
1,15m + mains plug
-20ºC...+60ºC
Fig.1. Dimension of power supply.
