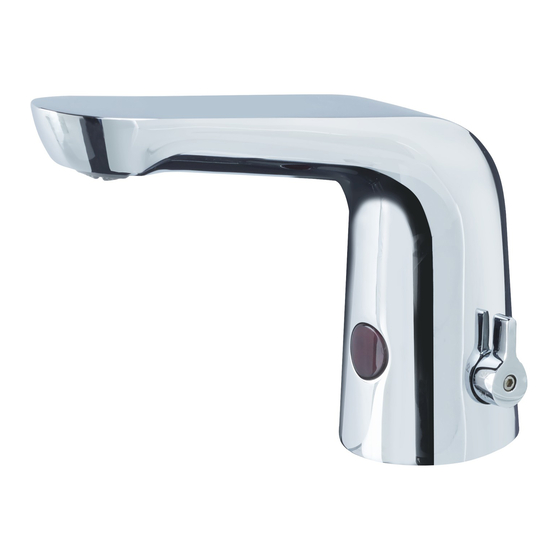

Infrared temperature control automatic basin spout

Advertisement

Quick Links

Installation Instructions
and User Guide
Infrared Temperature
Control Automatic Basin
Spout
Models covered:
IRBS4-BN, IRBS4-BZ, IRBS4-CP
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave them
with the user.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRBS4-BN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bristan IRBS4-BN

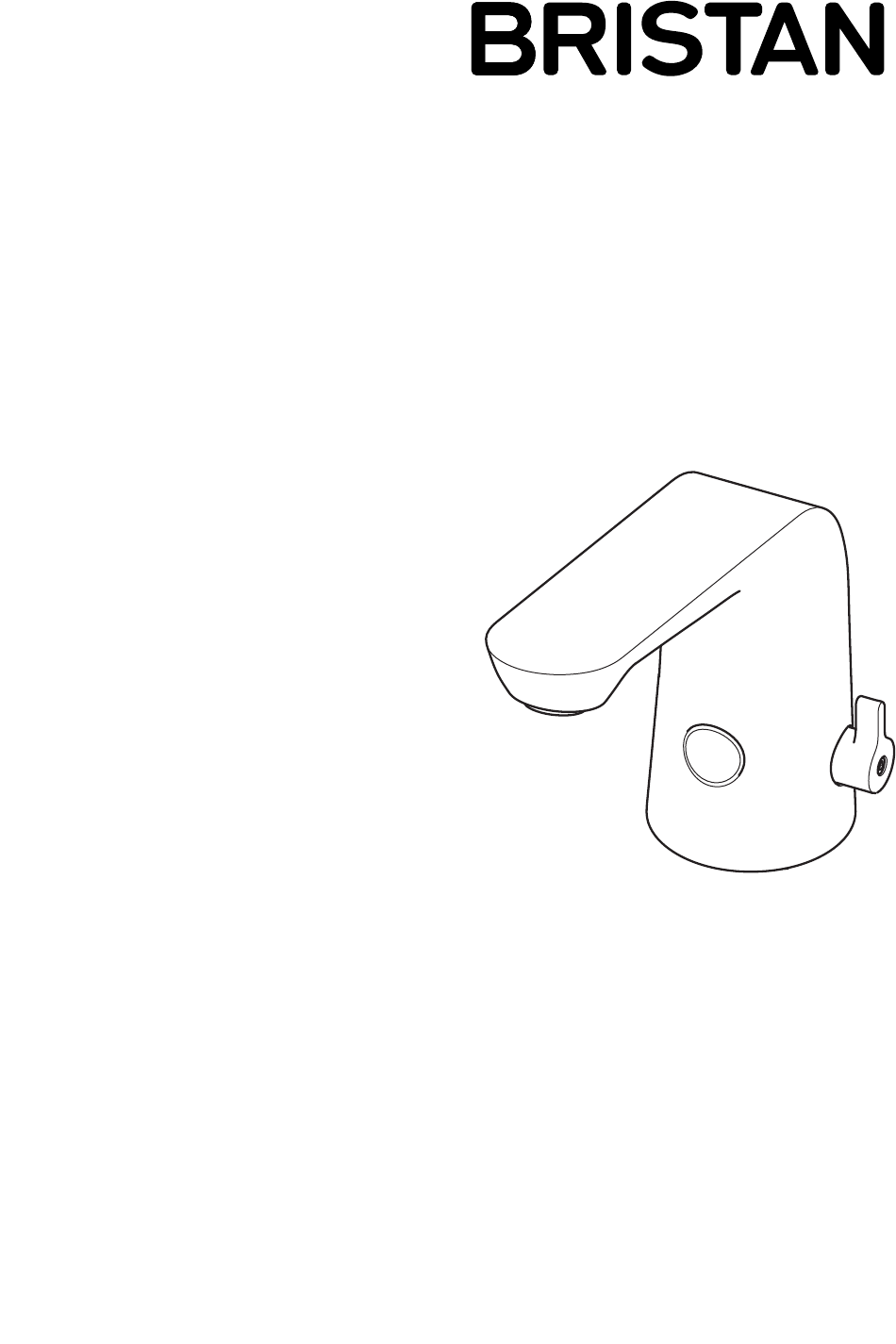

  • Page 1 Installation Instructions and User Guide Infrared Temperature Control Automatic Basin Spout Models covered: IRBS4-BN, IRBS4-BZ, IRBS4-CP Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
  • Page 2: Table Of Contents

    All products manufactured and supplied by Bristan are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected.
  • Page 3: Important Safety Information

    Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified plumber.
  • Page 4: General Information

    General Information Operating pressure range: Minimum 1.0 bar, Maximum 5.0 bar. Maximum static pressure: 10.0 bar. This product has been tested to meet the requirements of the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current byelaws.
  • Page 5: Product Features

    Product features Water Efficient When the users hands enter the sensing range, the indicator light in the sensor will illuminate. Water will flow out immediately until the user draws their hands back from the sensor. The water will automatically stop after a maximum of 30 seconds ±...
  • Page 6: Specification

    Power Consumption: Static 0.3MW Active: Sensing Range: 30-32cm Self-close Override Time: 30 seconds ± 5 seconds Dimensions (mm) ≤≥ IRBS4-BN/BZ/CP 122 149 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
  • Page 7: Installation Requirements

    If the supply cord is damaged, it must be replaced by a genuine Bristan supply cord. The wire which is coloured blue must Contact Bristan Customer Services on be connected to the terminal which is 0844 701 6273 to request new spare parts.
  • Page 8: Installation

    Installation 1. Fit The Spout Fit the spout to the sink / work surface ensuring the sensor cable is threaded through the hole in the sink / work surface. 2. Secure Spout to Sink / Work Surface Thread the rubber washer and metal washer onto the fixing rod up to the underside of the sink / work surface.
  • Page 9: Inserting Batteries

    Installation - Inserting Batteries Inserting Batteries Your infrared spout is supplied with a back up battery pack. In the event of a power failure the batteries will override the mains power supply to ensure the spout continues to function. 1. Insert Batteries Insert 4 x AA batteries into the battery box ensuring they are inserted the correct way.
  • Page 10: Electrical Connections

    Installation - Electrical Connections Connect Power Supply Cable Sensor connector Before starting any electrical work ensure the power supply is Tranformer cable isolated. Wire the electrical power cable into a switched fused spur off the ring main. The blue wire should be wired to the neutral connection and the brown wire should be connected to the live Battery box connector...
  • Page 11: Water Connections

    Installation - Water Connections Flexible Connecting Hose Care must be taken when connecting the See below for recommended ways to fit the flexible connecting hose. flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist.
  • Page 12: Operation

    Operation Using the Automatic Basin Spout Place the users hands under the spout within the sensing range. Once the users hands have been detected water will flow constantly until the hands are removed. After 30 ± 5 seconds the water will stop flowing.
  • Page 13: Maintenance

    Maintenance General Cleaning Cleaning the Inlet Filter Your fitting has a high quality finish and Before carrying out any maintenance, turn should be treated with care to preserve off the mains water supply and close any the visible surfaces. All surfaces will isolating valves.
  • Page 14 Maintenance Disposal and Recycling For more information about where you can drop off your waste End of Product Life equipment for recycling, please contact When this appliance has reached the end your local council office, your household of its serviceable life, it should be waste disposal service or the shop where disposed of in a safe manner, in you purchased the product.
  • Page 15: Troubleshooting

    Water supply not turned on. Turn on water supply and open any isolation / service valves. Solenoid valve not opening. Contact Bristan Customer Services on 0844 701 6273. No mains electrical power to Connect power supply cable. the power supply box.
  • Page 16 Ensure the sensing range is randomly clear. without a user present. Sensor light not Sensor light faulty. Contact Bristan Customer working. Services on 0844 701 6273. Circuit board faulty or has been Contact Bristan Customer allowed to get wet. Services on 0844 701 6273.
  • Page 17: Notes

    Notes Please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
  • Page 18: Guarantee

    Guarantee At Bristan, we want to make things as • Repair under this guarantee does not easy as possible for our customers. extend the original expiry date. The That’s why we design products that are guarantee on any replacement parts or...
  • Page 19 ‘phone or with a spare part, then we’ll guarantee period, contact Bristan Care send out one of our Bristan Care Customer Service on 0844 701 6273 with engineers to take a look. Bristan Care...
  • Page 20 Part Number: FI Infrared Ext. 2 Issue: D1 Useful contact details: Customer Service: 0844 7016273 Bristan Group Ltd. Customer Service Email: Birch Coppice Business Park Customercare@bristan.com Dordon Tamworth Customer Service Fax: Staffordshire 0844 7016275 B78 1SG Reception: Web: www.bristan.com 0844 7016274 Email: enquire@bristan.com...
