- Page 1 Installation Instructions and User Guide Infrared Automatic Basin Spouts Models Covered: IRBS3-CP, IRBS3-BN, IRBS5-CP Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents

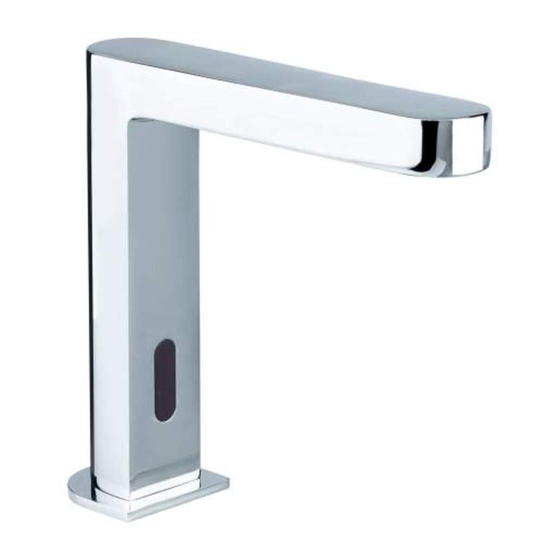

Contents Thank you for choosing Bristan, the UK’s leading showers and taps expert. Your Bristan basin spout has a non-touch control which uses infrared sensing technology to detect human presence. Once detected, the spout instantly dispenses water and automatically stops once the user moves their hands away to eliminate unnecessary water wastage, whilst creating a more hygienic washroom solution. -
Page 3: Important Safety Information
• All products manufactured and no hidden electrical wires, cables or supplied by Bristan are safe provided water supply pipes. This can be checked they are installed, used correctly with the aid of an electronic detector. -
Page 4: Specification
Water Active: <3W Regulations. Sensing Range: If in doubt, contact a registered plumber or your Local Water Authority or the IRBS3-CP/BN: 27-31cm Secretary of The Institute of Plumbing, address as follows;- IRBS5-CP: 15-25cm The Institute of Plumbing, Self-close Override Time: 55 seconds ±... -
Page 5: Product Features
The water will automatically stop after a maximum of 55 seconds ± 5 seconds to avoid wasting water. If more water is required wait 4 seconds and then place IRBS3-CP/BN hands back in the sensing range. More Hygienic Sensor The proximity sensor removes the need... -
Page 6: Dimensions (Mm)
Dimensions (mm) IRBS3-CP/BN G 1/2” G 1/2” IRBS5-CP G 1/2” Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. -
Page 7: Installation Requirements
If the supply cord is damaged, it must be replaced by a genuine Bristan supply The wire which is coloured blue must cord. Contact Bristan Customer Services be connected to the terminal which is on 0330 026 6273 to request new spare marked with the letter ‘N’... -
Page 8: Installation
Installation IRBS3-CP/BN 1. Fit The Spout Fit the spout to the sink / work surface ensuring the sensor cable is threaded through the hole in the sink / work surface. Important: It is advised to ensure that the product is at least... - Page 9 Installation IRBS5-CP 1. Fit The Spout Fit the spout to the sink / work surface ensuring the sensor cable is threaded through the hole in the sink / work surface. Important: It is advised to ensure that the product is at least 360mm away from reflective surfaces to prevent the tap from automatically switching on and off.
- Page 10 Installation Inserting Batteries Your infrared spout is supplied with a back up battery pack. In the event of a power failure the batteries will override the mains power supply to ensure the spout continues to function. Note: If you do not have a mains power supply, this product can run off the battery pack.
-
Page 11: Installation - Electrical Connections
Installation - Electrical Connections 1. Position Power Supply Box Position the power supply box onto the wall surface below the sink/work surface where it is easily accessible. Note: Ensure that the power supply box is fitted the correct way up (see opposite) This way up and that the flexible hose will reach from Inlet... -
Page 12: Installation - Water Connections
Installation - Electrical Connections IRBS5-CP Sensor Calibration Before use the sensor on the IRBS5-CP will need to be calibrated. To calibrate the sensor, press the button location on the side of the Power Supply Box for 3 seconds, and wait for approximately 30 seconds for the sensor to detect the sensing distance. - Page 13 Installation - Water Connections Outlet Connection IRBS3-CP & IRBS3-BN IRBS3-CP & IRBS3-BN The outlet connection on the IRBS3-CP/BN is a standard 1/2” BSP male threaded connection. Connect the spout flexi hose (supplied) to the outlet connection, ensuring it is tightened fully.
-
Page 14: Operation
If the user requires more water remove hands from the sensing range and wait 4 seconds, then place the hands back into the sensing range and the water will flow again. Sensing Range: IRBS3-CP/BN: 27-31cm IRBS5-CP: 15-25cm Maintenance General Cleaning... -
Page 15: Maintenance
Maintenance Cleaning the Inlet Filter Disposal and Recycling Before carrying out any maintenance, End of Product Life turn off the mains water supply and When this appliance has reached the end close any isolating valves. of its serviceable life, it should be disposed of in a safe manner, in In hard water area it may be necessary accordance with current local authority... -
Page 16: Troubleshooting
Connect power supply cable. No mains electrical power to Refer to the ‘Electrical supply box Connections’ section Contact Bristan Customer Solenoid valve not opening Services Connect power supply cable. No mains power to the power Refer to ‘Electrical supply box Connections’... - Page 17 Visability jacket/clothing least 360mm from reflective or when near activate the sensor surfaces Sensor light faulty Contact Bristan Customer Services Circuit board faulty or has been Sensor light not allowed to get wet working Batteries are exhausted Change batteries.
-
Page 18: Notes
