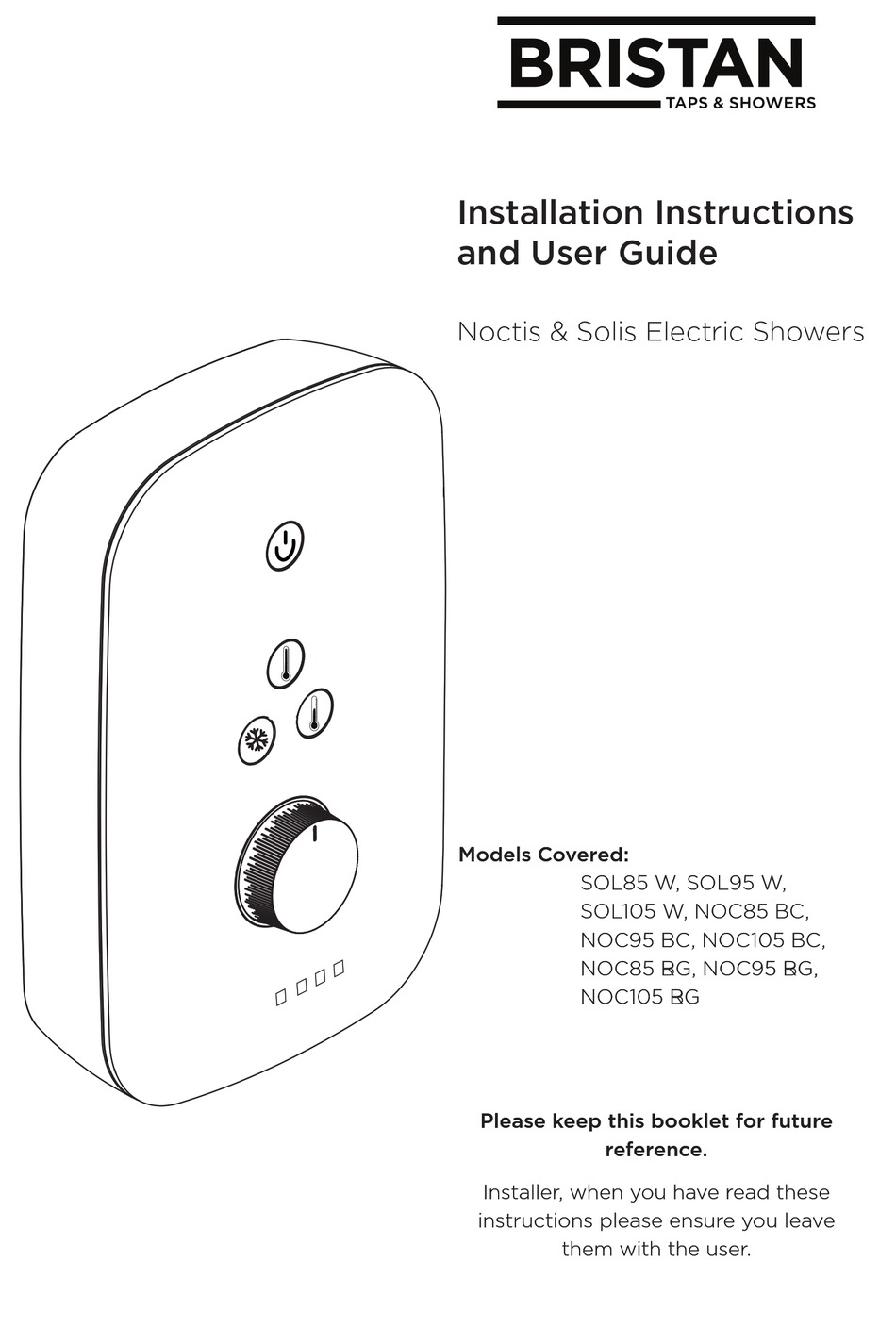

- Page 1 Installation Instructions and User Guide Noctis & Solis Electric Showers Models Covered: Models Covered: SOL85 W, SOL95 W, SOL85 W, SOL95 W, SOL105 W, NOC85 BC, SOL105 W, NOC85 BC, NOC95 BC, NOC105 BC, NOC95 BC, NOC105 BC, NOC85 RG, NOC95 RG,...
-
Page 2: Table Of Contents
Contents Welcome to your new Bristan Electric Shower. Featuring a contemporary design with lots of fun features, Bristan’s electric shower collection has been designed to be enjoyable to fit and to use. It has also been designed and tested in the UK to all of the relevant British Standards. -
Page 3: Important Safety Information
• All products manufactured and relief device (PRD). supplied by Bristan are safe provided they are installed, used correctly • Installations subject to regular and and receive regular maintenance in rapid changes in the water supply accordance with these instructions. -
Page 4: Important Safety Information
Important Safety Information • Always switch off the power at the consumer unit and isolate the electrical supply before making any electrical connections or if you have to remove the cover of an installed unit. • The unit must be mounted on the finished wall surface (usually tiled). -
Page 5: Water Requirements
Water Requirements This fitting needs to be installed in accordance with the following Double pole Installation Requirements and Notes (IRN) to ensure they switch meet the requirements of the Water Supply (Water Fittings) Regulations 1999 and the Scottish Byelaws 2014. The fitting shall be installed so that its outlet discharges above the spill-over level of any fixed appliance as indicted on the illustration Shower... -
Page 6: Electrical Requirements
Electrical Requirements Rating at 240V Rating at 230V The Electrical Installation and Circuit Protection of this shower must comply with current I.E.E Wiring Regulations (BS 7671) and Building Regulations (Part P). We recommend that this product is installed 8.5kW 7.8kW by a qualified electrician prior to use. -
Page 7: Product Features
Product Features 1. Touch Button STOP/START Button Press once to start the shower, press once again to stop the shower. 2. Stand-By Mode indicated by the lit STOP/START Button being on or the lights at the bottom flashing/ showing, denoting the shower is powered and ready to start. -
Page 8: Operating The Shower
Operating the Shower Operating the Controls STOP/START Button Temperature Setting Controls Temperature Adjustment Control Control Type Control Remember Press unlit It is always advisable to test the water temperature with your hand before stepping under the shower. Please note that there is always a delay of a few seconds between you selecting a temperature setting and the selected water STOP/START temperature starting to flow. -
Page 9: Specifications
Why not Visit our Youtube Channel? To see our latest how-to videos, simply scan the QR code with your smart phone or tablet. Alternatively visit www.youtube.com/bristantv Product Fiche Model SOL85 W SOL95 W SOL105 W NOC85 BC/BG NOC95 BC/BG NOC105 BC/BG... -
Page 10: Fixing Your Shower To The Wall
Fixing Your Shower to the Wall Important: Under no circumstances should this shower unit be recessed, tiled up to or sealed around the unit as this may prevent air circulating and any condensation escaping. It must be fitted onto the finished wall surface. -
Page 11: Plumbing Connections
Plumbing Connections The pipe work can enter the shower unit from 6 different positions: Bottom left, Bottom right, Top left, Rear left, Rear right or Rear left - using an elbow. Select the inlet option most suited to your situation. Without Rear Access Bottom left inlet entry Top left inlet entry... -
Page 12: Plumbing Connections
Plumbing Connections The shower unit should come supplied For top left position - Go to Step 3 with the inlet connection set for a bottom left position. In order to change elbow position, unfasten the screw For rear left position - Go to Step 4 securing the inlet connector elbow clamp, remove the tab from the For bottom or rear right positions -... -
Page 13: Electrical Connections
Electrical Connections All cables must conform to the relevant tables within the current I.E.E Wiring Regulations (BS 7671). The electrical supply cable must be either recessed or in a conduit/trunking as detailed in the current I.E.E Wiring Regulations (BS 7671). Refer to page 8. Select the cable inlet option most suited to your situation. -
Page 14: Electrical Connections
Electrical Connections Switch OFF the electricity supply The power cable entry point is shown on the at the consumer unit. diagram. Electrical connections are to be made at the terminal block as follows: • Earth cable to the terminal marked with the Earth symbol •... -
Page 15: Fixing Your Riser Rail To The Wall
Fixing Your Riser Rail to the Wall Position the rail on the wall, bearing Double pole switch in mind the different heights of people likely to use the shower Shower and the length of the hose when unit connected to the shower and Hose 1m minimum passed through the retaining hole in... -
Page 16: Commissioning - Testing The System
Commissioning - Testing the System Warning: Remove the showerhead from the Before using the shower for the first time, it hose and if not already should receive a final flush through and filter attached, attach the clean to remove any remaining debris that may hose to the outlet port be in the pipework or hose and to ensure the and ensure that the... -
Page 17: Maintenance
Maintenance General Cleaning Do not use abrasive cleaners or solvents to clean this unit. The shower unit and accessories should be cleaned with a soft, clean, damp cloth. The hardness of the water in your area will determine how often you should clean your showerhead. -
Page 18: Troubleshooting
Troubleshooting Symptom Likely Cause(s) Action/Remedy Water isolating valve in off position Turn on Outlet hose mesh filter blocked. Remove the outlet hose from the shower, remove mesh filter and clean. No water flow. Filter blocked. Turn off water supply, remove filter and clean. -
Page 19: Spare Parts
Spare Parts Part No. Description Parts List Quantity SOL-COV-W Solis Front Cover including PCBs 1x Assembled Front Cover, 1x Umbilical Cord, 1x Power PCB, 1x Control PCB & 1x Rubber Seal NOC-COV-BC Noctis Front Cover including PCBs 1x Assembled Front Cover, 1x Umbilical Cord, 1x Power PCB, 1x Control PCB &... - Page 20 Spare Parts Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
-
Page 21: Spare Parts
Spare Parts 01/03 Part No. Description Parts List 1408A0A Riser Rail End Cap Riser Rail End Cap x1 1408A0A RG Riser Rail End Cap Rose Gold Riser Rail End Cap x1 1406A0A Wall Bracket Ass. Wall Brackets x2, Wall Bracket End Caps x2, Screws x2, Wall Plugs x2 1406A0A RG Wall Bracket Ass. -
Page 22: Notes
Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. -
Page 23: Notes
Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. - Page 24 Email: enquire@bristan.com A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
Need help?
Do you have a question about the SOL85 W and is the answer not in the manual?
Questions and answers

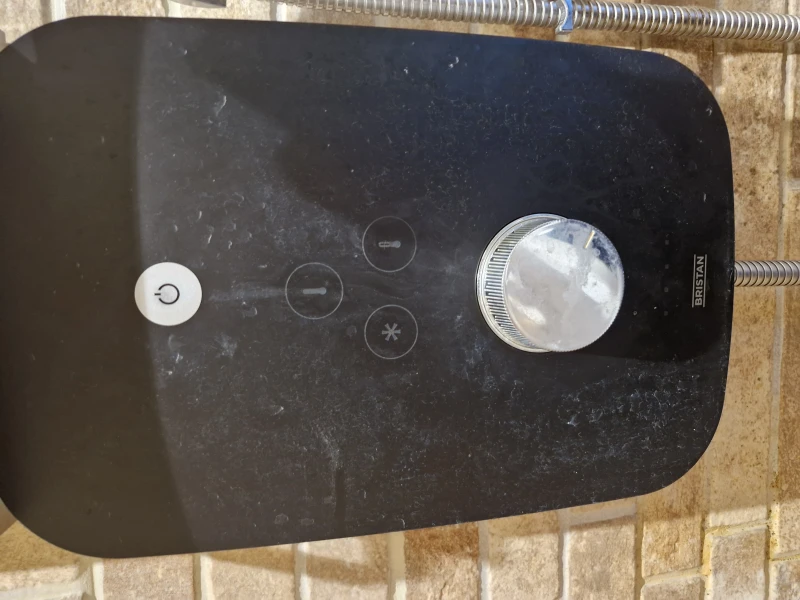

Why does the temp contril light come on andcthe water get cold while I am using the shower. Touching the "snowflake" button does nothing.
