Summary of Contents for Bristan Cheer CHE85 W

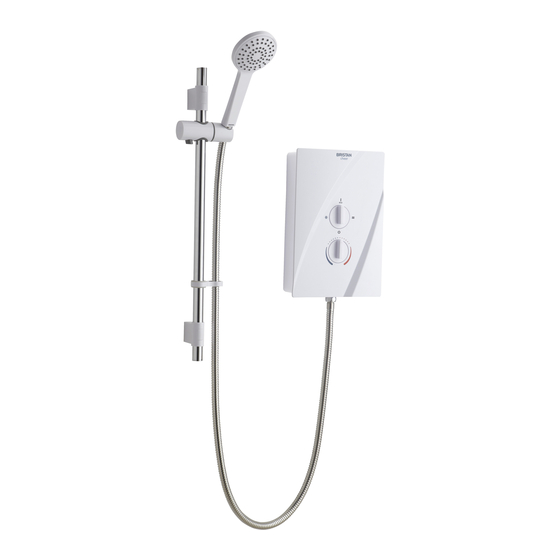

- Page 1 Installation Instructions and User Guide Cheer Electric Shower Models Covered: CHE85 W, CHE95 W Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Welcome to your new Bristan Electric Shower. Featuring a contemporary design with lots of fun features, Bristan’s electric shower collection has been designed to be enjoyable to fit and to use. It has also been designed and tested in the UK to all of the relevant British Standards. -
Page 3: Important Safety Information
• All products manufactured and relief device (PRD). supplied by Bristan are safe provided they are installed, used correctly • Installations subject to regular and and receive regular maintenance in rapid changes in the water supply accordance with these instructions. - Page 4 Important Safety Information • Always switch off the power at • Fit only shower heads recommended by the manufacturer. You must not the consumer unit and isolate the electrical supply before making any fit a “water saving” handset (whereby electrical connections or if you have the flow of water can be restricted or to remove the cover of an installed turned off) to the shower, otherwise...
-
Page 5: Product Features
Product Features 1. Power Control STOP ( ) and adjustable power settings: Cold ( ), Medium (eco ) and High ( ). 2. Temperature Control Adjustable temperature control. Temperature Control Device The Temperature Control Device will activate when the temperature is set too high and the water inside the water heater gets too hot. -
Page 6: Specification
Specification Specification Recommended Usage Plumbing Connections Heavy Domestic Commercial Inlet connection: 15mm Push fit Outlet connection: 1/2” BSP male threaded Light Commercial Health Care Water inlet entry points Left hand side: Top, Bottom, Rear (bottom) Product Fiche Right hand side: Bottom, Rear (bottom) Operating Pressures Model CHE85 W... -
Page 7: Electrical Requirements
Electrical Requirements Warning: This appliance MUST be earthed! Rating at 240V Rating at 230V 8.5kW 7.8kW 9.5kW 8.7kW Isolating Double pole valve switch The Electrical Installation and Circuit Protection of this shower must comply with current I.E.E Wiring Regulations (BS 7671) and Building Regulations (Part P). We recommend that this product is installed by a qualified electrician prior to use. - Page 8 Electrical Requirements It is a requirement that a residual current device (RCD) formerly known as an earth leakage circuit breaker (ELCB) with a tripping current of 30mA, is incorporated in the circuit. This may be part of the existing consumer unit or a separate unit. For close circuit protection DO NOT use a rewireable fuse.
-
Page 9: Water Requirements
Water Requirements This fitting needs to be installed in accordance with the following Installation Requirements and Notes (IRN) to ensure they meet the requirements of the Water Supply (Water Fittings) Regulations 1999 and the Scottish Bylaws 2004. The fitting shall be installed so that its outlet discharges above the spill-over level of any fixed appliance as indicted on the illustration below. -
Page 10: Fixing Your Shower To The Wall
Fixing Your Shower to the Wall Warning: Please check for any hidden pipes and Remove cover screws cables before drilling holes in the wall. Remove the 4 cover retaining screws and lift off the cover. Do not try to remove the control knobs from the cover. They are an integral part of the cover and must not be removed. -
Page 11: Plumbing Connections
Plumbing Connections Inlet Entry Options Select the inlet option most suited to your situation. Bottom left inlet entry Bottom right inlet entry Top left inlet entry Rear left inlet entry - Rear right inlet entry - Rear left inlet entry - requiring rear access requiring rear access using a 15mm compression... - Page 12 Plumbing Connections Warning: The outlet of the shower acts as a vent and must not be blocked, restricted or connected to any tap/closure device other than the handset supplied. Do not solder within 300mm of the shower unit or allow solder or flux to fall onto the casings.
- Page 13 Plumbing Connections Hole Cover Fitting Back of unit Top left entry: Depending on your choice of cold-water entry direction, you may need to remove thin areas of plastic cover to facilitate pipe work entry down through the top left of the unit. Bottom entry: Depending on your choice of cold-water entry direction, fit ‘hole covers’...
-
Page 14: Electrical Connections
Electrical Connections Warning: This appliance and all connecting metal pipe work must be earthed. • Ensure that an earth continuity conductor is securely and permanently connected to all exposed metal parts of other services and appliances within the room where the shower is installed. All cables must conform to the relevant tables within the current I.E.E Wiring Regulations (BS 7671). - Page 15 Electrical Connections Electrical Connection Entry Point Options - continued Alternatively, if preferred, it is possible to route the cable from the rear bottom right or bottom right positions as shown below by stripping the sheath back further. Select the cable inlet option most suited to your situation. Rear bottom ...
- Page 16 Electrical Connections Switch OFF the electricity supply at the consumer unit. The power cable entry point is shown on the diagram. Electrical connection to be made at the terminal block as follows: Earth cable to the terminal marked with the Earth symbol Neutral cable to the terminal marked N Live cable to the terminal marked L Important: Terminals must be fully tightened onto the...
-
Page 17: Fitting Your Riser Rail To The Wall
Fitting Your Riser Rail to the Wall Fitting the Riser Rail Before proceeding with fitting the rail, identify each of the items supplied using the illustration on the right. The Slider should not be removed from the rail during fitting. The underside of the slider has a button to release the slider Large hole and allows the height to be adjusted. -
Page 18: Commissioning - Testing The System
Commissioning - Testing the System Warning: Before using the shower for the first time, it should receive a final flush through to remove any remaining debris that may be in the pipe work or hose and to ensure the heater unit contains water before the electrical elements are switched on. -
Page 19: Operating The Shower
Operating the Shower Please ensure the commissioning procedure has been carried out. If you did not fit this shower yourself and you are about to use it for the first time, check with the installer to ensure he or she has run the commissioning procedure as described on page 18. -
Page 20: Maintenance
The shower unit and accessories should be cleaned with a soft, clean, damp cloth. Bristan recommend E-cloth for cleaning all of our bathroom and Kitchen products. Using just water, E-cloth gives smear free, deep clean by breaking up and holding dirt, which normal cloths leave behind. -
Page 21: Troubleshooting
Troubleshooting Symptom Likely Cause(s) Action/Remedy Water isolating valve in off position. Turn on. Filter blocked. Turn off water supply, remove filter and clean. No water flow. Outlet hose mesh filter blocked. Remove the outlet hose from the shower, remove mesh filter and clean. -
Page 22: Guarantee
Bristan use and the remaining information helps us also be levied on cancelled appointments, unless to make products for the future. advised to Bristan at least 24 hours in advance of the agreed date and time. Should a complaint arise, products are guaranteed... -
Page 23: Spare Parts
Spare Parts Please visit: www.bristan.com/search, and search for your product code in order to find spare parts for this product. Part No. Description Parts List Quantity 131-100-S-85 Stabiliser Valve Ass. 8.5 kW Stabiliser Valve x1, inc. O-rings x3 131-100-S-95 Stabiliser Valve Ass. 9.5 kW Stabiliser Valve x1, inc. - Page 24 Spare Parts Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
- Page 25 Spare Parts 01/03 01/03 Part No. Description Parts List Quantity 1408A0A Riser Rail End Cap Riser Rail End Cap x1 1406A0AW Wall Bracket Ass. Wall Brackets x2, Wall Bracket End Caps x2, Screws x2, Wall Plugs x2 207042 Riser Rail Ass. Riser Rail x1, Riser Rail End Caps x2 1625A0AW Slider/Handset Holder...
-
Page 26: Notes
Notes Please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. - Page 27 Notes Please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
- Page 28 Email: enquire@bristan.com A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
