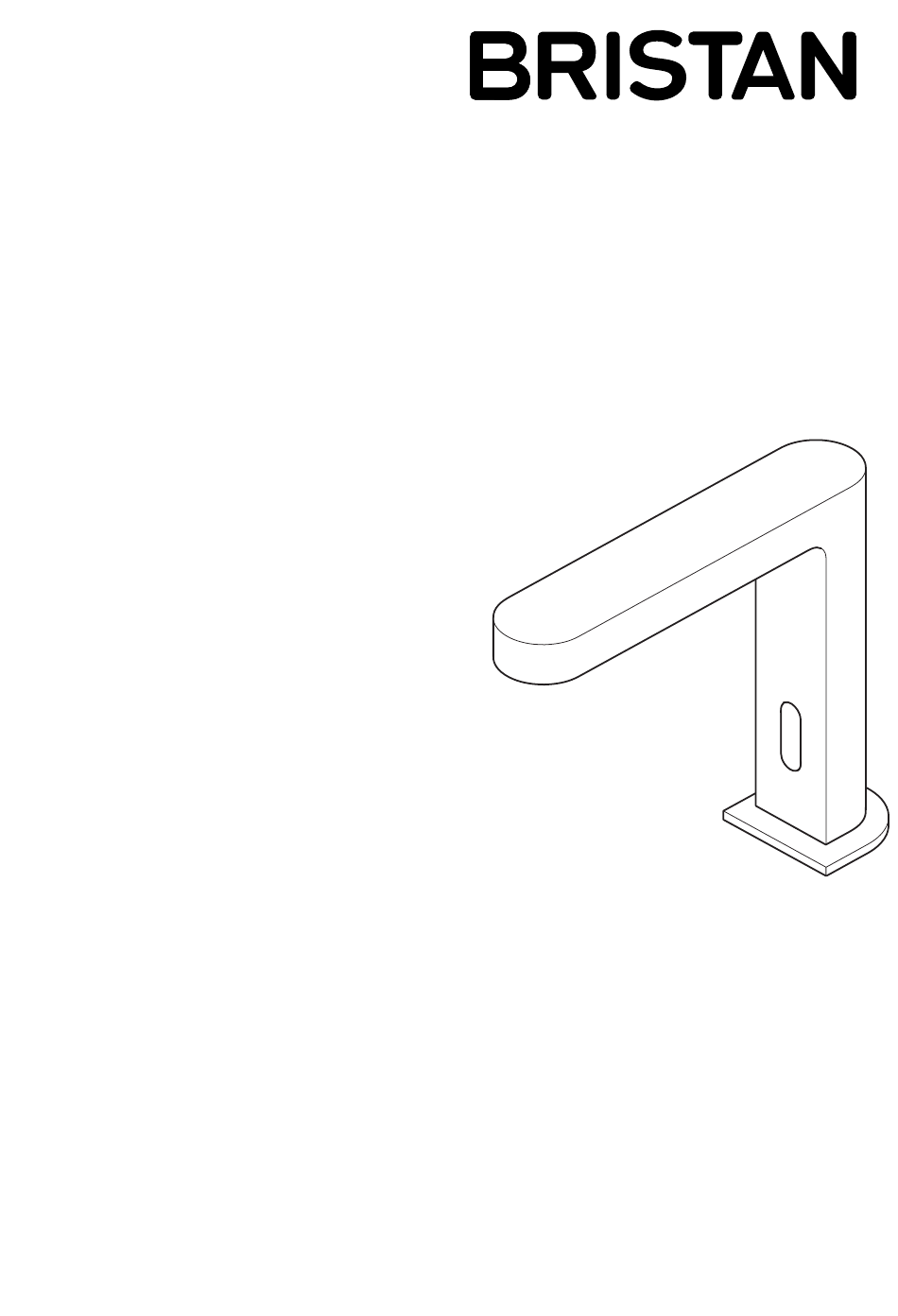

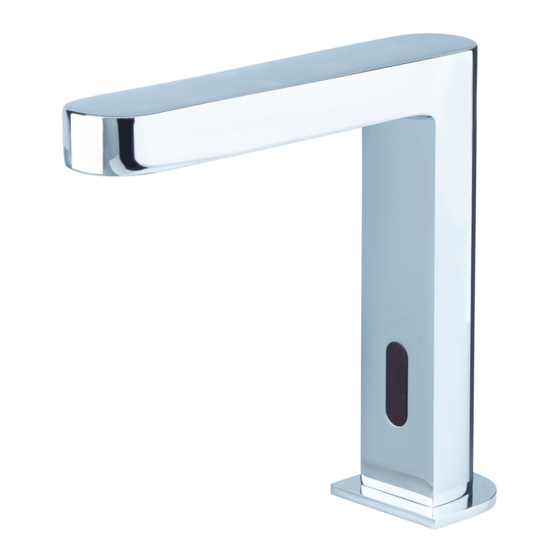

- Page 1 Installation Instructions and User Guide Infrared Automatic Basin Spouts Models covered: IRBS3-BN, IRBS3-BZ, IRBS3-CP, IRBS5-CP Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
All products manufactured and supplied by Bristan are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified plumber. -
Page 4: General Information
General Information Operating pressure range: Minimum 1.0 bar, Maximum 5.0 bar. Maximum static pressure: 10.0 bar. This product has been tested to meet the requirements of the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current byelaws. -
Page 5: Product Features
The water will automatically stop after a maximum of 55 seconds ± 5 seconds IRBS3-BN/BZ/CP to avoid wasting water. If more water is required wait 4 seconds and then place hands back in the sensing range. -
Page 6: Specifications
Specifications Specifications for IRBS3-BN/BZ/CP Power Supply Box Inlet Connection: G1/2. Power Supply Box Outlet Connection: G1/2” Operating Pressure Range: Min. 1.0 Bar - Max. 5.0 Bar Maximum Static Pressure: 10 Bar Inlet Water Supply Temperature Range: 5ºC - 45ºC Power Supply: AC: 220V-240V; 50/60HZ DC: 6V (4 x AA alkaline batteries - Not Supplied) Power Consumption: Static <0.3MW... -
Page 7: Dimensions
Dimensions (mm) IRBS3-BN/BZ/CP IRBS5-CP Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. - Page 8 Dimensions Cont. Power Supply Box IRBS3-BN/BZ/CP IRBS5-CP G1/2 G1/2 G1/2 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
-
Page 9: Installation Requirements
If the supply cord is damaged, it must be as follows;- replaced by a genuine Bristan supply cord. Contact Bristan Customer Services on The wire which is coloured blue must 0844 701 6273 to request new spare parts. -
Page 10: Installation
Installation - IRBS3-BN/BZ/CP 1. Fit The Spout Fit the spout to the sink / work surface ensuring the sensor cable is threaded through the hole in the sink / work surface. Important: It is advised to ensure that the product is at least 360mm away from reflective surfaces to prevent the tap from automatically switching on and off. -
Page 11: Irbs5-Cp
Installation - IRBS5-CP 1. Fit The Spout Fit the spout to the sink / work surface ensuring the sensor cable is threaded through the hole in the sink / work surface. Important: It is advised to ensure that the product is at least 360mm away from reflective surfaces to prevent the tap from automatically switching on and off. -
Page 12: Inserting Batteries
Installation - Inserting Batteries Inserting Batteries Your infrared spout is supplied with a back up battery pack. In the event of a power failure the batteries will override the mains power supply to ensure the spout continues to function. Before fitting the power supply box into position on the wall / floor, batteries (not included) will need to be fitted. -
Page 13: Electrical Connections
Installation - Electrical Connections 1. Position Power Supply Box Position the power supply box onto the wall surface below the sink / work surface where it is easily accessible. Note: Ensure that the power supply box is fitted the correct way up (see opposite) and that the flexible This way up hose will reach from the underside of the spout to the Inlet... -
Page 14: Water Connections
Outlet Connection IRBS5-CP IRBS3-BN/BZ/CP The outlet connection on IRBS3-BN/ BZ/CP is a standard 1/2” BSP male threaded connection. Connect the flexi hose (supplied) to the outlet connection, ensuring it is tightened fully. - Page 15 Installation - Water Connections Flexible Connecting Hose Care must be taken when connecting the See below for recommended ways to fit the flexible connecting hose. flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist.
-
Page 16: Operation
Note: The sensing range for all models: 27-31cm for IRBS3-BN/BZ/CP and 15-25 cm for IRBS5-CP from the sensor. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 17: Maintenance
Maintenance Cleaning the Inlet Filter General Cleaning Your fitting has a high quality finish and Before carrying out any maintenance, turn should be treated with care to preserve off the mains water supply and close any the visible surfaces. All surfaces will isolating valves. - Page 18 Maintenance Disposal and Recycling For more information about where you can drop off your waste End of Product Life equipment for recycling, please contact When this appliance has reached the end your local council office, your household of its serviceable life, it should be waste disposal service or the shop where disposed of in a safe manner, in you purchased the product.
-
Page 19: Troubleshooting
Water supply not turned on. Turn on water supply and open any isolation / service valves. Solenoid valve not opening. Contact Bristan Customer Services on 0844 701 6273. No mains electrical power to Connect power supply cable. the power supply box. - Page 20 Ensure the sensing range is randomly clear. without a user present. Sensor light not Sensor light faulty. Contact Bristan Customer working. Services on 0844 701 6273. Circuit board faulty or has been Contact Bristan Customer allowed to get wet. Services on 0844 701 6273.
-
Page 21: Notes
Notes Please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 22: Guarantee
Guarantee At Bristan, we want to make things as • Repair under this guarantee does not easy as possible for our customers. extend the original expiry date. The That’s why we design products that are guarantee on any replacement parts or... - Page 23 ‘phone or with a spare part, then we’ll guarantee period, contact Bristan Care send out one of our Bristan Care Customer Service on 0844 701 6273 with engineers to take a look. Bristan Care...
