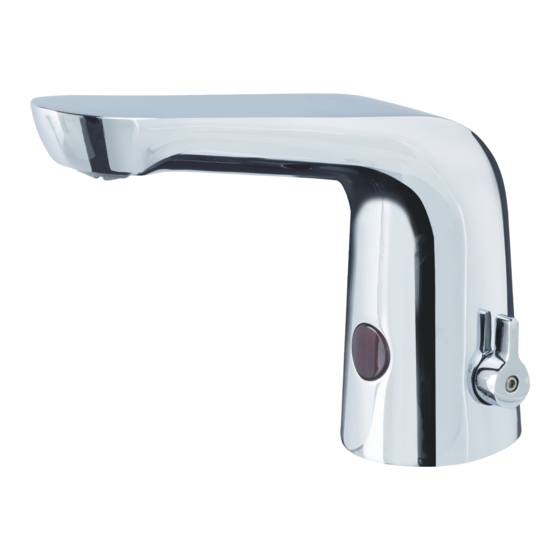

- Page 1 Installation Instructions and User Guide Infrared Temperature Control Automatic Basin Spout Models Covered: IRBS4-CP, IRBS4-BN Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading showers and taps expert. Your Bristan basin spout has a non-touch control which uses infrared sensing technology to detect human presence. Once detected, the spout instantly dispenses water and automatically stops once the user moves their hands away to eliminate unnecessary water wastage, whilst creating a more hygienic washroom solution. -
Page 3: Important Safety Information
• All products manufactured and no hidden electrical wires, cables or supplied by Bristan are safe provided water supply pipes. This can be checked they are installed, used correctly with the aid of an electronic detector. -
Page 4: Specification
Specification This product has been tested to meet the Operating Pressure Range: requirements of the Water Regulations Min. 1.0 Bar - Max. 5.0 Bar Advisory Scheme (WRAS) and satisfies Maximum Static Pressure: 10 Bar the requirements of the Water Supply (Water Fittings) Regulations 1999 and Inlet Water Supply Temperature Range: current byelaws. -
Page 5: Product Features
Product Features Water Efficient When the users hands enter the sensing range, the indicator light in the sensor will illuminate. Water will flow out immediately until the user draws their hands back from the sensor. The water will automatically stop after a maximum of 30 seconds ±... -
Page 6: Installation Requirements
If the supply cord is damaged, it must connection unit proceed as follows;- be replaced by a genuine Bristan supply cord. Contact Bristan Customer Services The wire which is coloured blue must on 0330 026 6273 to request new spare be connected to the terminal which is parts. -
Page 7: Installation
Installation 1. Fit The Spout Fit the spout to the sink / work surface ensuring the sensor cable is threaded through the hole in the sink / work surface. Also ensure that the product is at least 360mm away from reflective surfaces to prevent the tap from automatically switching on and off. -
Page 8: Installation - Electrical Connections
Installation - Electrical Connections Connect Power Supply Cable Sensor Transformer cable connector Before starting any electrical work ensure the power supply is isolated. Wire the electrical power cable into a switched fused spur off the ring main. Battery box The blue wire should be wired to the connector neutral connection and the brown wire should be connected to the live... -
Page 9: Installation - Water Connections
Installation - Electrical Connections Inserting Batteries Your infrared spout is supplied with a back up battery pack. In the event of a power failure the batteries will override the mains power supply to ensure the spout continues to function. 1. Insert Batteries Insert 4 x AA batteries into the battery box ensuring they are inserted the correct way. -
Page 10: Operation
Operation Using the Automatic Basin Spout Place the users hands under the spout within the sensing range. Once the users hands have been detected water will flow constantly until the hands are removed. After 30 ± 5 seconds the water will stop flowing. -
Page 11: Maintenance
Maintenance Disposal and Recycling General Cleaning Your fitting has a high quality finish and End of Product Life should be treated with care to preserve When this appliance has reached the end the visible surfaces. All surfaces will of its serviceable life, it should be wear if not cleaned correctly, the only disposed of in a safe manner, in safe way to clean your mixer is to wipe... -
Page 12: Troubleshooting
Refer to the ‘Electrical Connections’ section. Turn on water supply and open Water supply not turned on. any isolation/service valves. Contact Bristan Customer Spout does Solenoid valve not opening. Services. not operate e.g no water Connect power supply No mains electrical power to the flow. - Page 13 Ensure that the product is at least without a user Visibility jacket/clothing activate 360mm from reflective surfaces. present. the sensor. Sensor light faulty. Contact Bristan Customer Sensor light Circuit board faulty or has been Services. not working. allowed to get wet. Batteries are exhausted.
-
Page 14: Notes
Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. - Page 15 Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
- Page 16 A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
