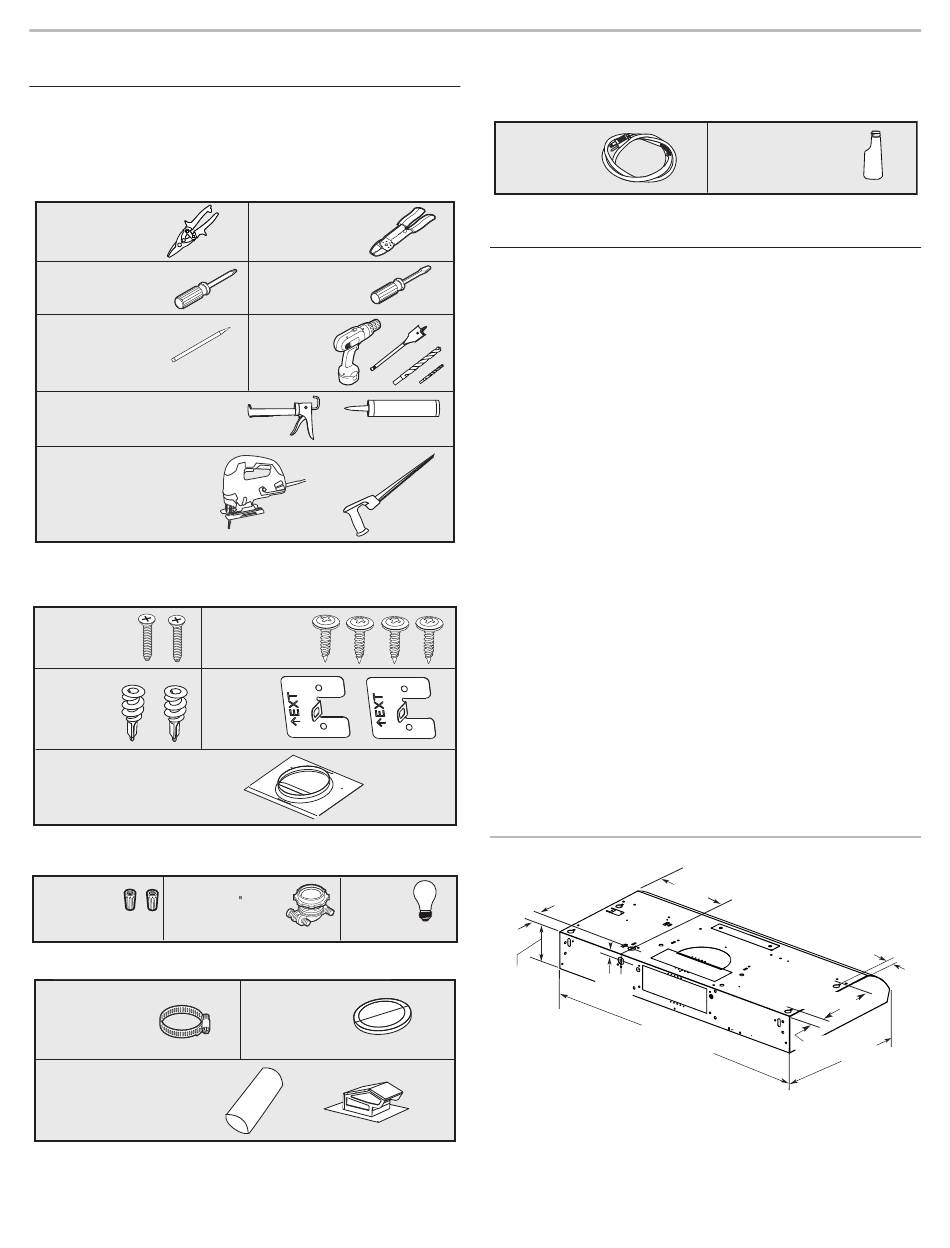

Tools and Parts
Gather the required tools and parts before starting
installation. Read and follow the instructions provided
with any tools listed here.
Caulking gun and weatherproof
Jigsaw or keyhole saw
Remove parts from package. Check that all parts are included.
#8-18 x 1"
(4.2 x 25 mm)
7" (17.8 cm) round vent
Part Number W10388168*
(13 mm) strain relief
For 7" (17.8 cm) round vented installations
Vent clamps as
7" (17.8 cm) round
metal vent system with
wall or roof cap
Drill with 1/8"
(3 mm), 1/2"
(3 cm) bits
#8-18 x 5/8"
(4.2 x 16 mm)
120 V, 75 W
7" (17.8 cm)
* For information on ordering, see the "Assistance or Service"
IMPORTANT: Observe all governing codes and ordinances.
It is the installer's responsibility to comply with installation
clearances specified on the model/serial/rating plate.
The model/serial/rating plate is located inside the range
hood on the left wall.
Range hood location should be away from strong draft
areas, such as windows, doors, and strong heating vents.
Cabinet opening dimensions that are shown must be
used. Given dimensions provide minimum clearance.
Consult the cooktop/range manufacturer installation
instructions before making any cutouts.
This range hood is recommended for use with cooktops
with a maximum total rating of 40,000 BTUs or less.
Grounded electrical outlet is required. See "Electrical
All openings in ceiling and wall where range hood will
be installed must be sealed.
These range hoods are factory set for vented installations.
Models that are capable of being installed as non-vented
(recirculating) require charcoal filters. See the "Assistance or
Service" section for information on ordering charcoal filters.
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards, Title
24 CFR, Part 328 (formerly the Federal Standard for Mobile
Home Construction and Safety, title 24, HUD, Part 280),
or when such standard is not applicable, the standard for
Manufactured Home Installation 1982 (Manufactured Home
Sites, Communities and Setups) ANSI A225.1/NFPA 501A
or latest edition, or with local codes.
29¹⁵⁄₁₆" (76.0 cm)
Stainless steel cleaner
Part Number 31462A*
6⁹⁄₁₆" (16.7 cm)
