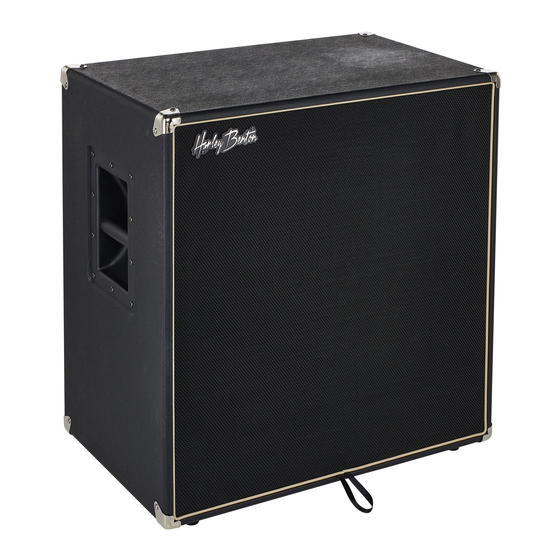

- Page 1 BB410T bass cabinet user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 06.03.2018, ID: 328700...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features................................9 Installation and starting up........................ 10 4.1 Pin assignment..........................11 Connections and operating elements................... 12 Technical specifications........................14 Protecting the environment......................15 BB410T... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid- ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 7 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 8 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. bass cabinet...
-
Page 9: Features
Features Features Special features of this powerful bass cabinet: Inputs: 2 × lockable NL4 sockets, 2 × 1/4" phone sockets Power handling: 500 Watt @ 8 Ω Cabinet with felt cover and edge protection Transport casters BB410T... -
Page 10: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 11: 4.1 Pin Assignment
Installation and starting up 4.1 Pin assignment 1/4" sockets for signal inputs Drawing and table indicate the pin assignment of a 1/4" TS phone jack to be used. Signal Ground, shielding NL4 inputs The drawing alongside shows the pin assignment of the NL4 inputs (1+/1–). BB410T... -
Page 12: Connections And Operating Elements
Connections and operating elements Connections and operating elements bass cabinet... - Page 13 Connections and operating elements 1 INPUT A/B 2 × 1/4" phone sockets. 2 INPUT A/B 2 lockable NL4 inputs (1+/1–). 3 HF horn attenuator Use this control to attenuate the HF horn in a range of MIN (HF horn off) and MAX (no attenuation of high frequencies).
-
Page 14: Technical Specifications
Technical specifications Technical specifications System Passive bass cabinet Speakers 4 × 10" woofer, adjustable HF horn Power handling 500 Watt 8 Ω Impedance Frequency response 40 Hz … 17 kHz SPL (1 m) 102 dB Dimensions (W × H × D) 586 mm ×... -
Page 15: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate- rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 16 Notes bass cabinet...
- Page 17 Notes BB410T...
- Page 18 Notes bass cabinet...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
