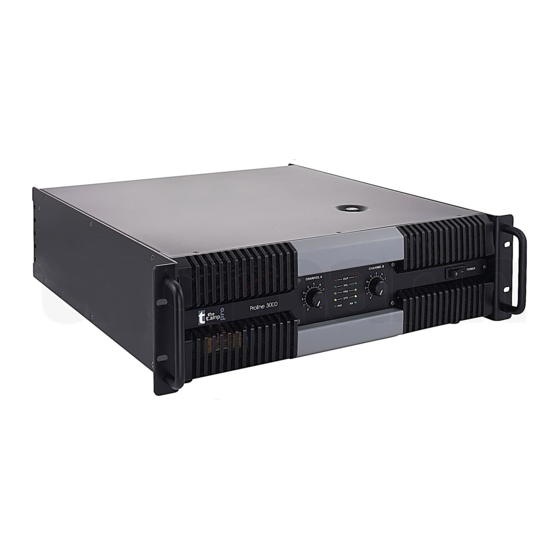

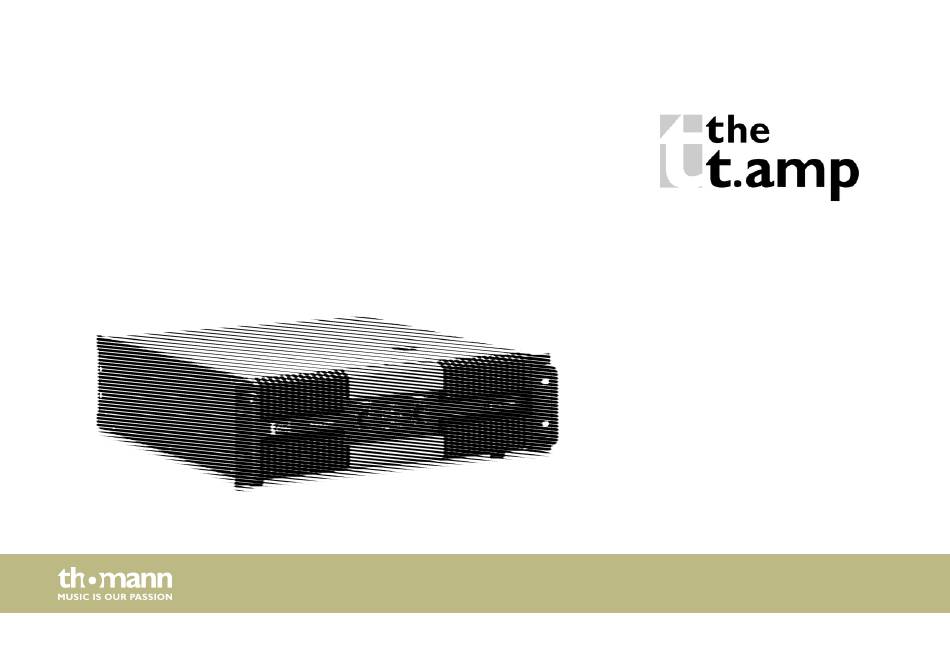

- Page 1 Proline 3000 power amplifier user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 06.06.2018, ID: 168990 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Installation and starting up........................ 13 Connections and controls........................17 Technical specifications........................22 Plug and connection assignment....................24 Cleaning............................... -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device amplifies electric audio frequency signals to operate passive speakers. Use the device only as described in this user manual. Any other use or use under other operating con- ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
- Page 10 Safety instructions CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 11 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
- Page 12 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 13: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 14 Installation and starting up CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans- port and installation. NOTICE! Magnetic fields The device generates strong magnetic fields that can interfere with the function of poorly shielded devices.
- Page 15 Installation and starting up Possible operation modes Depending on the individual application, the amplifier can be used in different operation modes: Stereo mode The two amplifier channels operate independently of one another, either channel (A and B) is amplified and connected to loudspeakers, the volume can be controlled separately for the two outputs.
- Page 16 This means, for example with two speakers with the same impedance: In series connection, impedance is doubled. In parallel connection, it's halved. Detailed information on this topic can be found in our online guide ‘Speakers’ (www.thomann.de). power amplifier...
-
Page 17: Connections And Controls
Connections and controls Connections and controls Front panel Proline 3000... - Page 18 Connections and controls 1 [POWER] Power on/off switch. Turns the device on and off. 2 [CHANNEL A ]/ [CHANNEL B] Volume control for the respective channel 3 LED panel [CLIP] Lights under the following conditions: Channel overdrive. In this case, reduce the volume until the LED turns off. Short-circuit at the output.
- Page 19 Connections and controls [PRO] Lights under the following conditions: Three to five seconds after turning on or off when the device is in an unstable state. The temperature of the amplifier blocks has reached 85°C. One or more protection circuits have been triggered or the device is defective. [STR] Lights when the device is operated in stereo mode.
- Page 20 Connections and controls Rear panel 4 XLR mounting socket for the input signal in channel A 5 1/4" phone socket for the input signal in channel A 6 XLR mounting socket for the input signal in channel B 7 1/4" phone socket for the input signal in channel B power amplifier...
- Page 21 Connections and controls 8 Selector switch for operating mode [PAR]: Parallel mode [STR]: Stereo mode [BR]: Bridged mode 9 Ground/Lift switch If hum is caused by a ground loop, you can use this switch to disconnect the connection between the earth pin of the device and the signal ground of the device.
-
Page 22: Technical Specifications
Technical specifications Technical specifications Output power Stereo, 8 Ω: 2 × 1100 W Stereo, 4 Ω: 2 × 1500 W Stereo, 2 Ω: 2 × 1800 W Bridged, 8 Ω: 3000 W Bridged, 4 Ω: 3600 W Parallel, 8 Ω: 2 × 1100 W Parallel, 4 Ω: 2 ×... - Page 23 Technical specifications Crosstalk at rated power @ 8 Ω, 1 kHz > 70 dB Damping factor > 700 Inputs XLR sockets, 1/4" phone sockets (balanced) Outputs Lockable chassis connector (Speaker Twist) Cooling system Temperature-controlled fan cooling Operating supply voltage 220 – 240 V 50/60 Hz Power consumption (at 50 % of rated output 1550 W...
-
Page 24: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip- ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 25 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter- ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...
- Page 26 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) Speaker Twist chassis connector 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) 2, + Signal 2 (in phase) 2, –...
-
Page 27: Cleaning
Cleaning Cleaning Fan grids The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. Proline 3000... -
Page 28: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate- rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. -
Page 29: Proline
Notes Proline 3000... - Page 30 Notes power amplifier...
- Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
