Summary of Contents for thomann Harley Benton TUBE5 Head

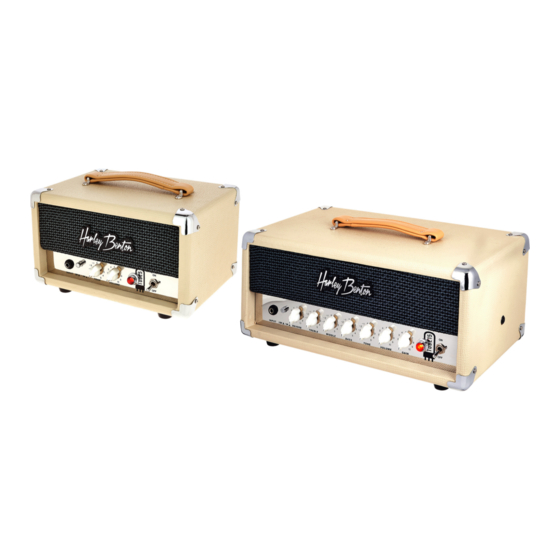

- Page 1 TUBE5 Head, TUBE15 Head Guitar Amp Head...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 26.10.2023, ID: 552841, 552843...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Installation and starting up........................ 11 Connections and operating elements................... 12 Technical specifications........................17 Plug and connection assignment....................21 Protecting the environment......................23 TUBE5 Head, TUBE15 Head Guitar Amp Head... - Page 4 TUBE5 Head, TUBE15 Head Guitar Amp Head...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for the amplification of signals from musical instruments with electromagnetic pickups. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 8 Safety instructions DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death. Do not modify the mains cable or the plug! In case of isolation damage, disconnect immediately the power supply and arrange repair. If in doubt, seek advice from a qualified electrician. WARNING! Possible hearing damage due to high volumes on speakers! With loudspeakers connected, the device can produce volume levels that may cause temporary or permanent hearing impairment.
- Page 9 Safety instructions NOTICE! Damage to the device due to high voltages! The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐ tages can also cause a risk of injury and fires. Make sure that the voltage specification on the device matches the local power grid before plugging in the device.
-
Page 10: Features
Features Features Item no. 552841 TUBE5 Head Output power: 5 watt @ 8 Ω Output for external speaker box Preamp tubes: 1 × ECC83/12AX7 Power tubes: 1 × 6V6GT Class-D power amp Item no. 552843 TUBE15 Head Output power: 15 watt @ 8 Ω Footswitch connector (not included) Output for external speaker box Further connectors: Effects loop... -
Page 11: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 12: Connections And Operating Elements
Connections and operating elements Connections and operating elements Item no. 552841 TUBE5 Head Front panel ö & INPUT TONE VOLUME 1 [INPUT] | 1/4" jack socket to connect an instrument 2 [5W/1W] | toggle switch to switch the output level 3 [TONE] | control to adjust the tone colour of the input signal 4 [VOLUME] | control to adjust the volume 5 Status LED. - Page 13 Connections and operating elements Item no. 552841 TUBE5 Head Rear panel 7 Power cord 8 [EXTERNAL SPEAKER] | 1/4" output socket for connecting an external speaker box (recommended impedance: 8 Ω). TUBE5 Head, TUBE15 Head Guitar Amp Head...
- Page 14 Connections and operating elements Item no. 552843 TUBE15 Head Front panel ö & INPUT REVERB TREBLE MIDDLE BASS TONE VOLUME GAIN TUBE5 Head, TUBE15 Head Guitar Amp Head...
- Page 15 Connections and operating elements 1 [INPUT] | 1/4" jack socket to connect an instrument 2 [15W/1W] | toggle switch to switch the output level 3 [REVERB] | control to adjust the intensity of the reverb effect 4 [TREBLE] | control to adjust the high frequencies 5 [MIDDLE] | control to adjust the mid frequencies 6 [BASS] | control to adjust the low frequencies 7 [TONE] | control to adjust the tone colour of the input signal...
- Page 16 Connections and operating elements Item no. 552843 TUBE15 Head Rear panel 12 Power cord 13 [REVERB] | 1/4" jack socket to connect a footswitch for enabling or disabling the reverb effect 14 [ RETURN] | 1/4" input socket for looping in an effects processor 15 [ SEND] | 1/4"...
-
Page 17: Technical Specifications
Technical specifications Technical specifications Item no. 552841 TUBE5 Head Amp class Class A Input connections Instruments 1/4" jack socket Output connections External speaker (impedance min. 8 Ω) 1/4" jack socket Input impedance 1 MΩ Output power 5 W (RMS) @ 8 Ω (external speaker) Frequency range 80 Hz…10 kHz Signal-to-noise ratio... - Page 18 Technical specifications Further information Channels Reverb External effects loop Recording output MIDI interface External speaker connector Headphone connection Foot switch connector Incl. foot switch TUBE5 Head, TUBE15 Head Guitar Amp Head...
- Page 19 Technical specifications Item no. 552843 TUBE15 Head Amp class Class AB Input connections Instruments 1/4" jack socket Effect device 1/4" jack socket Optional foot switch 1/4" jack socket Output connections External speaker (impedance min. 8 Ω) 1/4" jack socket Effect device 1/4"...
- Page 20 Technical specifications Ambient conditions Temperature range 0°C…40°C Relative humidity 20 %…80 % (non-condensing) Further information Channels Reverb External effects loop Recording output MIDI interface External speaker connector Headphone connection Foot switch connector Incl. foot switch TUBE5 Head, TUBE15 Head Guitar Amp Head...
-
Page 21: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 22 Plug and connection assignment 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground TUBE5 Head, TUBE15 Head Guitar Amp Head...
-
Page 23: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
- Page 25 Notes TUBE5 Head, TUBE15 Head Guitar Amp Head...
- Page 26 Notes TUBE5 Head, TUBE15 Head Guitar Amp Head...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
