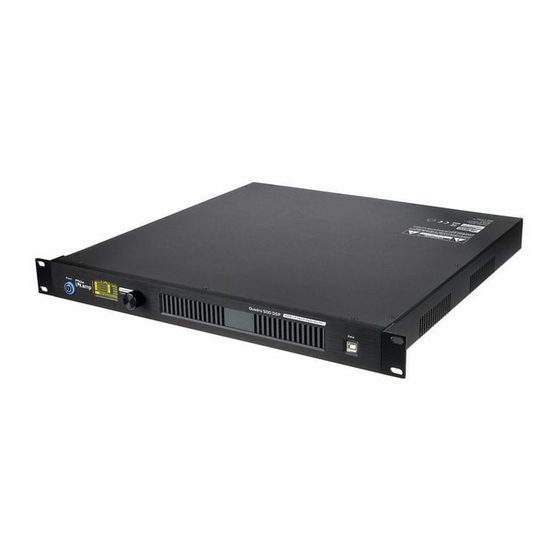

- Page 1 Quadro 500 DSP power amplifier user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 11.07.2018, ID: 438086...
-
Page 3: Table Of Contents
1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 13 Installation..............................14 Connections and controls........................16 Operating..............................20 Technical specifications........................24 Plug and connection assignment....................26 Cleaning............................... 29 Protecting the environment......................30 Quadro 500 DSP... -
Page 4: General Notes
General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’... - Page 7 This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. Quadro 500 DSP...
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device amplifies electric audio frequency signals to operate passive speakers. Use the device only as described in this user manual. Any other use or use under other operating con- ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Always use proper ready-made insulated mains cabling (power cord) with a pro- tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis- tered electrician. Quadro 500 DSP...
- Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 11 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Quadro 500 DSP...
- Page 12 Safety instructions NOTICE! Magnetic fields The device generates strong magnetic fields that can interfere with the function of poorly shielded devices. The strongest magnetic fields are directly above and below the power amplifier. Therefore, never place sensitive devices such as pre- amplifiers, radio transmission systems, or tape decks directly above or below the power amplifier.
-
Page 13: Features
Connections for four signal inputs, designed as XLR sockets Four lockable output sockets (Speaker Twist) Extensive adjustment options allow individual adaptation to different rooms and signal sources USB port for connection to a PC 19" rack-mountable (1 RU) Quadro 500 DSP... -
Page 14: Installation
Installation Installation NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet. - Page 15 Installation Rack mounting The unit has been designed for rack mounting in a standard 19-inch rack; it occupies one rack unit. Quadro 500 DSP...
-
Page 16: Connections And Controls
Connections and controls Connections and controls Front panel 1 [POWER] Main switch. Turns the device on and off 2 Display power amplifier... - Page 17 Connections and controls 3 [Functions Control] Rotary control to open menus, set values, and confirm selections 4 Vents 5 [Data] USB port to connect a computer Quadro 500 DSP...
- Page 18 Connections and controls Rear panel 6 [INPUT CH A] … [INPUT CH D] Connections for four signal inputs, designed as XLR sockets 7 [OUTPUT CH A] … [OUTPUT CH D] Speaker outputs, designed as lockable panel sockets (Speaker Twist) power amplifier...
- Page 19 Connections and controls 8 [Breaker] Resettable fuse 9 IEC chassis plug for the power supply. Quadro 500 DSP...
-
Page 20: Operating
Operating Operating Level meter and setting When the main menu is closed, the display symbolically shows the level of the four input chan- nels. To adjust the volume of the inputs, proceed as follows: Use the [Functions Control] to select one of the channels ‘CH1’ … ‘CH4’ and press the control. - Page 21 In the main menu, select ‘EXIT’ to close the main menu. Menu item Meaning ‘ROUTING’ Opens the settings for assigning input channels to outputs. ‘MUTE’ Opens the settings for muting input channels. ‘DELAY’ Opens the settings for the channel-wise adjustable delay time. Quadro 500 DSP...
- Page 22 Operating Menu item Meaning ‘INVERT’ Opens the settings for the channel-wise adjustable phase inversion. ‘EQSETTING’ Opens the settings for the channel-wise switchable 8-band equalizer, the low-pass filter and the high-pass filter. For each of the eight bands, the frequency ( ‘FREQ’ ), the Q-shape ( ‘Q’ ), and the level boost / cut ( ‘Gain’...
- Page 23 ‘TEMP’ : Setting the temperature used for the conversion of delay time into distance. ‘NAME’ : Naming the device with a string. When the main menu is closed, this string is shown in the display. ‘FIRMWARE’ : Display of the firmware version used in the device. Quadro 500 DSP...
-
Page 24: Technical Specifications
Technical specifications Technical specifications Load impedance 8 Ω 4 Ω Rated output power 4 × 250 W 4 × 500 W Max. output power ‘bridged’ 1000 W Total harmonic distortion (THD) < 0.15 % Crosstalk below rated power > 50 dB Frequency range 20 Hz …... - Page 25 Signal-to-noise ratio (@ rated power, A- 95 dB (A-weighted) weighted) Operating supply voltage 230 V 50 Hz Power consumption 1100 W Dimensions (W × H × D) 483 mm × 44 mm × 460 mm Weight 8.0 kg Block diagram Quadro 500 DSP...
-
Page 26: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip- ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 27 Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter- ference. XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) Quadro 500 DSP...
- Page 28 Plug and connection assignment Speaker Twist chassis connector 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) 2, + Signal 2 (in phase) 2, – Signal 2 (out of phase) power amplifier...
-
Page 29: Cleaning
The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. Quadro 500 DSP... -
Page 30: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate- rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
