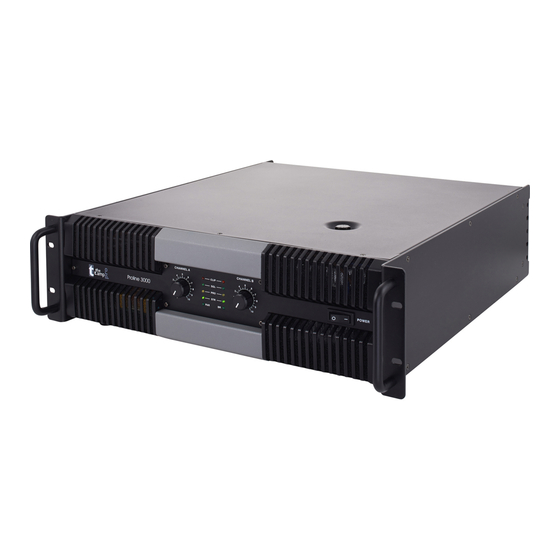

- Page 1 Proline 3000 Power Amplifier...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 30.10.2023, ID: 168990 (V4)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Installation and starting up........................ 11 Connections and controls........................15 Technical specifications........................19 Plug and connection assignment....................23 Cleaning............................... 26 Protecting the environment......................27 Proline 3000 Power Amplifier... - Page 4 Proline 3000 Power Amplifier...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device amplifies electric audio frequency signals to operate passive speakers. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety instructions DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and arrange repair.
- Page 9 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sun‐ light, heavy dirt and strong vibrations.
-
Page 10: Features
Features Features Professional 2-channel amp Class AB Power rating: 2×1200 W @ 8 Ω Power rating: 2×1650 W @ 4 Ω Power rating: 2×1800 W @ 2 Ω 2 Ω stable 2×Input, 6.35-mm jack socket, balanced 2×Input, XLR chassis socket, balanced 2×Output, Speaker Twist Built-in limiter Soft start... -
Page 11: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 12 Installation and starting up CAUTION! Risk of injury due to heavy weight! The device is heavy. Lifting and dropping it during transport and installation can cause injuries. Make sure at least two people work together when transporting and installing the device.
- Page 13 Installation and starting up Available operating modes Depending on the individual application, the amplifier can be used in different operation modes: Stereo mode Both power amplifier channels operate independently of each other, each input (A and B) is amplified by one channel, speakers are connected to both power amplifier channels, the volume for both outputs can be controlled separately.
- Page 14 For the example of two speakers with the same impedance, this means: In series connection, impedance is doubled. In parallel connection, it's halved. Detailed information on this topic can be found in our online guide “Speakers” (www.thomann.de). Proline 3000 Power Amplifier...
-
Page 15: Connections And Controls
Connections and controls Connections and controls Front panel ö ö Proline 3000 Power Amplifier... - Page 16 Connections and controls 1 [CHANNEL A ] / [CHANNEL B] | Volume control for the respective channel 2 LED panel [CLIP] | Lights under the following conditions: Channel overload. The built-in limiter is activated. In this case, reduce the volume until the LED goes out and the built-in limiter is deactivated. Output short circuit.
- Page 17 Connections and controls Rear panel & & Proline 3000 Power Amplifier...
- Page 18 Connections and controls 4 [RESET] | Resettable fuse The fuse switches off when the power consumption of the power amplifier is too high. Once the problem is resolved, the fuse is automatically reset and the device is ready for use again. The switch can be used to force the reset.
-
Page 19: Technical Specifications
Technical specifications Technical specifications Amplifier class Input impedance 16.5 kΩ (balanced) 8.25 kΩ (unbalanced) Inputs Input A XLR socket, 3-pin 6.35-mm jack socket (balanced) Input B XLR socket, 3-pin 6.35-mm jack socket (balanced) Outputs CH A OUT Lockable chassis connector (Speaker Twist) BRIDGE OUT Lockable chassis connector (Speaker Twist) CH B OUT... - Page 20 Technical specifications Frequency response 20 Hz…20 kHz, ±0.3 dB Signal-to-noise ratio ≥ 98 dB Total harmonic distortion (THD) < 0.03%, for -6 dBU input signal Slew rate 45 V/µs Damping factor (1 kHz, 8 Ω) > 700 Sensitivity 0.39 V / -6 dBu Gain 45 dB Crosstalk at rated power @ 8 Ω, 1 kHz...
- Page 21 Technical specifications Dimensions (W × H × D) 482 mm × 132 mm × 480 mm Weight 37 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50%, non-condensing Further information Channels 2 ohm stability DSP/crossover Convection cooling Proline 3000 Power Amplifier...
- Page 22 Technical specifications Block diagram POSITIVE STEP THERMAL POSITIVE INPUT SENSING OUTPUTS GAIN LOOP GAIN CURRE NT SPK/BIN FEEDBACK SPLITTER STEP NEGATIVE CLIP OUTPUTS DISPLAY LIMITING NEGATIVE STEP Proline 3000 Power Amplifier...
-
Page 23: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 24 Plug and connection assignment 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) Proline 3000 Power Amplifier...
- Page 25 Plug and connection assignment Speaker Twist chassis connector 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) 2, + Signal 2 (in phase) 2, – Signal 2 (out of phase) ö Proline 3000 Power Amplifier...
-
Page 26: Cleaning
Cleaning Cleaning Fan grids The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg‐ ular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. -
Page 27: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 28 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
- Page 29 Notes Proline 3000 Power Amplifier...
- Page 30 Notes Proline 3000 Power Amplifier...
- Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
