- Page 1 Wireless temperature controller °C RFTC-50/G...
-
Page 2: Table Of Contents
Contents Warning ......................Characteristics ....................Technical parameters ................... Battery replacement ..................Description of device ..................Description of display .................. Description of control................... Selecting the heating mode................. Setting the temperature for manual mode ..........Entering the programming menu..............Entering the settings menu................Example of programming the RFTC-50/G ........... -
Page 3: Warning
Warning Instruction manual is designated for mounting and also Control is designated only for mounting in interiors. for user of the device. It is always a part of its packing. Devices are not designated for installation into exteriors Installation and connection can be carried out only by and humid spaces. -
Page 4: Characteristics
Characteristics - the temperature controller RFTC-50/G is used as a simple solution for controlling temperature in a room or the home - the RFTC-50/G is a programmable temperature controller with the option of setting a weekly program, which off ers two regulation options: a) the internal sensor scans the temperature, and based on the set command, it gives the command to switch on the switching actuator RFSA-6x, RFUS-61 or RFSC-61. -
Page 5: Technical Parameters
Technical parameters Supply voltage: 2 x 1.5V bat. AAA Battery life: up to 1 year (depending on number of controlled actuators) Temperature off set: 2 buttons v / ^ Temperature off set range: ± 5 °C Display: LCD, characters Backlight: Yes, active - blue Transmission / function indicator: symbols... -
Page 6: Battery Replacement
Battery replacement Prior to fi rst assembly, remove the moldings in the frame and peel off the protective fi lm from the display. After inserting the batteries, all features for controlling the display function illuminate for 2 seconds, then the FW version is displayed in the upper row. -
Page 7: Description Of Device

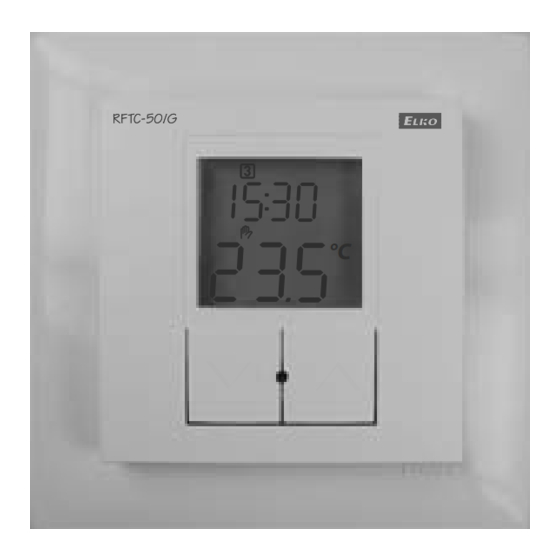

Description of device Day of the week Current time Circuit status Heating mode °C Current temperature Control button ^ Control button Hidden button - 7 -... -
Page 8: Description Of Display
Description of display Display of the day of the week Current time Prog Automatic mode Auto in selected - setting the time format 12/24 - locking the menu item or program °C - manual mode °F - setting the temperature - output switched on when selecting heating function - output switched on when selecting cooling function - displays in the case of low battery voltage... -
Page 9: Description Of Control
Description of control Button functions for controlling: Short press of buttons (< 2 s) - switching menu items, changing value °C Long button press (> 2 s) - unlocking the menu item or time program for changing - confi rmation of changed value after setting and locking of the menu item or program Long button press (>... -
Page 10: Selecting The Heating Mode
Selecting the heating mode Auto °C OFF - thermostat switched Auto - automatic mode - - manual mode - vacation mode - the thermostat regulates - the thermostat the thermostat regulates off - when selecting the to a temperature based regulates to the to a temperature set function „heating... -
Page 11: Setting The Temperature For Manual Mode
Setting the temperature for manual mode °C . In the upper row, the indication t °C is displayed and in the lower row At the default display, briefl y press the button the current selected temperature fl ashes. By short presses of the buttons , you will change the value by an increment of 0.5 °C. -
Page 12: Entering The Programming Menu
Entering the programming menu °C °C ECO - setting the reduced StA - time of start of the temperature, regulation to program step, range this temperature is performed 12:00 a.m. - 11:50 p.m., in the Auto mode, outside the increment 10 minutes set time segments DAYS - setting the type of time program, selections: - each day separately -... - Page 13 - only possible from the default display by pressing and holding the hidden button - the display indicates ProG °C - by short presses of the buttons , you can toggle between display ProG and SEt - by pressing and holding the button you select entry into the End - time of end of t °C - required...
-
Page 14: Entering The Settings Menu
Entering the settings menu °C °C rF-A - the number of OFS - off set of the 1, 2, 3, 4 - according to the number of controlled actuators temperature sensor, controlled actuators of the type RFSA-6x or range -5.0 to +5.0 °C, there are available 1 - 4 RFSTI-11B - range 1 - 4 step 0.1 °C... - Page 15 °C HYS - setting the bLt - intensity of display back lighting OFF, 1 - 10 hysteresis of heating / cooling, range 0.2 to 5.0 °C, step 0.2 °C FCE - selection of function heating / For - format the time display 12/24 cooling (HEAt / CooL ) - on the upper row, the function is selected (HEAt / CooL),...
- Page 16 °C °C St - transition of 1.1.12 - setting data - fi rst the OFF - setting the non- setting the time - fi rst setting the hours are set followed temperature and time summer winter time year is set (range 12 - 99, freezing temperature for the OFF mode, by minutes - upon...
- Page 17 °C °C FL-H - setting the FL-L - setting the Corr - correction of max. temperature for minimum fl oor time deviation, sets the underfl oor heating *** temperature **** number of seconds for 10 days, range ± 99 *** oFF - fl oor temperature function is switched off , the actuator(s) of the type RFSA-6x is(are) controlled. Range 20 - 35 °C, fl oor temperature function is switched on, the actuator(s) of the type RFSTI-11B is(are) controlled (with date of manufacture from 03/2013).
-
Page 18: Example Of Programming The Rftc-50/G
Example of programming the RFTC-50/G Example of settings for actuator RFSA-6x, RFSC-61, RFUS-61 and RFSTI-11B °C °C °C - 18 -... - Page 19 Example for 1 actuator type RFSTI-11B with RF address 001234 with hysteresis of 0.6 °C, heating function, time format 24 hr., daylight savings time switched off , non-freezing temperature set to 7 °C, maximum fl oor temperature 28 °C, °C minimum fl oor temperature 21°C, time correction 0.
- Page 20 ELKO EP, s.r.o. Palackého 493 | 769 01 Holešov, Všetuly Czech Republic tel.: +420 573 514 211 | fax: +420 573 514 227 elko@elkoep.com | www.elkoep.com Made in Czech Republic 4863 02-98/2016 Rev.: 3...
