Grandstream Networks, Inc.

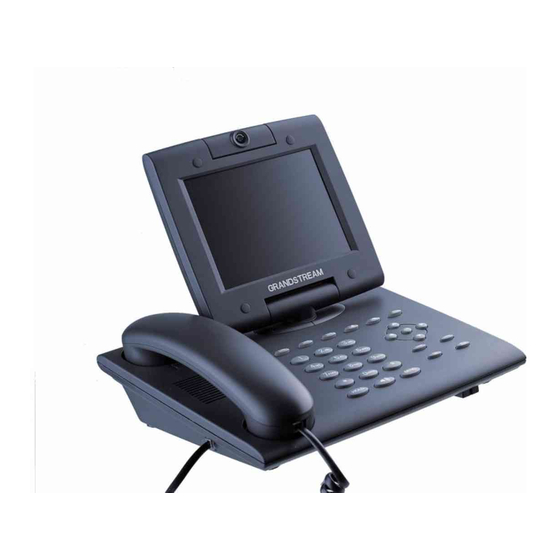

GXV300x Series
IP Video Phone

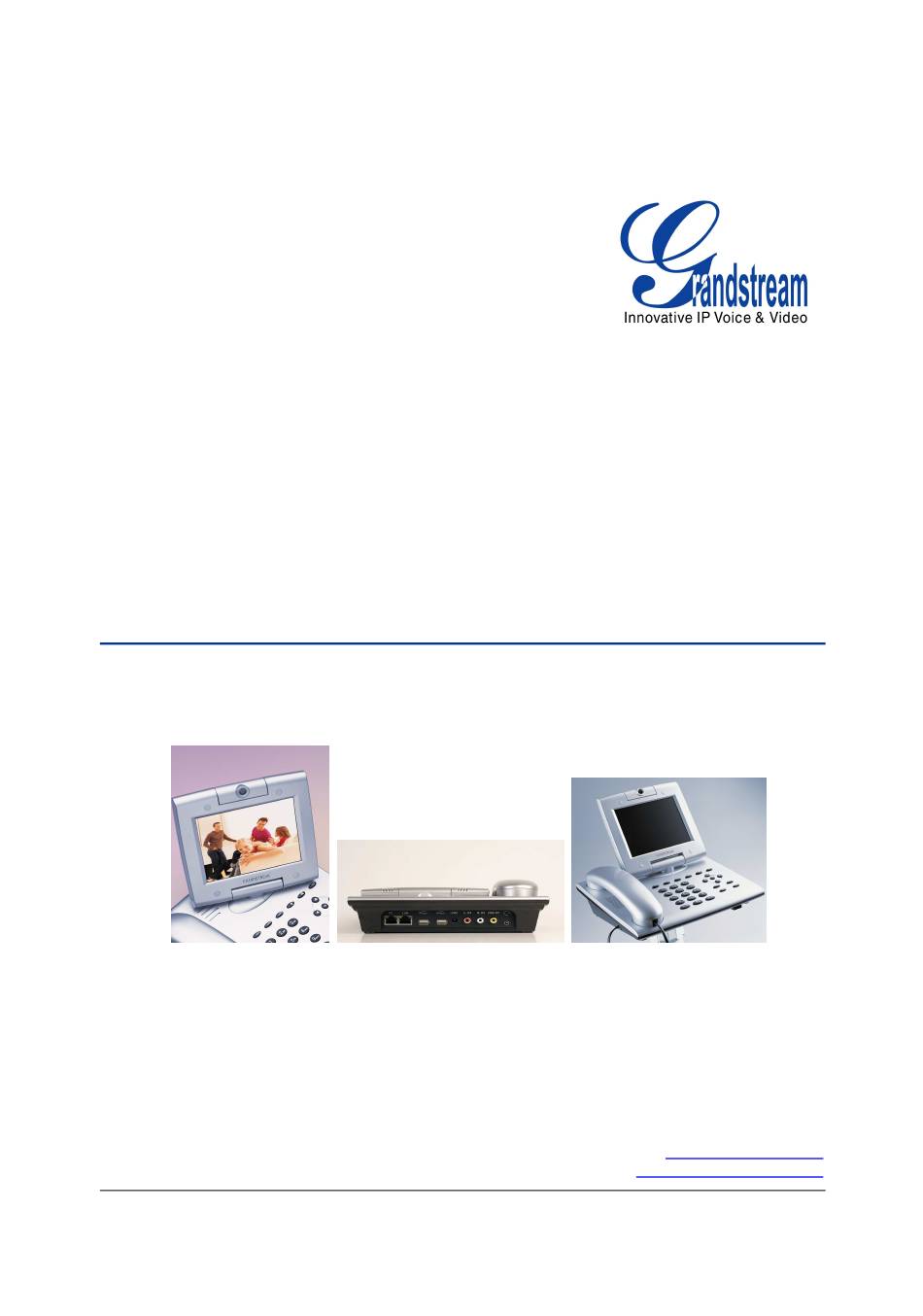

GXV300x SeriesUser Manual
www.grandstream.com
Firmware Version 1.2.3.7
support@grandstream.com
http://ArtTel.ru

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GXV300 Series and is the answer not in the manual?

Questions and answers

Siddharth
March 17, 2025

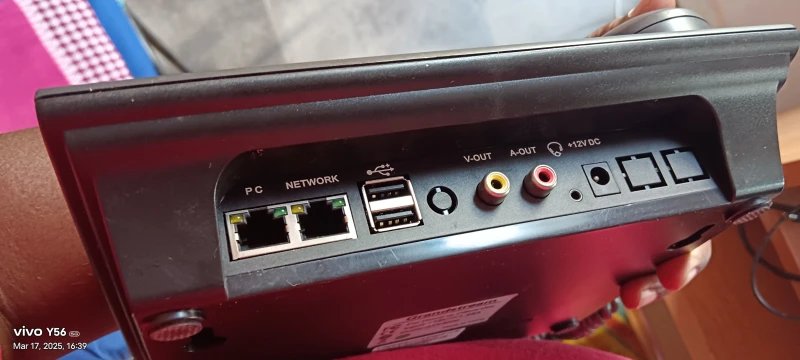

I need to know how to connect the landline port
