Summary of Contents for WAC BLITZEN F-060

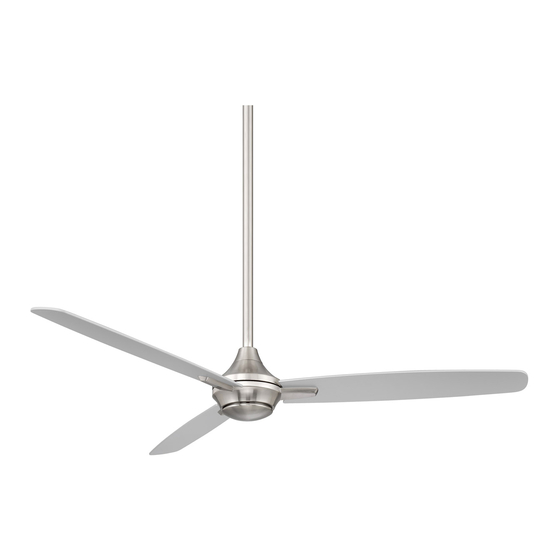

- Page 1 BLITZEN Installation Instructions works with the Google Assistant...
- Page 2 Please read and save these instructions before installation...
- Page 3 GENERAL INQUIRIES FAN SUPPORT For all questions about your ceiling fan please read all For fast service have the following information below included instructions, installation procedures, trouble- when you call: shooting guidelines and warranty information before starting installation. • Model Name and Number For missing parts or general inquiries •...
- Page 4 SAFETY RULES For operation, maintenance, and troubleshooting information, visit http://waclighting.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off at Never place objects in the path of the fan blades. the circuit breaker before beginning. To avoid personal injury or damage to the fan and other items, please be cautious when working around All wiring must be in accordance with the National Electrical Code “ANSI/ or cleaning the fan.
- Page 5 WAC. Substitution of WARNING: Do not operate fan unless fan blades are in place. parts or accessories not designated for use with this product by WAC could Noise and fan damage can occur result in personal injury or property damage and will void the warranty.
- Page 6 UL/cUL safety regulations for voice-activated control MOTOR Compatible with our WAC app Wi-Fi and Bluetooth enabled for unlimited control The WAC app synchronizes seamlessly with smart home devices you already own works with the Google Assistant APP DOWNLOAD WALL CONTROL REMOTE CONTROL...
-
Page 7: Table Of Contents
TABLE OF CONTENTS Package Contents Mounting Options Installing the Mounting Bracket Attaching the Fan Blades Hanging the Fan Making the Electrical Connections Installing the Optional Wall Control Finishing the Installation Installing the Adapter Plate Installing the Luminaire Cover Installing the Luminaire Module Controlling the Fan Reset Application... - Page 8 TOOLS & MATERIALS REQUIRED Electrical tape Wire cutters Phillips screwdriver Step ladder Hanging Weight: 14/14.5 lbs NOTE: Before discarding packaging materials, be certain all parts have been removed. NOTE: Place the parts from the hardware bag into a small container to keep them from being lost. MAC ID IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.
-
Page 9: Package Contents
PACKAGE CONTENTS Fan Blade Canopy Ring RPL-F060-54-BD-** RPL-CAN-OCT- Downrod Coupling Assembly Cover RPL-HGR-ASM- Canopy Mounting RPL-CAN-OCT- Bracket Motor Housing RPL-HRG-ASM- Hardware Bag Remote Control RPL-F060-PARTS Luminaire Cover RC20-WT Luminaire Module (F-060 version) Outlet Box Safety Cable (F-060L version) Pan Head Phillips Screw (2) Flat Washer (1) RPL-F060-COVER- F3IN-120V-R1-30... -
Page 10: Mounting Options
MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET Standard Ceiling Slope Ceiling To Switch To Switch (No Neutral) Caution: Remember to disconnect the power at the circuit breaker. (Ground) (Ground) (Hot) (Hot)/ Switch *Bare or *Bare or (Neutral) Green Green CAUTION: To prevent electrical shock, ensure electricity has been Remove 1 set screw from mounting bracket and set aside for turned off at the circuit breaker before beginning. -
Page 11: Attaching The Fan Blades
ATTACHING THE FAN BLADES Place blade on blade arms. Secure blade with blade attachment screws and washers - repeat for remaining blades. Use hardware. F - 0 6 0 / F- 0 6 0 L... -
Page 12: Hanging The Fan
HANGING THE FAN Remove screw from hanger ball. Remove hanger ball Install coupling cover, canopy screw ring, canopy and and cross pin. downrod assembly into motor housing as shown. Loosen 2 screws, clevis pin and cotter pin. F - 060 / F - 060L... - Page 13 HANGING THE FAN Align downrod and motor collar holes, re-insert pins and screws. Seat all into the mounting bracket. Rotate until ball drops and locks into hanger bracket screw. Slip up canopy and canopy screw cover. Re-install hanger ball with cross pin in correct place. F - 0 6 0 / F- 0 6 0 L...
-
Page 14: Making The Electrical Connections
HANGING THE FAN MAKING THE ELECTRICAL CONNECTIONS Outlet Box Hanger Ball & Downrod Connect the labled wires from fan to the corresponding wires on the receiver. Secure the safety cable into the structure beams using the Connect the labeled wires from the outlet box to the wood screw, washers, and spring washers provided. -
Page 15: Installing The Optional Wall Control
INSTALLING THE OPTIONAL WALL CONTROL NOTE: Wall control not included. A Bluetooth wall control accessory can be purchased separately. NOTE: For multi-location wiring, skip to the next step. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outletbox that feeds back to the circuit breaker –... - Page 16 INSTALLING THE OPTIONAL WALL CONTROL Wall Control 1 Wall Control 2 Wall Control 3 Install the wall control using the wiring diagram above. Individually pair each of the wall controls with the fan receiver using the pairing instruction. F-060 / F-060 L...
-
Page 17: Finishing The Installation
FINISHING THE INSTALLATION Install canopy to mounting bracket with the screw Install canopy screw ring as shown. removed in section 2 Twist canopy into place as shown. F - 0 6 0 / F- 0 6 0 L... -
Page 18: Installing The Adapter Plate
INSTALLING THE ADAPTER PLATE Remove 1 of 3 screws from the mounting ring and loosen the Twist and lock the adapter plate into place by following the others (do not remove). arrows above. Using the previously removed screw from the previous step, install the adapter plate. -
Page 19: Installing The Luminaire Cover
INSTALLING THE LUMINAIRE COVER (F-060 version) Install luminaire cover firmly without over-tightening. NOTE: Skip this step if you have purchased F-060L. F - 0 6 0 / F- 0 6 0 L... -
Page 20: Installing The Luminaire Module
INSTALLING THE LUMINAIRE MODULE When installing the Luminaire verison (F-060L) Use the 3 screws located in the luminaire module screw bag to Connect the white wire connectors from the luminaire module install the luminaire module to the adapter plate. to the white wire of the fan. Follow same procedure with blue Hardware. - Page 21 INSTALLING THE LUMINAIRE MODULE When installing the Luminaire verison (F-060L) Install glass shade firmly without over-tightening.
- Page 22 B: Fan On/Off, Speed Up/Down power on to the fan receiver. If you wish to pair your remote to another WAC Smart Fan or if you ever need to re-pair your remote to its original C: Season (Summer/Winter) fan, press and hold the light toggle and fan toggle for 4 seconds until Air-Gap Switch: Pull tab to power off in case of emergency.
-
Page 23: Controlling The Fan
CONTROLLING THE FAN Breeze Mode Controlling Multiple Fans with Remote or Wall Controls Your remote and wall controls are capable of controlling Breeze Mode mimics the natural ebb and flow of winds in multiple fans. A remote or wall control has the ability to control nature by varying the fan speed. - Page 24 CONTROLLING THE FAN Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds. Fan On/Off: Press and hold button for 4 seconds. The LED on the remote will flash green and all connected fans will beep to indicate the message has been received.
-
Page 25: Reset
10 seconds. The light on the remote NOTE: Factory reset will remove remote control(s), wall control(s) and WAC will flash green and the fan will sound two long beeps. You can then use the Modern app connections. -
Page 26: Application
Wi-Fi. For more detailed app Instructions and Smart Home Device Integration http://www.waclighting.com/SmartFanStart To use the WAC app, download it from the App Store or Google Play. Open the app to create your account. You can also log in using your Facebook or Google account. - Page 27 APPLICATION The WAC app will walk you through the main screen and show you how to create schedules, change fan speeds, dim the light, switch between Summer and Winter Modes, invite users, create groups and much more. Please refer to the WAC app instructions for more details.
-
Page 28: Accessories
Description Finish Bluetooth 6 fan speeds, dims light to 1% Wall Control WC20- Works in conoutlet with WAC Smart Fan receiver (not included) Coupler Connects two downrods Designed to accommodate buildings with steeper Slope Ceiling Kit sloped ceilings up to 45° or 12/12 pitch... - Page 29 ACCESSORIES Product Model Description Downrod DR12-** 12” downrod DR18-** 18” downrod DR24-** 24” downrod All our downrods are 1” 1” O.D. and are threaded on the motor DR36-** 36” downrod end to create an extra layer of security to allow for adjustments in the field DR48-** 48”...
-
Page 30: Troubleshooting
TROUBLESHOOTING My Fan Will Not Start Check main and branch circuit fuses or circuit breakers. Check line wire connections to fan and switch wire connections in the switch housings. WARNING: Make sure the main power is turned off! My Fan is Noisy Allow for 24-hour break-in period. - Page 31 TROUBLESHOOTING My Fan is not producing Enough Air Movement If possible, please consider using a longer than included downrod. My remote or wall control is not controlling my fan Verify that the fan is receiving power by power cycling the fan. To do this: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
- Page 32 What is Pairing? Pairing is the process of connecting your WAC remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
- Page 33 F - 0 6 0 / F- 0 6 0 L...
- Page 34 Esta garantía no se aplicará a los productos que hayan sido alterados, of a defect in writing must be received by WAC within five (5) years from the date of instalados incorrectamente, mal manejados o mal utilizados. La notificación de un purchase (or according period of time as outlined by material).
- Page 35 WAC doit recevoir un avis écrit du défaut dans un délai de cinq (5) ans à compter de la date d’achat (ou selon la période précisée dans les informations fournies).
- Page 36 F - 060/F - 06 0L waclighting.com...
