Summary of Contents for WAC Geos

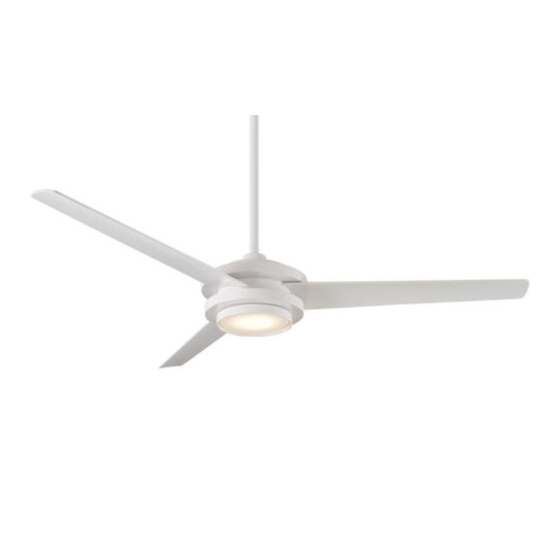

- Page 1 GEOS Installation Instructions works with the Google Assistant...
- Page 2 Please read and save these instructions before installation...
- Page 3 GENERAL INQUIRIES FAN SUPPORT For all questions about your ceiling fan please read all For fast service have the following information below included instructions, installation procedures, trouble- when you call: shooting guidelines and warranty information before starting installation. • Model Name and Number For missing parts or general inquiries •...
- Page 4 SAFETY RULES For operation, maintenance, and troubleshooting information, visit http://waclighting.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off at Never place objects in the path of the fan blades. the circuit breaker before beginning. To avoid personal injury or damage to the fan and other items, please be cautious when working around All wiring must be in accordance with the National Electrical Code “ANSI/ or cleaning the fan.
- Page 5 WAC. Substitution of WARNING: Do not operate fan unless fan blades are in place. parts or accessories not designated for use with this product by WAC could Noise and fan damage can occur result in personal injury or property damage and will void the warranty.
- Page 6 UL/cUL safety regulations for voice-activated control MOTOR Compatible with our WAC app Wi-Fi and Bluetooth enabled for unlimited control The WAC app synchronizes seamlessly with smart home devices you already own works with the Google Assistant APP DOWNLOAD WALL CONTROL REMOTE CONTROL...
-
Page 7: Table Of Contents
TABLE OF CONTENTS Package Contents Mounting Options Installing the Mounting Bracket Attaching the Fan Blades Hanging the Fan Making the Electrical Connections Installing the Optional Wall Control Finishing the Installation Installing the Adapter Plate Installing the Luminaire Cover Controlling the Fan Reset Application Accessories... - Page 8 TOOLS & MATERIALS REQUIRED Electrical tape Wire cutters Phillips screwdriver Step ladder Hanging Weight: 14/14.5 lbs NOTE: Before discarding packaging materials, be certain all parts have been removed. NOTE: Place the parts from the hardware bag into a small container to keep them from being lost. MAC ID IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.
-
Page 9: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: REF. DESCRIPTION PART NO. Blade Set of 3 (3B1) RPL-F068-60-BD-** Hanger Assembly RPL-HGR-ASM-** Hanger Bracket Downrod Assembly Control Receiver w/Hardware F-R3-**** Canopy w/ Canopy screw ring RPL-CAN-CYL** Coupling Cover RPL-F068-CCOV**... -
Page 10: Mounting Options
MOUNTING OPTIONS Support Brace Joist CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning. If there isn’t an existing UL/cUL listed outlet box, please refer to the Outlet Box following instructions. Secure the outlet box directly to the building structure. -
Page 11: Installing The Mounting Bracket
INSTALLING THE MOUNTING BRACKET Remember to disconnect the power at the circuit breaker. Remove 1 of 2 screws from the bottom of the mounting Mounting Bracket bracket and save for use in section 11. Loosen the other screw (FIG.5). Pass the 120-volt supply wires through the center hole in the mount- Screw ing bracket as shown (FIG.6). -
Page 12: Attaching The Fan Blades
ATTACHING THE FAN BLADES Place blade on motor as shown and secure with the blade attachment screws and washers (FIG.7). Repeat this procedure with the remaining blades. Turn fan assembly over to assemble the downrod. FIG.7 F - 0 6 8 / F - 0 6 8L... -
Page 13: Hanging The Fan
HANGING THE FAN Cross Pin Assemble upper housing to motor assembly using the 6 screws provided (FIG. 8). Hanger Ball Take out the screw located in the hanger ball, lower the hanger ball Set Screw and remove the cross pin. Remove the hanger ball from the hanger ball/downrod assembly. - Page 14 HANGING THE FAN (cont'd) Carefully lift the fan motor assembly up to the mounting bracket and seat the hanger ball in the mounting bracket socket. Make sure the tab on the mounting bracket socket is properly seated in the groove in the hanger ball (FIG.9). Rotate the socket assembly until the ball drops and locks into the hanger bracket screw.
-
Page 15: Making The Electrical Connections
MAKING THE ELECTRICAL CONNECTIONS Remember to disconnect the power at the circuit breaker. CAUTION: If you feel you do not have enough wiring knowledge or experience, have your fan installed by a licensed electrician. NOTE: Installation of this fan requires that a three-conductor cable (including ground wire) be run between ceiling and wall outlet boxes. - Page 16 MAKING THE ELECTRICAL CONNECTIONS (cont'd) Motor to receiver electrical connections : (FIG.11) Connect the hanger ball/downrod assembly ground wire, mounting Outlet Box bracket ground wire and receiver ground wire to White (neutral) the ground wire in the ceiling outlet box. Black (hot) Green (ground) WARNING: Failure to connect ground wires could result in poor...
-
Page 17: Installing The Optional Wall Control
INSTALLING THE OPTIONAL WALL CONTROL NOTE: Wall control not included. A Bluetooth wall control accessory can be purchased separately. NOTE: For multi-location wiring, skip to the next step. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outletbox that feeds back to the circuit breaker –... - Page 18 INSTALLING THE OPTIONAL WALL CONTROL (cont'd) Wall Control 1 Wall Control 2 Wall Control 3 Install the wall control using the wiring diagram above. Individually pair each of the wall controls with the fan receiver using the pairing instruction. F-0 68 / F-0 68L...
-
Page 19: Finishing The Installation
FINISHING THE INSTALLATION Secure all wire connections with supplied wire ties to assist in canopy installation. Tuck connections neatly into ceiling outlet box. Slide the canopy up to mounting bracket and place the key hole on the canopy over the screw on the mounting bracket. Turn canopy until it locks in place at the narrow section of the key holes (FIG.14). -
Page 20: Installing The Adapter Plate
INSTALLING THE ADAPTER PLATE Remember to disconnect the power at the circuit breaker. Remove 1 of 3 pre-installed screws from the mounting ring and loosen the other screws (do not remove). Place key holes in the adapter plate over the 2 screws previously loosened from the mounting ring. - Page 21 INSTALLING THE LED LUMINAIRE (optional) WARNING: Before starting installation, disconnect the power by turning off FIG.16 the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not sufficient to prevent electrical shock. CAUTION: To reduce the risk of electric shock, disconnect the electrical supple circuit to the fan before installing light kit.
- Page 22 B: Fan On/Off, Speed Up/Down power on to the fan receiver. If you wish to pair your remote to another WAC Smart Fan or if you ever need to re-pair your remote to its original C: Season (Summer/Winter) fan, press and hold the light toggle and fan toggle for 4 seconds until Air-Gap Switch: Pull tab to power off in case of emergency.
-
Page 23: Controlling The Fan
CONTROLLING THE FAN Breeze Mode Controlling Multiple Fans with Remote or Wall Controls Your remote and wall controls are capable of controlling Breeze Mode mimics the natural ebb and flow of winds in multiple fans. A remote or wall control has the ability to control nature by varying the fan speed. - Page 24 CONTROLLING THE FAN Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds. Fan On/Off: Press and hold button for 4 seconds. The LED on the remote will flash green and all connected fans will beep to indicate the message has been received.
-
Page 25: Reset
10 seconds. The light on the remote NOTE: Factory reset will remove remote control(s), wall control(s) and WAC will flash green and the fan will sound two long beeps. You can then use the Modern app connections. -
Page 26: Application
Wi-Fi. For more detailed app Instructions and Smart Home Device Integration http://www.waclighting.com/SmartFanStart To use the WAC app, download it from the App Store or Google Play. Open the app to create your account. You can also log in using your Facebook or Google account. - Page 27 APPLICATION The WAC app will walk you through the main screen and show you how to create schedules, change fan speeds, dim the light, switch between Summer and Winter Modes, invite users, create groups and much more. Please refer to the WAC app instructions for more details.
-
Page 28: Accessories
Description Finish Bluetooth 6 fan speeds, dims light to 1% Wall Control WC20- Works in conoutlet with WAC Smart Fan receiver (not included) Coupler Connects two downrods Designed to accommodate buildings with steeper Slope Ceiling Kit sloped ceilings up to 45° or 12/12 pitch... - Page 29 ACCESSORIES Product Model Description Downrod DR12-** 12” downrod DR18-** 18” downrod DR24-** 24” downrod All our downrods are 1” 1” O.D. and are threaded on the motor DR36-** 36” downrod end to create an extra layer of security to allow for adjustments in the field DR48-** 48”...
-
Page 30: Troubleshooting
TROUBLESHOOTING My Fan Will Not Start Check main and branch circuit fuses or circuit breakers. Check line wire connections to fan and switch wire connections in the switch housings. WARNING: Make sure the main power is turned off! My Fan is Noisy Allow for 24-hour break-in period. - Page 31 TROUBLESHOOTING My Fan is not producing Enough Air Movement If possible, please consider using a longer than included downrod. My remote or wall control is not controlling my fan Verify that the fan is receiving power by power cycling the fan. To do this: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
- Page 32 What is Pairing? Pairing is the process of connecting your WAC remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
- Page 33 Esta garantía no se aplicará a los productos que hayan sido alterados, of a defect in writing must be received by WAC within five (5) years from the date of instalados incorrectamente, mal manejados o mal utilizados. La notificación de un purchase (or according period of time as outlined by material).
- Page 34 WAC doit recevoir un avis écrit du défaut dans un délai de cinq (5) ans à compter de la date d’achat (ou selon la période précisée dans les informations fournies).
- Page 35 F - 068/F - 06 8L waclighting.com...
