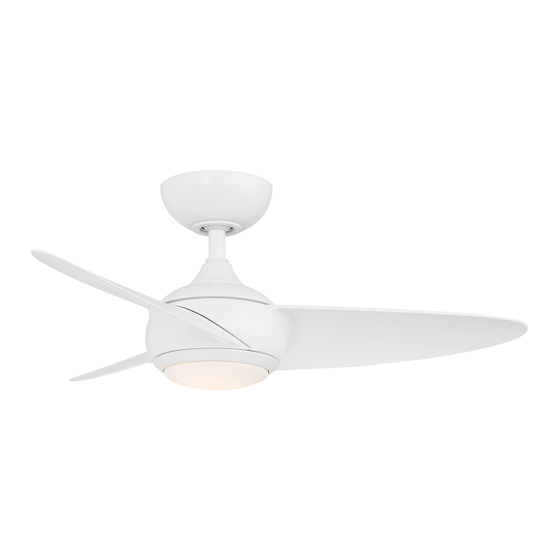

LOFT
Installation Instructions
works with the
Google Assistant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOFT and is the answer not in the manual?

Questions and answers

Related Manuals for WAC LOFT

Summary of Contents for WAC LOFT

  • Page 1 LOFT Installation Instructions works with the Google Assistant...
  • Page 2 Please read and review instructions before installation...
  • Page 3 GENERAL INQUIRIES FAN SUPPORT For all questions about your ceiling fan please read all For fast service have the following information below included instructions, installation procedures, trouble- when you call: shooting guidelines and warranty information before starting installation • Model Name and Number For missing parts or general inquiries •...
  • Page 4 SAFETY RULES For operation, maintenance, and troubleshooting information, visit http://waclighting.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off To avoid personal injury or damage to the fan and at the circuit breaker before beginning. other items, please be cautious when working around or cleaning the fan.
  • Page 5 WAC. Substitution of parts WARNING: Do not operate fan unless fan blades are in place. or accessories not designated for use with this product by WAC could result Noise and fan damage can occur in personal injury or property damage and will void the warranty.
  • Page 6 UL/cUL safety regulations for voice-activated control MOTOR Wi-Fi and Bluetooth enabled Compatible with our WAC app for unlimited control The WAC app synchronizes seamlessly with smart home devices you already own works with the Google Assistant APP DOWNLOAD WALL CONTROL REMOTE CONTROL...

  • Page 7: Table Of Contents

    TABLE OF CONTENTS Package Contents Mounting Options Installing the Mounting Bracket Attaching the Fan Blades Hanging the Fan Making the Electrical Connections Installing the Optional Wall Control Finishing the Installation Installing the Adapter Plate Installing the Luminaire Module Controlling the Fan Reset App Instructions Accessories...
  • Page 8 TOOLS & MATERIALS REQUIRED Electrical tape Wire cutters Phillips screwdriver Step ladder NOTE: Before discarding packaging materials, be certain all parts have been removed. NOTE: Place the parts from the hardware bag into a small container to keep them from being lost. MAC ID IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.

  • Page 9: Package Contents

    PACKAGE CONTENTS Fan Blades Canopy Ring RPL-F094-38-BD-** RPL-CAN-RND-** Downrod Assembly Coupling L-HGR-ASM-** Cover RPL-F094COUCVR-** Blade Press Canopy Mounting Motor Plates RPL-CAN-RND-** Bracket Housing RPL-F094-BLDEPLATE RPL-HGR-ASM-** Hardware Bag RPL-F094-PARTS Receiver Luminaire Module F-R3-094-038 F4IN-120V-R1-30 Junction Box Safety Cable Machine Screws (2) Flat Washer (1) Spring Washers (2) Spring Washer (1)

  • Page 10: Mounting Options

    MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET Standard Ceiling Slope Ceiling To Switch To Switch (No Neutral) Caution: Remember to disconnect the power at the circuit breaker. (Ground) (Ground) (Hot) (Hot)/ *Bare or Switch *Bare or (Neutral) Green Green CAUTION: To prevent electrical shock, ensure electricity Secure the hanger bracket to the ceiling outlet box using screws included with your outlet box, lock washers included with the fan.

  • Page 11: Attaching The Fan Blades

    ATTACHING THE FAN BLADES Place blade and blade press plate on the motor assembly. hardware. Secure the blade and blade press plate with the mounting screws on to the motor housing. Repeat step for remaining blades. Turn fan around and place on soft cloth to prevent scratches to the surface until you hang the fan on the hanger bracket.

  • Page 12: Hanging The Fan

    HANGING THE FAN Remove the hanger ball portion from the downrod/ hanger ball assembly by loosening Cross Pin the set screw in the hanger ball until the ball falls Downro freely down the downrod. Remove the pin from the downrod, then remove the hanger ball. Retain Hairpin Clip Set Screw the pin and hanger ball for reinstallation (Fig 4).
  • Page 13 HANGING THE FAN F- 0 9 4L...

  • Page 14: Making The Electrical Connections

    HANGING THE FAN MAKING THE ELECTRICAL CONNECTIONS Outlet Box Connect the labled wires from fan to the corresponding wires Secure the safety cable into the structure beams using the on the receiver. wood screw, washers, and spring washers provided. hardware. Connect the labeled wires from the outlet box to the corresponding wires on the receiver.

  • Page 15: Installing The Optional Wall Control

    INSTALLING THE OPTIONAL WALL CONTROL NOTE: Wall control not included. A Bluetooth wall control accessory can be purchased separately. NOTE: For multi-location wiring, skip to the next step. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outlet box that feeds back to the circuit breaker –...
  • Page 16 INSTALLING THE OPTIONAL WALL CONTROL Wall Control 1 Wall Control 2 Wall Control 3 Install the wall control using the wiring diagram in above. Individually pair each of the wall controls with the fan receiver using the pairing instructions in section 15. F-0 94 L...
  • Page 17 INSTALLING THE CANOPY Secure wire connectors with supplied wire ties. Install canopy to mounting bracket with the screw removed in section 2. Junction box Install canopy screw ring as shown. Hanger Bracket Screws Canopy Canopy Screw Cover F- 0 9 4L...

  • Page 18: Installing The Adapter Plate

    INSTALLING THE ADAPTER PLATE / LUMINAIRE MODULE Remove 1 of 3 screws from the mounting ring and loosen the Remove 1 and loosen 2 screws from the outer perimeter of the adapter plate. others (do not remove). Connect the LED wires Twist lock the adapter plate into place.

  • Page 19: Installing The Luminaire Module

    INSTALLING THE LUMINAIRE MODULE/GLASS Twist lock the LED module/plate into place using they key lock method. controlling your WAC Smart Fan. Install the 1 previously removed screw and tighten the 2 others. NOTE: There is no luminaire cover for this fan.

  • Page 20: Controlling The Fan

    NOTE: Pairing must be completed within 3 minutes of turning the power on to the fan receiver. If you wish to pair your remote to another WAC Smart Fan or if you ever need to re-pair your remote to its original C: Season (Summer/Winter)
  • Page 21 CONTROLLING THE FAN Breeze Mode Controlling Multiple Fans with Remote or Wall Controls Your remote and wall controls are capable of controlling multiple fans. A remote or wall control has the ability to control Breeze Mode mimics the natural ebb and flow of winds in an unlimited number of fans with the only limitation being the nature by varying the fan speed.
  • Page 22 CONTROLLING THE FAN Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds. Press and hold Press and hold Fan Direction: Press and hold beep to indicate the message has been received. All fans will be set to summer mode (CCW rotation). This will bring all fans controlled by the remote into sync.

  • Page 23: Reset

    NOTE: Factory reset may remove remote control(s), wall control(s) Passphrase you will need to perform a Wi-Fi reset on the fan and WAC app connections. by holding down the fan speed up and fan speed down buttons NOTE: If advised by technical support, you can reset your fan to on the remote control for 10 seconds.
  • Page 24 Wi-Fi. For more detailed app Instructions and Smart Home Device Integration http://www.waclighting.com/SmartFanStart To use the WAC app, download it from the App Store or Google Play. Open the app to create your account. You can also log in using your Facebook or Google account.
  • Page 25 APPLICATION The WAC app will walk you through the main screen and show you how to create schedules, change fan speeds, dim the light, switch between Summer and Winter Modes, invite users, create groups and much more. Please refer to the WAC app instructions for more details.

  • Page 26: Accessories

    Compatible with WAC Smart Fans RC20- Bluetooth Remote Control 6 fan speeds, dims light to 1% 6 fan speeds, dims light to 1% WC20- Works in conjunction with WAC Smart Fan receiver Bluetooth Wall Control (not included) Coupler DC-** Connects two downrods...
  • Page 27 ACCESSORIES Product Model Description Downrod DR12-** 12” downrod DR18-** 18” downrod DR24-** 24” downrod All our downrods are .75” O.D. and are threaded on the motor DR36-** 36” downrod end to create an extra layer of security to allow for adjustments DR48-** 48”...

  • Page 28: Troubleshooting

    TROUBLESHOOTING My Fan Will Not Start Check main and branch circuit fuses or circuit breakers. Check line wire connections to fan and switch wire connections in the switch housings. WARNING My Fan is Noisy Allow for 24-hour break-in period. Most noises associated with a new fan will go away during this time period. Check to make sure the screws which attached to the blades (and blade arms when applicable) are tight.
  • Page 29 TROUBLESHOOTING My Fan is not producing Enough Air Movement If possible, please consider using a longer than included downrod. My remote or wall control is not controlling my fan Verify that the fan is receiving power by power cycling the fan. To do this: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
  • Page 30 What is Pairing? Pairing is the process of connecting your WAC remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
  • Page 31 This warranty shall not apply to defecto por escrito debe ser recibida por WAC dentro de los cinco (5) años a partir de products that have been altered, improperly installed, mishandled or misused. Notice la fecha de compra (o según el período de tiempo indicado en el material).
  • Page 32 Cette garantie ne inappropriée. WAC doit recevoir un avis écrit du défaut dans un délai de cinq (5) ans à compter de la date d’achat (ou selon la période précisée dans les informations fabricant.
  • Page 33 F- 0 9 4L...
  • Page 34 F- 094L waclighting.com...
