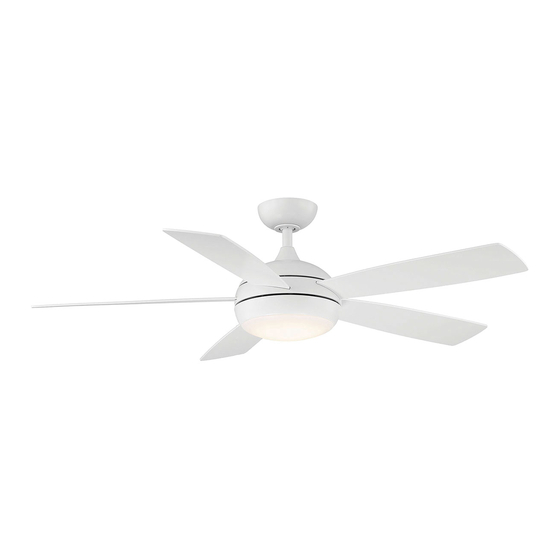

- Page 1 ODYSSEY Installation Instructions works with the Google Assistant...
- Page 2 Please read and review instructions before installation...
- Page 3 GENERAL INQUIRIES FAN SUPPORT For all questions about your ceiling fan please read all For fast service have the following information below included instructions, installation procedures, trouble- when you call: shooting guidelines and warranty information before starting installation. • Model Name and Number For missing parts or general inquiries •...
- Page 4 SAFETY RULES For operation, maintenance, and troubleshooting information, visit http://waclighting.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off at Never place objects in the path of the fan blades. the circuit breaker before beginning. To avoid personal injury or damage to the fan and other items, please be cautious when working around All wiring must be in accordance with the National Electrical Code “ANSI/ or cleaning the fan.
- Page 5 WAC. Substitution of WARNING: Do not operate fan unless fan blades are in place. parts or accessories not designated for use with this product by WAC could Noise and fan damage can occur result in personal injury or property damage and will void the warranty.
- Page 6 MOTOR Wi-Fi and Bluetooth enabled Compatible with our WAC app for unlimited control The WAC app synchronizes seamlessly with smart home devices you already own works with the Google Assistant APP DOWNLOAD WALL CONTROL REMOTE CONTROL...
-
Page 7: Table Of Contents
TABLE OF CONTENTS Package Contents Mounting Options Installing the Mounting Bracket Attaching the Fan Blades Hanging the Fan Making the Electrical Connections Installing the Optional Wall Control Finishing the Installation Installing the Adapter Plate Installing the Luminaire Module Controlling the Fan Factory Reset Application Accessories... - Page 8 TOOLS & MATERIALS REQUIRED Electrical tape Wire cutters Phillips screwdriver Step ladder Hanging Weight: 17lbs NOTE: Before discarding packaging materials, be certain all parts have been removed. NOTE: Place the parts from the hardware bag into a small container to keep them from being lost. MAC ID IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.
-
Page 9: Package Contents
PACKAGE CONTENTS Fan Blade Canopy Ring RPL-F005-52-BD-** RPL-F005-CAN-** Downrod Coupling Assembly Cover Mounting Canopy RPL-F005-CAN-** Bracket Motor Housing RPL-F005-HGRASM-** Hardware Bag Remote Control Luminaire Module RPL-F005-PARTS RC20-WT F6IN-120V-R1-30 Blade Screws Safety Cable PC Shade 1/4” x 13mm 6.5” x 19 x 2mm RPL-F005-GLA Slotted pan head Flat washer... -
Page 10: Mounting Options
MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET Standard Ceiling Slope Ceiling Caution: Remember to disconnect the power at the circuit breaker. CAUTION: To prevent electrical shock, ensure electricity has been Remove 1 set screw from mounting bracket and set turned off at the circuit breaker before beginning. aside for use in Finishing the Installation. -
Page 11: Attaching The Fan Blades
ATTACHING THE FAN BLADES Remove set screws from motor housing. Insert blades in slots, aligning with motor assembly holes. Secure blades with blade attachment screws & washers. F - 0 0 5 L... -
Page 12: Hanging The Fan
HANGING THE FAN Remove screw from hanger ball. Remove hanger ball Install coupling cover, canopy screw ring, canopy and and cross pin. downrod assembly into motor housing as shown. Loosen 2 screws, clevis pin and cotter pin. F -0 05L... - Page 13 HANGING THE FAN Align downrod and motor collar holes, re-insert pins and screws. Seat all into the mounting bracket. Rotate until ball drops and Slip up canopy and canopy screw cover. Re-install hanger ball locks into hanger bracket screw. with cross pin in correct place. F - 0 0 5 L...
-
Page 14: Making The Electrical Connections
HANGING THE FAN MAKING THE ELECTRICAL CONNECTIONS Outlet Box Connect the labled wires from fan to the corresponding wires Secure the safety cable into the structure beams using the on the receiver. wood screw, washers, and spring washers provided. Connect the labeled wires from the outlet box to the NOTE: Safety cable is required for all ceiling fan installations in corresponding wires on the receiver. - Page 15 INSTALLING THE WALL OPTIONAL CONTROL NOTE: Wall control not included. A Bluetooth wall control accessory can be purchased separately. NOTE: For multi-location wiring, skip to the next step. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outlet box that feeds back to the circuit breaker –...
-
Page 16: Installing The Optional Wall Control
INSTALLING THE OPTIONAL WALL CONTROL Wall Control 1 Wall Control 2 Wall Control 3 Install the wall control using the wiring diagram above. Individually pair each of the wall controls with the fan receiver using the pairing instruction. F-005 L... -
Page 17: Finishing The Installation
FINISHING THE INSTALLATION Secure wire connectors with supplied wire ties. Install canopy screw ring as shown. Install canopy to mounting bracket with the screw re- moved in section 2. F - 0 0 5 L... -
Page 18: Installing The Adapter Plate
INSTALLING THE ADAPTER PLATE 1. Remove one of the three mounting plate screws from the Twist and lock the adapter plate into place as shown. mounting ring and loosen the other two screws (do not remove). Using the screw from the previous step, screw-in the 2. -
Page 19: Installing The Luminaire Module
INSTALLING THE LUMINAIRE MODULE Attach LED wires from motor assembly to luminaire module. Remove 1 of 3 screws from the adapter plate and loosen the others. Secure the luminaire module with the 3 screws to the adapter plate. F - 0 0 5 L... - Page 20 INSTALLING THE LUMINAIRE MODULE Install PC shade without over-tightening. F-005 L...
-
Page 21: Controlling The Fan
CONTROLLING THE FAN Summer Mode (Counter-Clockwise) Air-Gap Switch* Wall Control Remote Pairing Unpairing Winter Mode * Air-Gap Switch only included Control Press and hold buttons To purge, press and hold buttons for 4 seconds. (Clockwise) with wall control for 10-15 seconds. NOTE: Your fan features 6 speeds. - Page 22 CONTROLLING THE FAN Breeze Mode Controlling Multiple Fans with Remote or Wall Controls Your remote and wall controls are capable of controlling Breeze Mode mimics the natural ebb and flow of winds in multiple fans. A remote or wall control has the ability to control nature by varying the fan speed.
- Page 23 CONTROLLING THE FAN Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds. Fan On/Off: Press and hold button for 4 seconds. The LED on the remote will flash green and all connected fans will beep to indicate the message has been received.
-
Page 24: Factory Reset
NOTE: Factory reset will remove remote control(s), wall control(s) Passphrase you will need to perform a Wi-Fi reset on the fan and WAC app connections. by holding down the fan speed up and fan speed down buttons NOTE: If advised by technical support, you can reset your fan to on the remote control for 10 seconds. -
Page 25: Application
Wi-Fi. For more detailed app Instructions and Smart Home Device Integration http://www.waclighting.com/SmartFanStart To use the WAC app, download it from the App Store or Google Play. Open the app to create your account. You can also log in using your Facebook or Google account. - Page 26 APPLICATION The WAC app will walk you through the main screen and show you how to create schedules, change fan speeds, dim the light, switch between Summer and Winter Modes, invite users, create groups and much more. Please refer to the WAC app instructions for more details.
-
Page 27: Accessories
Product Model Description Finish Bluetooth 6 fan speeds, dims light to 1% Wall Control WC20- Works in conjunction with WAC Smart Fan receiver (not included) Coupler DC-** Connects two downrods Designed to accommodate buildings with steeper SC-** Slope Ceiling Kit sloped ceilings up to 45°... - Page 28 ACCESSORIES Product Model Description Downrod DR-12-** 12” downrod DR-18-** 18” downrod DR-24-** 24” downrod All our downrods are 1” 1” O.D. and are threaded on the motor DR-36-** 36” downrod end to create an extra layer of security to allow for adjustments in the field DR-48-** 48”...
- Page 29 TROUBLESHOOTING My Fan Will Not Start Check main and branch circuit fuses or circuit breakers. Check line wire connections to fan and switch wire connections in the switch housings. WARNING: Make sure the main power is turned off! My Fan is Noisy Allow for 24-hour break-in period.
- Page 30 TROUBLESHOOTING My Fan is not producing Enough Air Movement If possible, please consider using a longer than included downrod. My remote or wall control is not controlling my fan Verify that the fan is receiving power by power cycling the fan. To do this: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
- Page 31 What is Pairing? Pairing is the process of connecting your WAC remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
- Page 32 La notificación de un of a defect in writing must be received by WAC within five (5) years from the date of defecto por escrito debe ser recibida por WAC dentro de los cinco (5) años a partir de purchase (or according period of time as outlined by material).
- Page 33 WAC doit recevoir un avis écrit du défaut dans un délai de cinq (5) ans à compter de la date d’achat (ou selon la période précisée dans les informations fournies).
- Page 34 F-005 L...
- Page 35 F - 0 0 5 L...
- Page 36 F - 005L waclighting.com...
