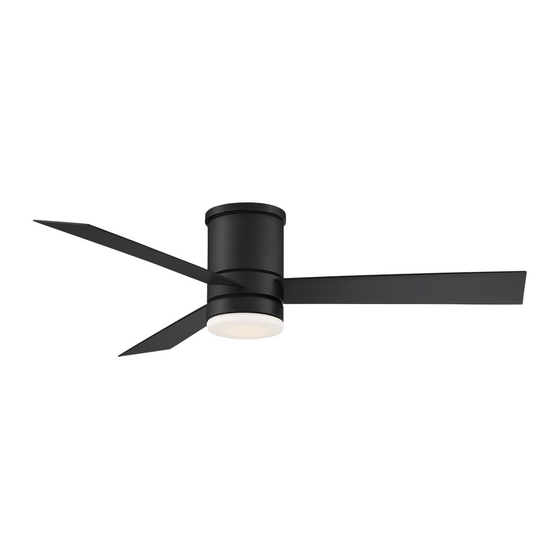

SAN FRANCISCO FLUSH
Installation Instructions
works with the
Google Assistant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the San Francisco Flush and is the answer not in the manual?

Questions and answers

Summary of Contents for WAC San Francisco Flush

  • Page 1 SAN FRANCISCO FLUSH Installation Instructions works with the Google Assistant...
  • Page 2 Please read and save instructions before installation...
  • Page 3 GENERAL INQUIRIES FAN SUPPORT For all questions about your ceiling fan please read all For fast service have the following information below included instructions, installation procedures, trouble- when you call: shooting guidelines and warranty information before starting installation • Model Name and Number For missing parts or general inquiries •...
  • Page 4 SAFETY RULES For operation, maintenance, and troubleshooting information, visit http://waclighting.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off To avoid personal injury or damage to the fan and at the circuit breaker before beginning. other items, please be cautious when working around or cleaning the fan.
  • Page 5 WAC. Substitution of parts WARNING: Do not operate fan unless fan blades are in place. or accessories not designated for use with this product by WAC could result Noise and fan damage can occur in personal injury or property damage and will void the warranty.
  • Page 6 MOTOR Wi-Fi and Bluetooth enabled Compatible with our WAC app for unlimited control The WAC app synchronizes seamlessly with smart home devices you already own works with the Google Assistant APP DOWNLOAD WALL CONTROL REMOTE CONTROL...
  • Page 7: Table Of Contents

    TABLE OF CONTENTS Package Contents Mounting Options Installing the Mounting Bracket Attaching the Fan Blades Hanging the Fan Making the Electrical Connections Installing the Optional Wall Control Finishing the Installation Installing the Adapter Plate Installing the Luminaire Module Controlling the Fan Reset App Instructions Accessories...
  • Page 8 TOOLS & MATERIALS REQUIRED Electrical tape Wire cutters Phillips screwdriver Step ladder NOTE: Before discarding packaging materials, be certain all parts have been removed. NOTE: Place the parts from the hardware bag into a small container to keep them from being lost. MAC ID IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.
  • Page 9: Package Contents

    PACKAGE CONTENTS Fan Blade RPL-FSFRAN-**BD-** Adapter Plate RPL-FSFRAN-ADP-** Hanger Plate Trim RPL-FSANFRAN-HGR-** Ring - Decorative Motor RPL-FSFRAN-TRIM-** Housing Hardware Bag Remote Control RPL-FHSANFRAN-PART RC20-WT Receiver Luminaire Module F-R3-082-052 for 52 inch F4IN-120V-R1-30 Junction Box Safety Cable F-R3-084-044 for 44 inch Machine Screws (2) Flat Washer (1) Spring Washers (2)
  • Page 10: Mounting Options

    MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET Standard Ceiling Slope Ceiling To Switch To Switch (No Neutral) 120V Wires cUL Listed Electrical Box Caution: Remember to disconnect Mounting Plate the power at the circuit breaker. Mounting Screws (Ground) (Ground) (Hot) (Hot)/ (supplied with outlet box) *Bare or Switch...
  • Page 11: Attaching The Fan Blades

    ATTACHING THE FAN BLADES Insert the blade through the slot in the housing. Align the Repeat this procedure for the remaining blades. holes in the blade with the fan motor assembly holes and secure with blade attachment screw with rubber washers hardware.
  • Page 12: Hanging The Fan

    HANGING THE FAN 1. Screws 2. Top Assembly Wood Screw Safety Cable Trim Ring 1. Remove 2 opposing screws of 4 screws and save for use in 4. Secure the safety cable to the building structure using spring washer, the Finishing the Installation Section 9. Loosen the others . flat washer, and wood screw provided.
  • Page 13: Making The Electrical Connections

    HANGING THE FAN MAKING THE ELECTRICAL CONNECTIONS 1. Connect the ground wire from the mounting bracket, the outlet box, and the receiver, all together. Continue to make Outlet all other connections per Diagram 6. Make sure all connections are made correctly or you will permanently damage the receiver.
  • Page 14 HANGING THE FAN Motor Assembly Receiver Trim Ring WARNING: Installation of this fan requires that a three-conductor cable (including ground and neutral wire) which should run between ceiling and wall outlet box. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire.
  • Page 15 INSTALLING THE OPTIONAL WALL CONTROL NOTE: Wall control not included. A Bluetooth wall control accessory can be purchased separately. Skip this section if you did not purchase a wall control. NOTE: For multi-location wiring, skip to the next step. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outlet box that feeds back to the circuit breaker –...
  • Page 16: Installing The Optional Wall Control

    INSTALLING THE OPTIONAL WALL CONTROL Wall Control 1 Wall Control 2 Wall Control 3 Install the wall control using the wiring diagram in below. Individually pair each of the wall controls with the fan receiver using the pairing instructions in section 15. F - 0 8 2 L / F- 0 84 L...
  • Page 17: Finishing The Installation

    FINISHING THE INSTALLATION Secure all wire connections with supplied wire ties to assist in canopy installation. Tuck connections neatly into ceiling outlet box. Slide the motor up to the mounting bracket and place the key hole on the motor over the screw of the mounting bracket. Turn motor until it locks in place at the narrow section of the Screws key holes.
  • Page 18: Installing The Adapter Plate

    INSTALLING THE ADAPTER PLATE Mounting Ring Adapter Plate Screw Tighten the two mounting ring screws Remove one of the three mounting plate screws from the previously loosened and the one previously mounting ring and loosen the other two screws (do not removed to secure adapter plate.
  • Page 19: Installing The Luminaire Module

    INSTALLING THE LUMINAIRE MODULE/GLASS 1. Glass Shade Adapter Plate 2. LED Luminaire Module Remove 1 screw from the adapter plate for future use and Raise glass shade up against the luminaire module, loosen the two others from the outer perimeter of the adapter and secure it to fan by turning glass clockwise until snug.
  • Page 20: Controlling The Fan

    B: Fan On/Off, Speed Up/Down power on to the fan receiver. If you wish to pair your remote to another WAC Smart Fan or if you ever need to re-pair your remote to its original C: Season (Summer/Winter) fan, press and hold the light toggle and fan toggle for 4 seconds until Air-Gap Switch: Pull tab to power off in case of emergency.
  • Page 21 CONTROLLING THE FAN Breeze Mode Controlling Multiple Fans with Remote or Wall Controls Your remote and wall controls are capable of controlling multiple fans. A remote or wall control has the ability to control Breeze Mode mimics the natural ebb and flow of winds in an unlimited number of fans with the only limitation being the nature by varying the fan speed.
  • Page 22 CONTROLLING THE FAN Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds. Fan On/Off: Press and hold button for 4 seconds. The LED on the remote will flash green and all connected fans will beep to indicate the message has been received.
  • Page 23: Reset

    NOTE: Factory reset will remove remote control(s), wall control(s) Passphrase you will need to perform a Wi-Fi reset on the fan and WAC app connections. by holding down the fan speed up and fan speed down buttons NOTE: If advised by technical support, you can reset your fan to on the remote control for 10 seconds.
  • Page 24 Wi-Fi. For more detailed app Instructions and Smart Home Device Integration http://www.waclighting.com/SmartFanStart To use the WAC app, download it from the App Store or Google Play. Open the app to create your account. You can also log in using your Facebook or Google account.
  • Page 25 APPLICATION The WAC app will walk you through the main screen and show you how to create schedules, change fan speeds, dim the light, switch between Summer and Winter Modes, invite users, create groups and much more. Please refer to the WAC app instructions for more details.
  • Page 26: Accessories

    RC20- Bluetooth Remote Control 6 fan speeds, dims light to 1% 6 fan speeds, dims light to 1% WC20- Works in conjunction with WAC Smart Fan receiver Bluetooth Wall Control (not included) F- 0 8 2 L/ F- 084 L...
  • Page 27: Troubleshooting

    TROUBLESHOOTING My Fan Will Not Start Check main and branch circuit fuses or circuit breakers. Check line wire connections to fan and switch wire connections in the switch housings. WARNING: Make sure the main power is turned off! My Fan is Noisy Allow for 24-hour break-in period.
  • Page 28 TROUBLESHOOTING My Fan is not producing Enough Air Movement If possible, please consider using a longer than included downrod. My remote or wall control is not controlling my fan Verify that the fan is receiving power by power cycling the fan. To do this: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
  • Page 29 What is Pairing? Pairing is the process of connecting your WAC remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
  • Page 30 (o según el período de tiempo indicado en el material). Quedan of a defect in writing must be received by WAC within five (5) years from the date of excluidos de la garantía todos los componentes de terceros que tengan la garantía de purchase (or according period of time as outlined by material).
  • Page 31 WAC doit recevoir un avis écrit du défaut dans un délai de cinq (5) ans à compter de la date d’achat (ou selon la période précisée dans les informations fournies).
  • Page 32 F- 0 82 L / F- 0 8 4 L...
  • Page 33 F - 082L / F - 0 84L waclighting.com...
