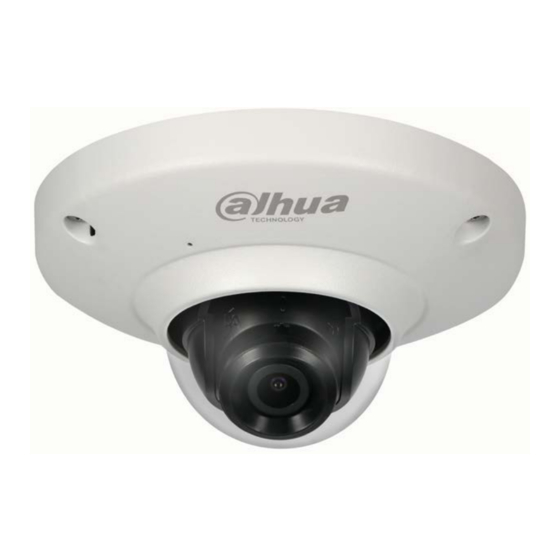

- Page 1 4 MP Fixed HDCVI Fisheye Camera A42AR2 Quick Start Guide Version 001.001 Dahua Technology USA Inc.
-
Page 2: Table Of Contents
Table of Contents Welcome........................1 Important Safeguards and Warnings ..............1 Electrical safety ....................1 Environmental Precautions ................2 Operation and Daily Maintenance ..............3 Warnings ......................3 FCC Information ....................4 FCC compliance： .................... 4 Legal Notices ....................4 Copyright ...................... -
Page 3: Welcome
1 Welcome This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting of the Dahua Multi-Sensor Panoramic Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit. -
Page 4: Environmental Precautions
• If the unit is damaged and requires service, unplug the unit from the main AC power supply and from the PoE supply and refer to qualified service personnel. Damage may include, but is not limited to: • The power supply cord or plug is damaged. •... -
Page 5: Operation And Daily Maintenance
Operation and Daily Maintenance • Do not touch the heat dissipation component of the unit. This part of the unit is hot and may cause a burn. • Do not open or dismantle the device; there are no components that a user can fix or replace. Opening the unit may cause water leakage or expose components to direct light. -
Page 6: Fcc Information
1.3 Legal Notices Copyright This user guide is ©2017, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 7: Unpacking
2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts listed below are included. If an item is missing, contact customer support or your local representative. -
Page 8: Installation And Configuration
3 Installation and Configuration 3.1 Camera and Cables The following figure depicts the type and location of each cable coming from the device. This image is intended as a reference only. Figure 3-1 Cable Connections Port Name Function Connector HDCVI Video Output Port High-definition Video Output Power Input Port DC 12V Power Input Port... -
Page 9: Device Installation
4 Device Installation This section details installing the fisheye camera to a wall or ceiling. Note that the wall or ceiling must be capable of supporting a minimum of three (3) times the weight of the camera and a bracket (if used). - Page 10 8. Route the cables from the camera through the installation medium or through the side exit port. 9. Align the three (3) holes on the camera body with the expansion bolts. 10. Insert a self-tapping screw into each hole on the camera body and then into an expansion bolt. Secure the body to the medium with a Philips-head screwdriver.
-
Page 11: Camera Control
5 Camera Control HDCVI technology allows you to set parameters for the camera and to control the camera from a Dahua HDCVI DVR. 1. Connect the camera to a Dahua HDCVI DVR. 2. From the DVR, select the Main Menu and choose Setting. Then, select the System tab and select the PTZ link, on the left-side menu. - Page 12 7. Click the Camera icon to access the Operation Menu. Figure 5-3 8. Use the following table to access the camera’s menu: Button Function Access the camera’s settings menu. Select a menu item. Select a setting value.
-
Page 13: Camera Maintenance
6 Camera Maintenance Proper maintenance will ensure consistent image quality over the life-span of the camera. 6.1 Optical Components Take care not to touch or stain the dome cover, lens, or the mirror surface. If the one of these surfaces is stained, use the following methods to clean: •... - Page 14 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
