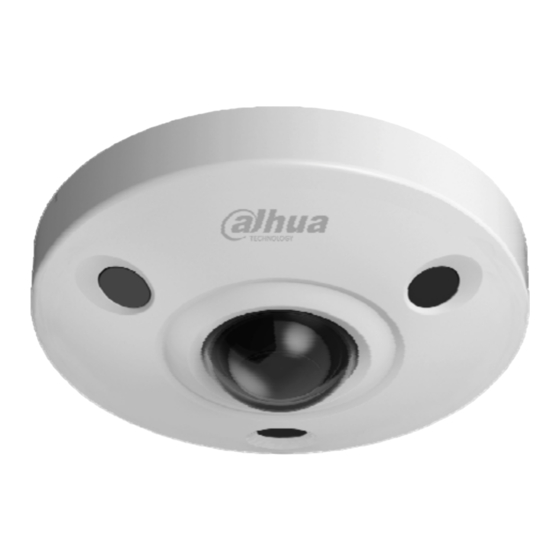

4k hdcvi fisheye camera

Advertisement

Quick Links

4K HDCVI Fisheye Camera
A83AR6
Quick Start Guide
Version 001.001
Dahua Technology USA Inc.

Advertisement

Table of Contents
loading

Summary of Contents for Dahua Technology A83AR6

  • Page 1 4K HDCVI Fisheye Camera A83AR6 Quick Start Guide Version 001.001 Dahua Technology USA Inc.
  • Page 2: Table Of Contents

    Table of Contents Welcome .......................... 1     Important Safeguards and Warnings ..............1     Electrical safety ....................1   Environmental Precautions ................. 2   Operation and Daily Maintenance ..............3   Lifting Appliance Requirement ................3   Warnings ......................3  ...
  • Page 3: Welcome

    1 Welcome This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting of the Dahua Multi-Sensor Panoramic Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit.
  • Page 4: Environmental Precautions

     If the unit is damaged and requires service, unplug the unit from the main AC power supply and from the PoE supply and refer to qualified service personnel. Damage may include, but is not limited to:  The power supply cord or plug is damaged. ...
  • Page 5: Operation And Daily Maintenance

    Operation and Daily Maintenance  Do not touch the heat dissipation component of the unit. This part of the unit is hot and may cause a burn.  Do not open or dismantle the device; there are no components that a user can fix or replace. Opening the unit may cause water leakage or expose components to direct light.
  • Page 6: Fcc Information

    1.3 Legal Notices Copyright This user guide is ©2017, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered...
  • Page 7: Disclaimer

    1.4 Disclaimer  This user guide has been compiled with great care and the information it contains has been thoroughly reviewed and verified. The text was complete and correct at the time of printing. This guide may be periodically updated to reflect changes to the product or to correct previous information and the content of this guide can change without notice.
  • Page 8: Unpacking

    2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts listed below are included. If an item is missing, contact customer support or your local representative.
  • Page 9: Installation And Configuration

    3 Installation and Configuration 3.1 Composite Cable Connections The following figure depicts the type and location of each cable coming from the device. This image is intended as a reference only. Figure 3-1 Cable Connections Port Name Function Connector Note Power port.
  • Page 10: Alarm I/O Port Configuration

    Alarm I/O Port Configuration Port Name Name Note Alarm output port 1. Use to output the alarm signal to the ALARM_OUT1 alarm device. Note: ALARM_OUT1 can only be used with ALARM_OUT_GND1 ALARM_OUT_GND1. Alarm input port 1. Use to receive the On/Off signal from ALARM_IN1 an external alarm source.
  • Page 11: Alarm Setup

    3.3 Alarm Setup Certain devices support alarm inputs and outputs, check your specific device for alarm capability. Alarm Input Refer to Figure 3-3 for alarm input configuration. The device collects that status of the alarm input port when the input signal is idle or grounded. If the input signal is connected to the 3.3V or it is idle then the device receives the alarm input signal.
  • Page 12: Device Installation

    4 Device Installation This section details installing the Multi-Sensor camera to a wall. Note that the wall or ceiling must be thick enough to install expansion bolts and must be capable of supporting a minimum of eight (8) times the weight of the camera and a bracket (if used). Caution: The wall must be capable of supporting a minimum of eight (8) times the weight of the camera and the wall mount bracket.
  • Page 13: Installing A Micro Sd Card

    4.1 Installing a Micro SD Card Remove the camera, the ceiling bracket, the mounting template, multi-purpose tool, and the hardware package from the box. If you are using an SD card, turn the camera to access the rear of the camera. Remove the two screws that secure the SD Card Cover.
  • Page 14 Apply the mounting template to the ceiling. Pre-drill the three perimeter holes for the expansion bolts, using a drill bit that is no wider than the expansion bolt. Drill the center hole (greater than 28 mm in diameter) to route the cable from the camera through the installation medium.
  • Page 15: Network Configuration

    5 Network Configuration Dahua IP cameras feature a built-in Web interface to control all aspects of camera operation. This section includes details about the supported network protocols, configuring IP addresses, and configuring alarms and local recording options. Refer to the camera’s Operations Manual for full details.
  • Page 16: Modifying The Ip Address

    5.2 Modifying the IP Address To operate the camera in your network you must assign it a valid network IP address. The default IP address is 192.168.1.108, but you may have to change this address if it conflicts with another device on the network.
  • Page 17: Accessing The Web Interface

    Click the Current Segment Search check box and enter the default Username and Password (“admin” for both) and click OK to search for the IP address of the device. Double click the device to be configured, the ConfigTool opens the Modify IP Address dialog box. Figure 5-2 Set the Mode to Static and change the Start IP, Subnet Mask, and the Gateway addresses to match your network parameters and click OK.
  • Page 18: Configuring Alarms

    Install the plug-ins according to the system prompt. Once the controls are installed IE displays the Web Interface main page. Figure 5-4 Modify the administrator password as soon as possible after you successfully logged in. 5.5 Configuring Alarms The device’s Web Interface offers a Relay Activation page to configure alarms and to set alarm responses.
  • Page 19: Configuring Local Sd Card Recording

    Select an alarm output port to activate a corresponding alarm device when an alarm occurs. Check Send Email to have the device send an email to alert when alarm occurs and ends. Check Snapshot to have the device automatically take a snapshot of the scene if alarm occurs. 5.6 Configuring Local SD Card Recording The devices Web interface contains settings to control the recording medium and to configure an alarm that triggers once the Micro SD card passes a pre-determined storage.
  • Page 20 Select the event from the Event Type pull-down menu (No SD Card, Capacity Warning, SD Card Error). Check the Enable box to activate the alarm for this event. Check the Relay-out box to enable a relay alarm. Then, specify the time in seconds to delay the alarm relay output (10 s to 300 s).
  • Page 21 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
