1. Align the Paxton Net2 Plus modules on the backplane to match the modules' mounting holes with corresponding pems.
2. Fasten spacers (provided) onto metal pems (Fig. 2a, pg. 3).
3. Mount Paxton Net2 Plus modules to spacers utilizing pan head screws (provided) (Fig. 2a, pg. 3).
Note: Paxton Net2 Plus modules have one (1) RJ45 jack and one (1) switch each.
Please make sure that they are mounted correctly, as shown in Fig. 2 below.
4. Fasten TPX2 backplane to Trove2 enclosure utilizing hardware (provided).

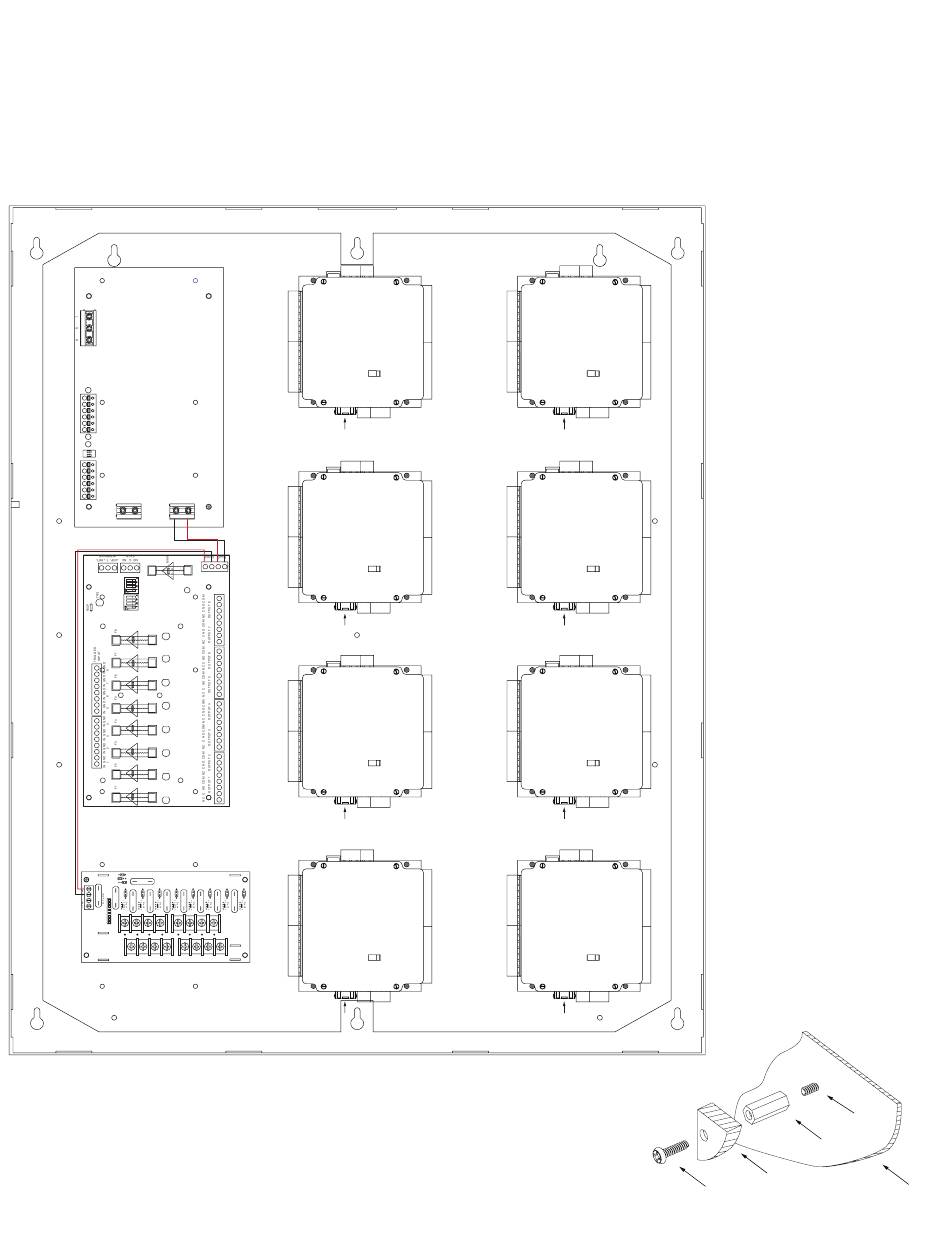

Fig. 2
Altronix
eFlow104NBV
– BAT +
– DC +
Altronix
ACM8
Altronix - PDS8
DM1 +
OFF
IN1 Fuse
IN1
10
IN2
10
3
3
3
3
3
P
OUT1
OUT2
OUT3
OUT4
OUT5
Common (--- )
N
DM2 +
1
2
3
4
Common Power Outputs (NEG)
Altronix VR6 is mounted under PDS8
T2PXK7F8V Installation Guide
Configuration of Paxton Net2 Plus Modules:
Paxton Net2 Plus
Switch
RJ45 Jack
Paxton Net2 Plus
Switch
RJ45 Jack
Paxton Net2 Plus
Switch
RJ45 Jack
DM1 +
3
3
3
Paxton Net2 Plus
OUT6
OUT7
OUT8
Switch
Common (--- )
DM2 +
5
6
7
8
RJ45 Jack
Paxton Net2 Plus
Switch
RJ45 Jack
Paxton Net2 Plus
Switch
RJ45 Jack
Paxton Net2 Plus
Switch
RJ45 Jack
Paxton Net2 Plus
Switch
RJ45 Jack
Pan Head
Screw
Fig. 2a
Pem
Spacer
Paxton
Backplane
Net2 Plus
- 3 -
