- Page 1 ZA-150 ORDERCODE D6147 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio Core ZA-150 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio ZA-150 Product Guide ™ Warning ................................... 3 Unpacking Instructions ............................. 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................5 Description of the device ............................. 6 Frontpanel .................................. 6 Backpanel .................................. 7 Terminals ..................................8 Operation .................................. -
Page 4: Warning
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: • DAP ZA-150 • 19” mounting ears • power cable - 2m •... -
Page 5: Operating Determinations
Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description Of The Device

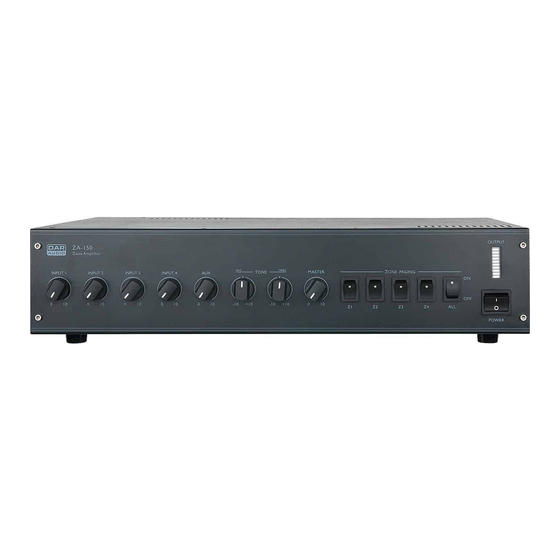

Description of the device Features The ZA-150 is a professional 100V 150W Zoneamp with 5 inputs & 4 zones. • 4 Zones, total power 150W • Inputs: 4 x Mic/Line, 1 x Aux • Pre amp output & input • 4/8 Ohm & 70/100 V output •... -
Page 8: Backpanel
12. Fan Do not obstruct the air inlet. 13. AC-selector Before connecting your ZA-150 to the mains, make sure the AC-selector is set to the proper voltage used in your country. If you’re not sure, consult a skilled technician. 14. Terminals See the next paragraph, terminals on page 8. -
Page 9: Terminals
21. Input 1 impedance/level switch This switch allows you to set up combo input 1 (30) input for line level, microphone level with phantom power or microphone level without phantom power. GND Screw This screw offers a separate ground connection. Can be useful in case of grounding problems. AC Inlet with integrated fuse holder This connector is meant for the connection of the supplied main cord. - Page 10 31. 1W/8Ω monitor output terminal Use this terminal to connect the + terminal of an 8Ω monitor speaker. In case of using several speakers, make sure that the total speaker load is the same as the impedance of the corresponding terminal. The total power rating of the low impedance speakers connected to this terminal summed, should be at least 1W.
-
Page 11: Operation
Operation Installation Remove all packing materials from the ZA-150. Check that all foam and plastic padding is removed. Secure the equipment into a 19" rack. Connect all cables. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 12: High Impedance Outputs
Example 3: using the 8Ω output with two 4Ω speakers. Fig. 7 In a low impedance system, the total speakerload should always match the amplifier impedance. This to avoid overloading the amplifier. The total speaker power should be at least the power of the amplifier to avoid damage to the speakers. - Page 13 Compensation of interference with balanced connections...
-
Page 14: Maintenance
Maintenance DAP Audio Core ZA-150 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 15: Product Specifications
Product Specifications Output Power: 150W Power outputs: 4 Ohm, 8 Ohm, 70V, 100V (terminal strip) Pre amp out/input: Input 1: Line/Microphone with phantom power (XLR/Jack combo) Input 2: Line/Microphone with phantom power (XLR/Jack combo) Input 3: Line/Microphone with phantom power (XLR/Jack combo) Input 4: Line/Microphone with phantom power (XLR/Jack combo) Aux:... - Page 16 2013 Dap Audio.
