STEP 3 – CHANGING THE SIGNAL IN
THE CAMERA

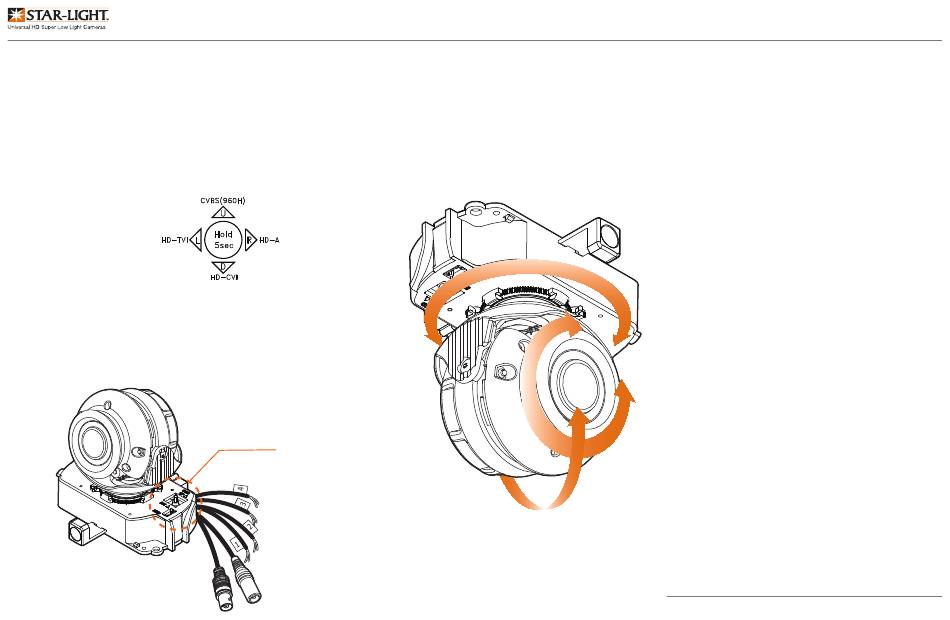

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To
switch between the signals:
a. Remove the camera's dome to access the joystick and OSD
control on the base of the camera.
b. Use the OSD Switch to switch the camera's signal.
- To switch the camera to
HD-TVI mode, press OSD
joystick to the left
for 5 seconds.
- To switch the camera to
HD-Analog mode, press OSD
joystick to the right
for 5 seconds.
- To switch the camera to CVBS
mode, press OSD joystick up
for 5 seconds.
- To switch the camera to
HD- CVI mode, press OSD
joystick down for 5 seconds.
STEP 4 – INSTALLING THE CAMERA
1. Once all cables have been connected, use the screws included with the camera to properly mount and secure the camera to the mounting surface.
2. Adjust the camera's pan, tilt and position to achieve the desired view. The cameras' max angles are:
Pan: 0° ~ 360°
Tilt: 0° ~ 75°
Rotation: 0° ~ 350°
3. Once the installation is complete, remove the protective film from the camera's dome cover.
Panning 360°
OSD joystick
Rotation 350°
Titling 75°
