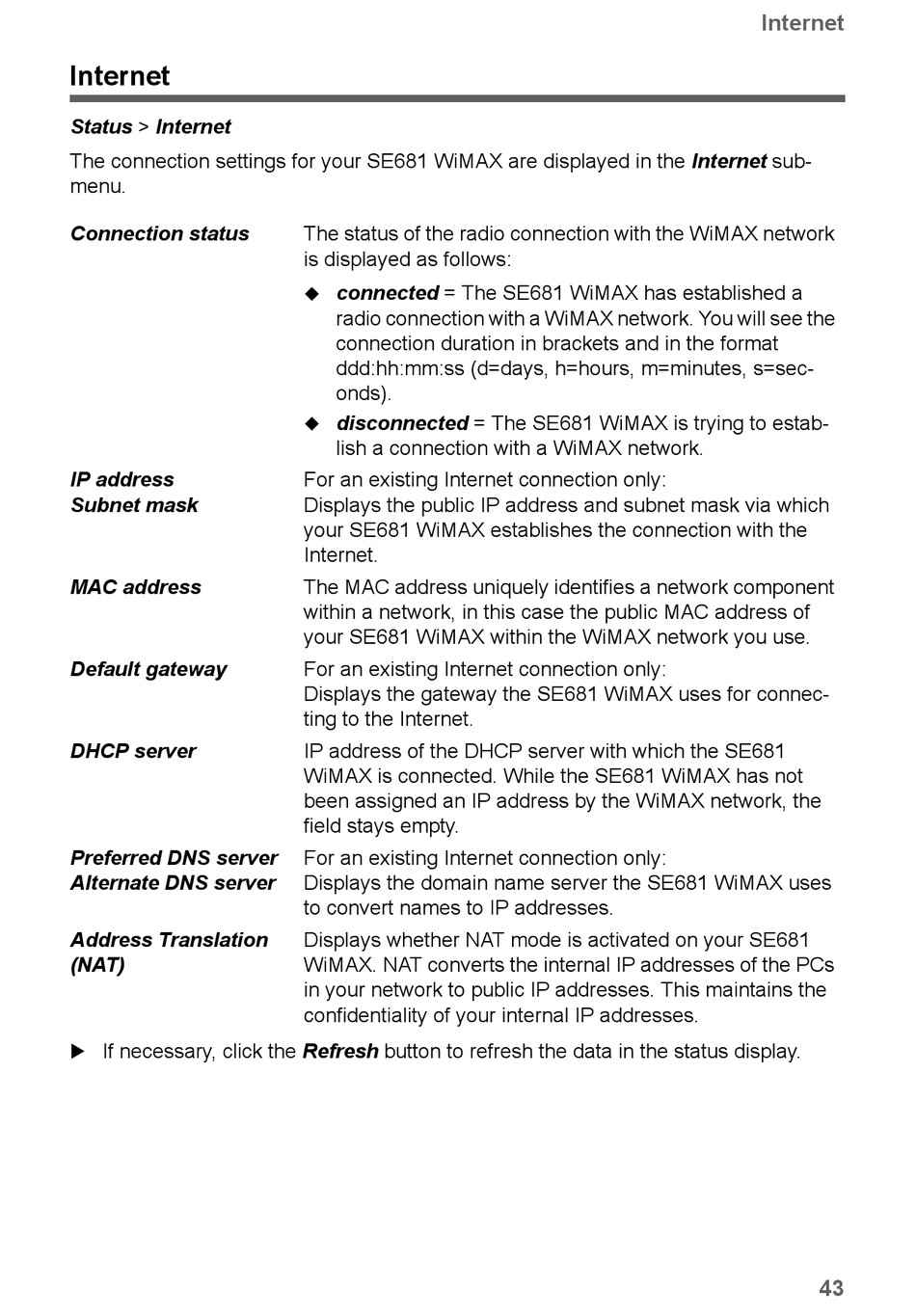

Internet

Status > Internet
The connection settings for your SE681 WiMAX are displayed in the Internet sub-
menu.
Connection status
IP address
Subnet mask
MAC address
Default gateway
DHCP server
Preferred DNS server
Alternate DNS server
Address Translation
(NAT)
If necessary, click the Refresh button to refresh the data in the status display.

The status of the radio connection with the WiMAX network
is displayed as follows:
connected = The SE681 WiMAX has established a

radio connection with a WiMAX network. You will see the
connection duration in brackets and in the format
ddd:hh:mm:ss (d=days, h=hours, m=minutes, s=sec-
onds).
disconnected = The SE681 WiMAX is trying to estab-

lish a connection with a WiMAX network.
For an existing Internet connection only:
Displays the public IP address and subnet mask via which
your SE681 WiMAX establishes the connection with the
Internet.
The MAC address uniquely identifies a network component
within a network, in this case the public MAC address of
your SE681 WiMAX within the WiMAX network you use.
For an existing Internet connection only:
Displays the gateway the SE681 WiMAX uses for connec-
ting to the Internet.
IP address of the DHCP server with which the SE681
WiMAX is connected. While the SE681 WiMAX has not
been assigned an IP address by the WiMAX network, the
field stays empty.
For an existing Internet connection only:
Displays the domain name server the SE681 WiMAX uses
to convert names to IP addresses.
Displays whether NAT mode is activated on your SE681
WiMAX. NAT converts the internal IP addresses of the PCs
in your network to public IP addresses. This maintains the
confidentiality of your internal IP addresses.
