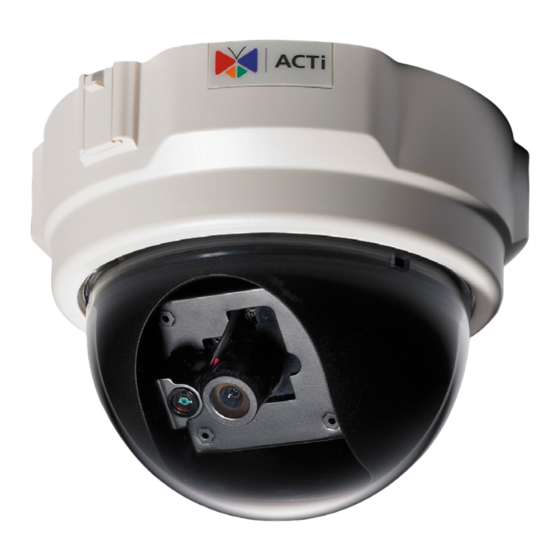

ACTi TCM-3401 Specification Sheet

Fi xe d D o m e C am e ra
TCM-3401/TCM-3411
PHOTO INDICATION
1
2
3
1 Ethernet Port
2 Reset Button
ACCESSORY OPTIONS
Lens
PLEN-0121
Dome Cover
PDCX-0101
w w w . a c t i . c o m
4
3 DC 12V Power Input
4 Audio Input / Output &
Digital Input / Output
IR Compatible, Fixed Iris,
F2.0, 2.8 mm, 92.5°
3-inch, smoke, non-vandal proof
* Latest product information: www.acti.com/product/
* Accessory information: www.acti.com/accessory/
H.264 Megapixel IP PoE Fixed
Dome / H.264 Megapixel IP D/N
• 1/3" Aptina Progressive Scan CMOS
• Day and night function with mechanical IR cut filter
(TCM-3411)
• Minimum illumination 0.5 Lux at F1.0 (TCM-3401) /
0.05 Lux at F1.0 (TCM-3411)
• Built-in f4.2mm / F1.8 Megapixel fixed lens
(It is possible to replace the bundled lens with the
optional lens)
• 18 fps at 1280 x 1024 resolution
• Selectable H.264, MPEG-4 SP, MJPEG compressions
with dual streaming
• Two-way audio
• Digital input and digital output
• Wide Dynamic Range
• Powered by PoE Class 3 / DC 12V

DIMENSION DIAGRAM

Popular Mounting Solutions
Surface Accessories not required
Wall PMAX-0308
Pendant PMAX-0101
PMAX-0103
Corner PMAX-0101
PMAX-0303
PMAX-0402
Pole PMAX-0101
PMAX-0303
PMAX-0502
Flush PMAX-1006
* For more mounting solutions, please refer to Mounting Accessory section of Buyer's
Guide or Project Planner on www.acti.com
PoE Fixed Dome
Unit: mm [inch]
+
+
+
+
+
