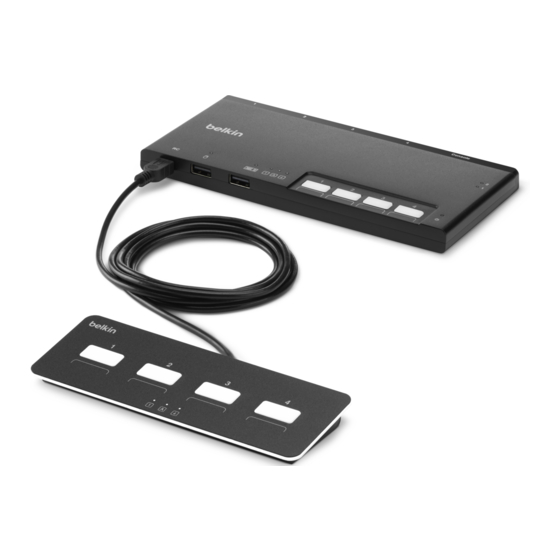

Secure Modular KVM

Switch 2- and 4-Port Series

This Belkin product is compliant with the

latest NIAP Protection Profile PSD v4.0,

which exceeds Protection Profile PSS v3.0.

Need help?

Do you have a question about the F1DN102MOD-HH-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Belkin F1DN102MOD-HH-4

Page 1 Secure Modular KVM Switch 2- and 4-Port Series This Belkin product is compliant with the latest NIAP Protection Profile PSD v4.0, which exceeds Protection Profile PSS v3.0. User Manual F1DN102MOD-HH-4 F1DN104MOD-HH-4 F1DN102MOD-BA-4 F1DN102MOD-PP-4 F1DN104MOD-PP-4 F1DN104MOD-BA-4 F1DN102MOD-DD-4 F1DN104MOD-DD-4 F1DN202MOD-BA-4 F1DN202MOD-HH-4 F1DN204MOD-HH-4...
Page 2 Color Code Label Installation..........17 Belkin Modular Secure KVM Switch...
Page 3 SeCTIonS Table of Contents Package Contents Thank you for purchasing this Belkin Secure Modular KVM. This Switch is designed for use in secure environment installations. The Switch offers safe centralized control, which prevents unintended data transfer between computers running at Belkin Secure Modular KVM different security levels.
Page 4 – The product shows obvious signs of breakage or loose internal parts. – In case of external power supply – If power supply overheats, is broken or damaged, or has a damaged cable. Belkin Modular Secure KVM Switch Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 5 Do not connect product to computing devices: That include telecommunication equipment; That include frame grabber video cards; That include special audio processing cards. Belkin Modular Secure KVM Switch Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 6 EDID emulation is done at power up and blocks all EDID/ MCCS writes. For DisplayPort video, filtration of AUX channel exists to reject unauthorized transactions. Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS > BaCK To TaBle of ConTenTS >...
Page 7 If for any reason the tamper-evident seal is missing, appears disrupted, or looks different than the example shown here, please avoid using the product and call Belkin Technical Support at: (800) 282- 2355. anti-Tampering System This product is equipped with a holographic anti-tamper system.
Page 8 SeCTIonS Table of Contents other features The Belkin Secure Modular KVM was designed with the user in mind for today’s IT uSB Support environment. Below is a summary of some features incorporated into the Switch. The Switch is compatible with USB technology and supports plug-and-play connectivity with USB computers, keyboards, and mice.
Page 9 Colors can be associated with an established network to F1DN-MOD-MOUNT is available for under desk mounting facilitate port identification and reduce user switching error. PN F1DN-MOD-VMOUNT is available for VESA mounting Contact Belkin sales for details. Port naming uSB Connectors...
Page 10 The Modular SKVM can accommodate DP, HDMI, DVI-D, and VGA PC connections. All connections are provided by Belkin integrated cables only available from Belkin. Belkin DisplayPort, HDMI, DVI, USB- C, or VGA /USB KVM Cable Kits for your Switch will ensure superior performance. These cables offer the highest quality possible to ensure optimal data and video transmission.
Page 11 USB-integrated devices, may not be fully supported due to security policy. If they are supported, only classical keyboard (HID) operation will be functional. It is recommended to use standard USB keyboards. Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 12 Mouse USB Input f. Mouse LED g. Remote Control input h. Active Display Indication LED (EDID) i. Console Cable Connectors j. 1-4 PC Cable Connectors k. Power input connector Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 13 SeCTIonS Table of Contents unit display diagram, Back View (F1DN204MOD-BA-4 model shown) Console Ports Power Input Connector Host Ports Remote Control Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 14 Input 100 to 240VAC no. of users Supported Max. no. of Computers Supported Either 2, 4 or 8 no. of Monitors Per Computer Supported Either 1 or 2 Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 15 Designed in California. Assembled in US with US and foreign components. Product lifecycle 5 years warranty 3 years (extended warranty available) Security accreditation Common Criteria Validated to NIAP Protection Profile PSD Ver. 4.0 Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 16 Mount brackets are not included with the Switch. continuously, please remove product from service immediately and contact Belkin Technical Support at (800) 282-2355. Consider the following when deciding where to place the Switch: Do not connect product to computing devices: •...
Page 17 Step 2 – Power up 2.1 Turn the monitor on. 2.2 Power up the Belkin Secure Modular KVM by connecting the power. The display diagnostic LEDs should be solid green a few seconds after power up. This indicates the display EDID information has been captured and secured.
Page 18 If the problem persists, please refer to the Troubleshooting section in this The USB cable must be connected directly to a free USB port on the User Manual. computer, with no USB hubs or other devices in between. Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 19 Port name label The included network-name and blank labels can be placed in the area underneath The Belkin Secure Modular KVM’s port-selector buttons can be color- coded for the port-selector buttons for port identification. easier identification. Attach the correct color label near the channel buttons or on the included remote control.
Page 20 Please note that the default port at power-up is port 1. In case of a power failure or if the power is cycled, the Switch will default to port 1. Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 21 • Check that the power switch is in the ON position. noTe: This Switch is equipped with holographic anti-tamper labels. Any attempt to open the enclosure will activate the anti-tamper labels. Belkin Modular Secure KVM Switch BaCK To TaBle of ConTenTS >...
Page 22 • Ensure that the power switch is in the ON position. and monitor. • Check that the display is turned on. • With everything connected, power-cycle the Belkin Secure Modular KVM to • Check that the cables are connected, and check that the display input is reset the video.
Page 23 This is normal operation. The lock-state information is fully functional. Due to the address: gov_security@belkin.com security of the Belkin Secure Modular KVM and known exploitation of lock-state The gov_security@belkin.com email address is not intended to reach technical information for leakages, the LED status is not supported on the keyboard, instead support on Belkin products or services.
Page 24 Conformity with fCC rules for electromagnetic Compatibility Belkin International, Inc., limited 3-Year Product warranty We, Belkin International, Inc., of 555 S. Aviation Blvd. Suite 180, El Segundo, CA 90245-4852, Please see declare under our sole responsibility that the products described in this manual comply http://www.belkin.com/us/support-article?articleNum=287088 for complete...
Page 25 Table of Contents what is not covered by this warranty? All above warranties are null and void if the Belkin product is not provided to Belkin Belkin reserves the right to review the damaged Belkin product. All costs of shipping for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin...
Page 26 IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Page 27 © 2022 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac OS is a...
