Summary of Contents for Gorenje FH330WW
- Page 1 Instructions for use Freezer chest...
-
Page 2: Table Of Contents

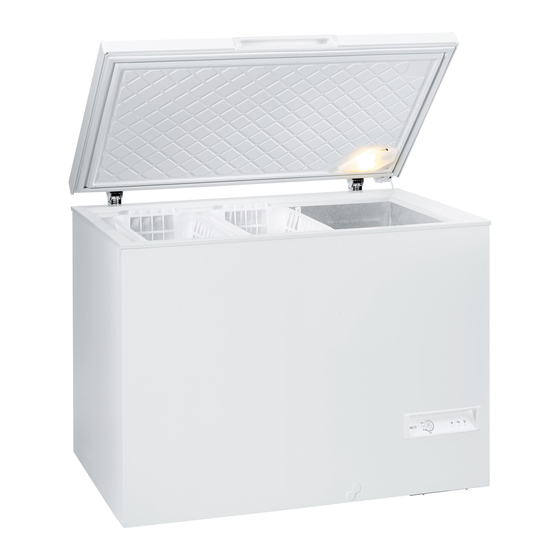

Freezer chest We thank you for the confi dence you have shown by purchasing our appliance. We wish you fi nd a lot of pleasure in its use. The freezer chest is intended for use in household, for freezing fresh food and long-term storage of frozen food (up to one year, depending on the type of food). -
Page 3: Before Using The Appliance For The Fi Rst Time
Before using the appliance for the fi rst time • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 consequence of the appliance function as described in the attachment to the instruction manual. Ventilation slots should always be clean and unobstructed. Do not use any mechanical accessories or other methods to defrost the appliance, except for those expressly recommended by the manufacturer.
-
Page 5: Advice For Saving Power
Advice for saving power • Install the appliance as specifi ed in the instruction manual. • Do not open the appliance cover ore often than necessary. • In models with condenser units on the back wall of the appliance, check occasionally to make sure that air circulation behind the appliance is indeed unobstructed and that the condenser unit is always clean (see section “Troubleshooting”). -
Page 6: Installation And Connection
Food storage time in • In case of a fault in appliance operation or power supply case of fault or power failure, do not open the freezer chest. If the appliance is out of failure order for more than two days, empty the freezer and use the food or make sure it remains frozen. - Page 7 The appliance will withstand short-term deviations from the nominal voltage, but not more than +/- 6%. Air circulation around • The appliance should not be integrated in a cupboard or other the appliance furniture. Allow at least 2-3 centimetres of clearance around the chest for free circulation of air.
-
Page 8: Operating The Appliance
Operating the appliance A Temperature settings knob – Switching the appliance on/off – Activating the super freeze function B Signal light on: Super freeze function is activated C Signal light on: The appliance is powered (there is voltage in the appliance) D Signal light on: High temperature alarm Switching the appliance on/off... - Page 9 Switching off: Rotate the A knob back to the position in which the arrow is aligned with the symbol (appliance will remain powered, i.e. there will still be electric current in the appliance). The signal light C will remain on. Selecting the temperature in the appliance...
- Page 10 Starting up the appliance Switch on the appliance and rotate the thermostat knob to the super freeze position . All three signal lights will be on (B, C, D). Insert the fresh food into the appliance several hours after the signal light D went off.
- Page 11 • Maximum amount of fresh food that may be inserted at once is specifi ed on the appliance rating plate. • If the amount of food to be frozen exceeds the indicated amount, the quality of freezing will be inferior; in addition, the quality of the food already frozen will deteriorate.
-
Page 12: Defrosting And Cleaning The Appliance
Approximate storage time for frozen food Type of food Storage time (months) Vegetables Fruit Bread, pastry Milk Prepared food dish Meat: beef Veal Pork Poultry Venison Chopped Smoked sausage Fish: lean Entrails Defrosting and cleaning the appliance Defrosting the appliance •... - Page 13 Removing frost by thawing If the frost layer is too thick to be scraped off, it has to be at least partially melted. • Remove the plug (1) on the front side of the freezer. • Insert the supplied tube into the opening (2) an place a container to collect the water from the melted frost underneath •...
-
Page 14: Troubleshooting
Troubleshooting Faults may appear during appliance operation. Following is a list of some faults that are most commonly the result of improper use and which you can fi x yourself. Problem Cause Remedy After connecting to the mains, the The outlet/socket is not powered. appliance does not work. - Page 15 The bulb is a consumable and therefore not covered by warranty. WE RESERVE THE RIGHT TO CHANGES THAT DO NOT AFFECT THE APPLIANCE FUNCTIONALITY. Instructions for use of the appliance can also be found on our website at www.gorenje.com / < http://www.gorenje.com />...
- Page 16 MEH TERMOSTAT ZS216, ZS316, ZS416, ZS236, ZS336, ZS436, ZS231, ZS331, ZS431 en (05-16)
