- Page 1 DETAILED INSTRUCTIONS FOR USE OF FREEZER CHEST www.gorenje.com www.gorenje.com...
- Page 2 Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. http://www.gorenje.com Important safety warning...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 SAFETY AND WARNING INFORMATION APPLIANCE 11 INSTALLING YOUR NEW APPLIANCE DESCRIPTION 13 APPLIANCE DESCRIPTION 14 OPERATING THE APPLIANCE DEFROSTING 15 DEFROSTING AND CLEANING 16 CLEANING AND CARE THE APPLIANCE MISCELLANEOUS 17 TROUBLESHOOTING 19 DISPOSAL OF THE APPLIANCE... -
Page 4: Important Notes And Precautions
IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 5 According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 6 • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
- Page 7 flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.
- Page 8 • You must not operate the appliance without the interior lighting lamp cover. • The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C.
- Page 9 • Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.
- Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
-
Page 11: Installing Your New Appliance
INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the first time, you should review the following tips. Ventilation of appliance It is necessary to have good ventilation around the freezer to allow for the dissipation of heat, high efficiency, and low power consumption. For this reason, sufficiently cleared space should be available around the freezer. - Page 12 Installing the handle and hook 1. How to assemble the handle: Handle Cover Lock Hook Screw Handle 1. Take out the four screws from the Below Lock Hook plate of the handle; 2. Use the Philips type screws to fasten the handle.
-
Page 13: Appliance Description

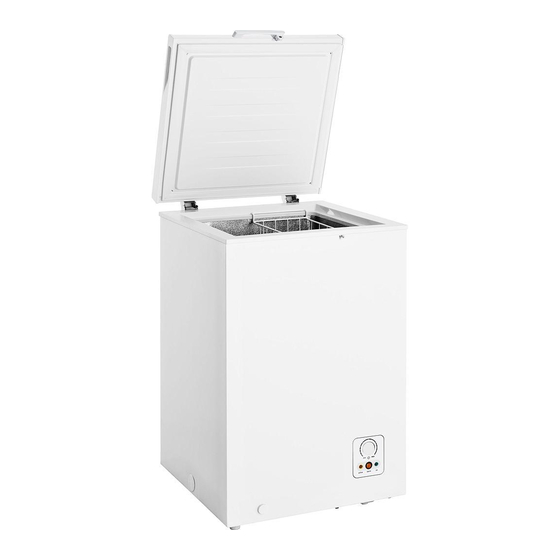

APPLIANCE DESCRIPTION 1. Door handle (different handle 7. Light On options) 8. Light Alarm 2. Door 9. Light Active 3. Hinge 10. Foot/wheels (some models only) 4. Basket (some models only) 11. Drain 5. Power supply cord with plug 12. Temperature control knob 6. -
Page 14: Operating The Appliance
OPERATING THE APPLIANCE TEMPERATURE SETTING A Temperature settings knob – Switching the appliance on/off B Signal light on: The appliance is powered (there is voltage in the appliance) C Signal light on: High temperature alarm D Signal light on: Cooling system operates To adjust the temperature inside the freezer compartment, adjust the temperature control dial on front-bottom side of the chest freezer. -
Page 15: Defrosting
DEFROSTING You should defrost the freezer compartment two or three times a year when the ice is about 4 mm thick. to defrost, follow these steps: • Set the thermostat to MAX at least 12 hours before defrosting. • After this period has elapsed, switch off the freezer compartment by removing the plug from the main power supply. -
Page 16: Cleaning And Care
CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Warning! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket. -
Page 17: Troubleshooting
TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself. - Page 18 Problem: Solution • Is the power supply interrupted? • Is the power cord plug disconnected from the wall outlet? No refrigeration at all • Are the shop`s power fuses blown and/or circuit breaker activated? • Is the temperature control turned off? •...
-
Page 19: Disposal Of The Appliance
DISPOSAL OF THE APPLIANCE It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1. - Page 20 Gorenje, d.d. Partizanska 12 SI - 3320 Velenje, Slovenija info@gorenje.com www.gorenje.com...
