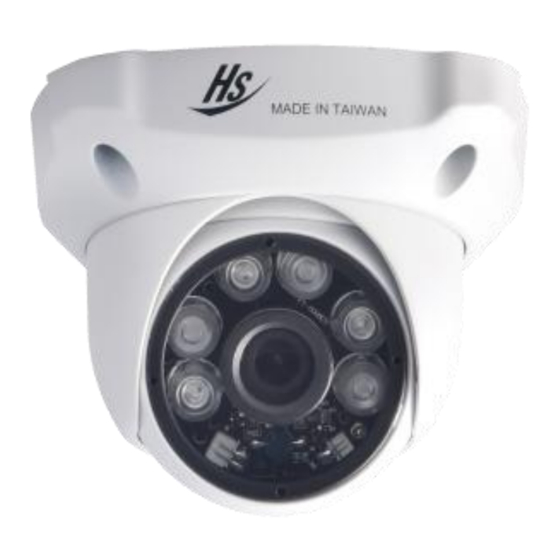

Hi Sharp HS-4IN1-D073AA Manual

Hd analogue camera
Hide thumbs

Advertisement

Quick Links

Download this manual

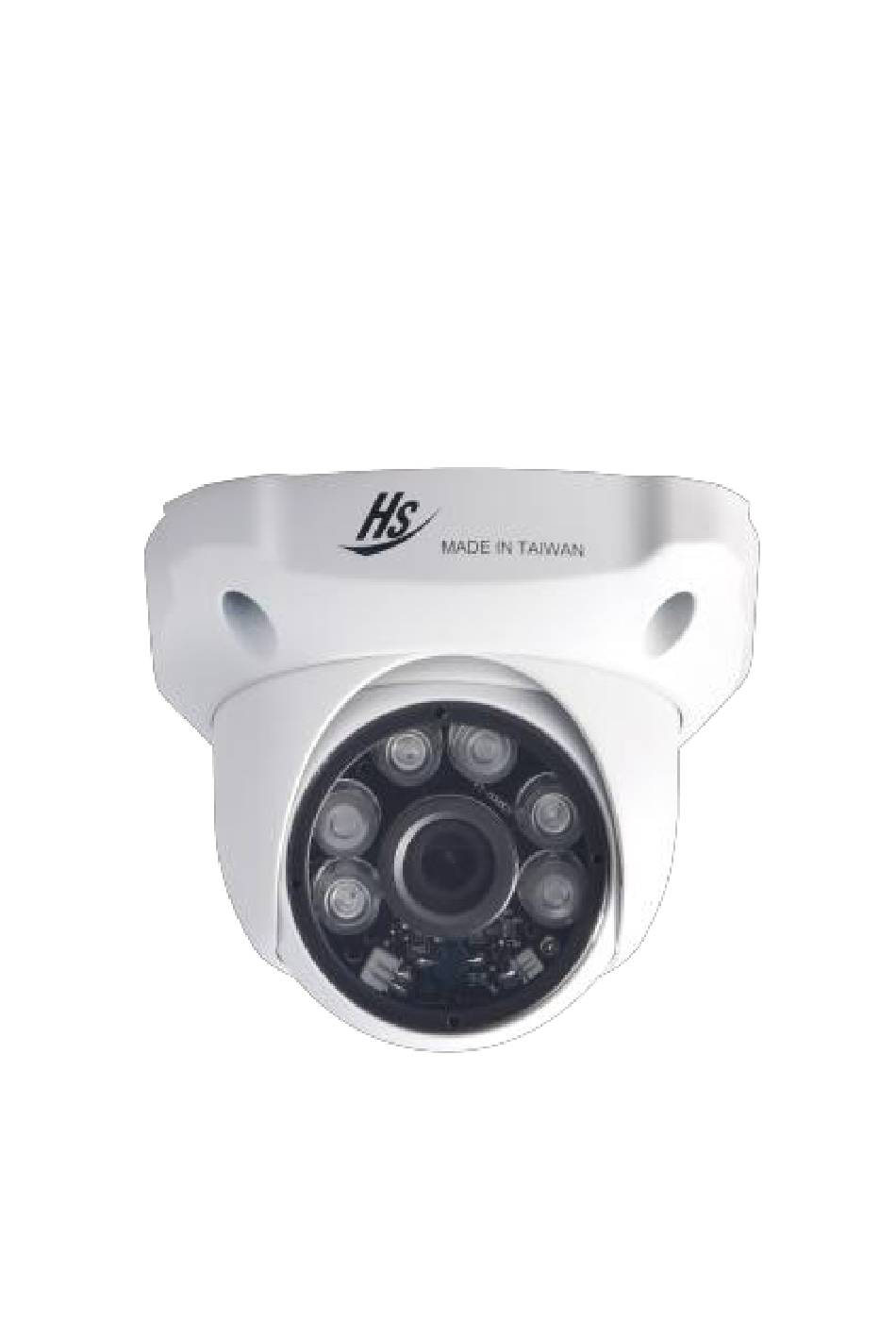

HD Analogue Camera_ Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HS-4IN1-D073AA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hi Sharp HS-4IN1-D073AA

Summary of Contents for Hi Sharp HS-4IN1-D073AA

  • Page 1 HD Analogue Camera_ Manual...

  • Page 2: Table Of Contents

    Contents SAFETY PRECAUTIONS ............. 3 Specification ................. 4 Product contents ................. 5 Product overview ................ 6 Dimension ..................7 COC (control over coaxial) function ........8 OSD Menu ..................9 Connection ................. 14...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read before using The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be sufficient magnitude to constitute risk of electrical shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 4: Specification

    Specification 1/2.9” SONY CMOS : 2.0 Mega Image unit Resolution 1920(H) x 1080(V) Video Output AHD / CVI / TVI / CVBS Synchronization Internal Scanning System 2:1 interlace S/N Ratio More than 60 dB ( AGC OFF) Electronic Shutter Auto 1/60 (1/50) ~ 1/50,000 sec Min.

  • Page 5: Product Contents

    Product contents Item Figure Trapping Screws × 2 Anchor × 2...

  • Page 6: Product Overview

    Product overview Item Description Camera ① BNC cable ② Power cable (DC 12 V± 10%) ③...

  • Page 7: Dimension

    Dimension Unit : mm...

  • Page 8: Coc (Control Over Coaxial) Function

    COC (control over coaxial) function ① Enable the channel which you want to configure, and choose COC (control over coaxial) function under PTZ Protocol page. ② Click the right button of the mouse, choose PTZ Control. ③ Click ” Iris + “ to open OSD menu. Icon Description Open the OSD menu of camera / Enter...

  • Page 9: Osd Menu

    OSD Menu Notice : ”(xxx)”means (default value) LENS MANUAL (Default) MODE OUTDOOR MIN SHU 1/30 (DEFAULT) MAX SHU (1/2000),1/5000,1/10000,1/50000, 1/60,FLK,1/240,1/480,1/1000 RETURN INDOOR IRIS SPEED 0~15(8) RETURN RET,SAVE&END EXPOSURE SHUTTER 1/30,1/60,FLK,1/240,1/480,1/1000,1/2000,1/5000,1/10000,1/50 000,X2,X4,X6,X8,X10,X15,X20,X25,X30,AUTO (AUTO) 0-15 (13) SENS-UP AUTO SENS-UP X2,X4,X6,X8,X10,X15,X20,X25, (Default) X30,(X2) RETURN RET,SAVE &...
  • Page 10 BLACK MASK ON, OFF (ON) LEVEL 0-100 (20) MODE ALL DAY NIGHT 0-255 (48) (Default) LEVEL RETURN RET,SAVE & END  DEFAULT RETURN RET,SAVE & END WHITE BAL ATW (Default) AWC →SET INDOOR OUTDOOR MANUAL BLUE 0-100 (63) 0-100 (43) RETURN RET,SAVE &...
  • Page 11 LMNOPQRSTUV WXYZ▲→←↑↓( ) ¯-_■/=&:~,. ←→ CLR POS END D-EFFECT FREEZE OFF,ON (OFF) MIRROR OFF,MIRROR,V-FLIP,ROTATE (OFF) NEG.IMAGE OFF,ON (OFF) RETURN RET,SAVE & END MOTION OFF (Default) SELECT AREA1,AREA2,AREA3,AREA4 (AREA1) DISPLAY POSITION, (Default) SIZE,RET,AGAIN SENSITIVITY 0-100 (64) COLOR GREEN,BLUE,WHITE,RED (GREEN) TRANS 0.00/1.00/0.75/0.25 (1.00) ALARM VIEW ALL,OFF, BLOCK,...
  • Page 12 BLUE,YELLOW,GREEN,CYAN (WHITE) TRANS 1.00/0.25/0.50/0.75 (1.00)  DEFAULT RETURN RET,SAVE & END LANGUAGE HEB,ARB,ENG,CHN1,CHN2,GER,FRA,ITA,SPA,POL,RUS,POR, NED,TUR,KOR, JPN (ENG) DEFECT LIVE DPC ON (Default) 0-255 (70) LEVEL LEVEL 0-100 (50) RETURN RET,SAVE & END WHITE DPC ON (Default) POS/SIZE POSITION, SIZE,RET,AGAIN START CLOSE THE IRIS THEN PRESS ENTER DPC VIEW...
  • Page 13 RETURN RET,SAVE & END ADJUST SHARPNESS AUTO LEVEL 0-10 (6) (Default) START AGC 0~255 (70) END AGC 0~255 (200) RETURN RET,SAVE & END MONITOR LCD (Default) GAMMA USER ,0.45,0.50,0.55,0.60,0.65, 0.70,0.75,0.80,0.85,0.90,0.95, 1.00 (USER) BLUE GAIN 0~100 (50) RED GAIN 0~100 (50) RETURN RET,SAVE &...

  • Page 14: Connection

    Connection Step 1. Turn clockwise to lock. Step 2. Make sure the connection is tightened. Step 3. BNC cable Connect BNC cable and Power cable power cable. ※NOTICE : If necessary, please install 2 anchors before the first step. 85-AAD073-A502G-A...
