Hi Sharp HS-CW8301 Manual

Thank you for purchasing our product.
Please read this User's Manual before
using the product. Change without Notice
White Light LED + IR + Motion detected + PIR
1. Intelligent camera supported motion detection system with white
light and IR LED
2. Unlike other general IR cameras which can only present B/W
image at night, exclusively design as a motion detection system to
activate the white light LED within 3M~7M camera lens range
distance in color image, in the other hand when IR is ON, shows
B/W image only.
3. Power saving control, also it can be an auxiliary lighting and
warning purpose

SAFETY PRECAUTIONS

Please read before using
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of insulated dangerous Voltage within the
product's enclosure that may be sufficient magnitude
to constitute risk of electrical shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operation and maintenance (servicing) instructions in
the literature accompanying the appliance.
1. Please read the service manual in details before using.
2. Don't try to disassemble the chassis or the part easily , in case
that touch the power by mistake , is shocked by electricity the
danger or caused inside parts to be damaged ,
3. This product is a IP- 65 waterproof camera。
4. Do not attempt to service this unit yourself unless you are
authorized to do so. Opening cover may exposure you to
dangerous voltage or other hazards. Refer all servicing to
qualified personnel only.
5. When being regular, please lock the parts firmly first to prevent
the machine damage.
6. Please connect correctly in accordance with the regulation,
prevent the machine from using , or striking improperly.
7. Please don't use any organic solution or the corrosively sanitizer
to insert and wipe away the chassis outside . While inserting and
wiping away, please turn off the power, and use the clean cloth is
stained with letting a small amount of branch water, insert and
wipe away appearance.
8. Please don't use the camera under the following abominable
environments: Temperature
Centigrade, or is higher than +50 degrees Centigrade.
3D Free Angle Camera
is lower than -10 degrees
3
CONTENT TABLE
CONTENT TABLE...................................................................... 2
SAFETY PRECAUTIONS.............................................................. 3
FUNCTION............................................................................... 4
SENSOR....................................................................... 4
LENS........................................................................... 4
IR LENS........................................................................ 4
Power and Video Output Jack........................................... 5
INSTALL STEP.... ....................................................................... 7
SPECIFICATIONS....................................................................... 9
DIMENSION............................................................................. 10
IR & White light active...................................................................11

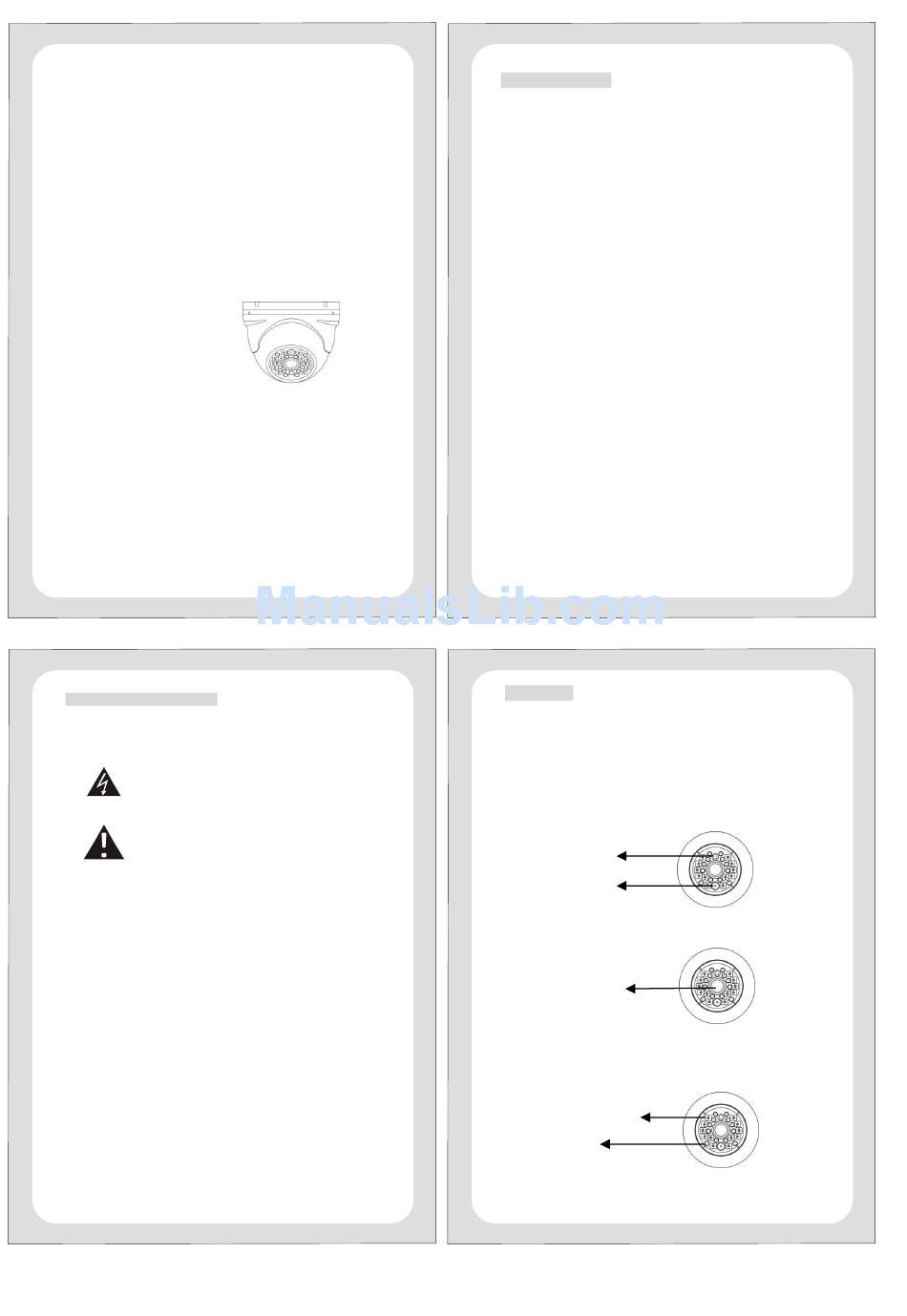

FUNCTION
The camera includes auto white balance mode(AWB)，auto capture
color temperature. The range is 2400°K~9400°K。
SENSOR：Auto Cell Device Sensor, the IR LED would on when night
comes to make up lightness. IR LED would not on in the day,
to reduce power consumption. Illumination is 13 LUX (LED
on) / 15LUX(LED off)。
D&N SENSOR
PIR SENSOR
LENS：Super sensitivity sensor IRIS (BOARD LENS 6.0mm)
LENS
IR LED：IR LED x12, angle 35˚ / White light LED x 12, angle 60˚
White light LED
IR LED
4
2
