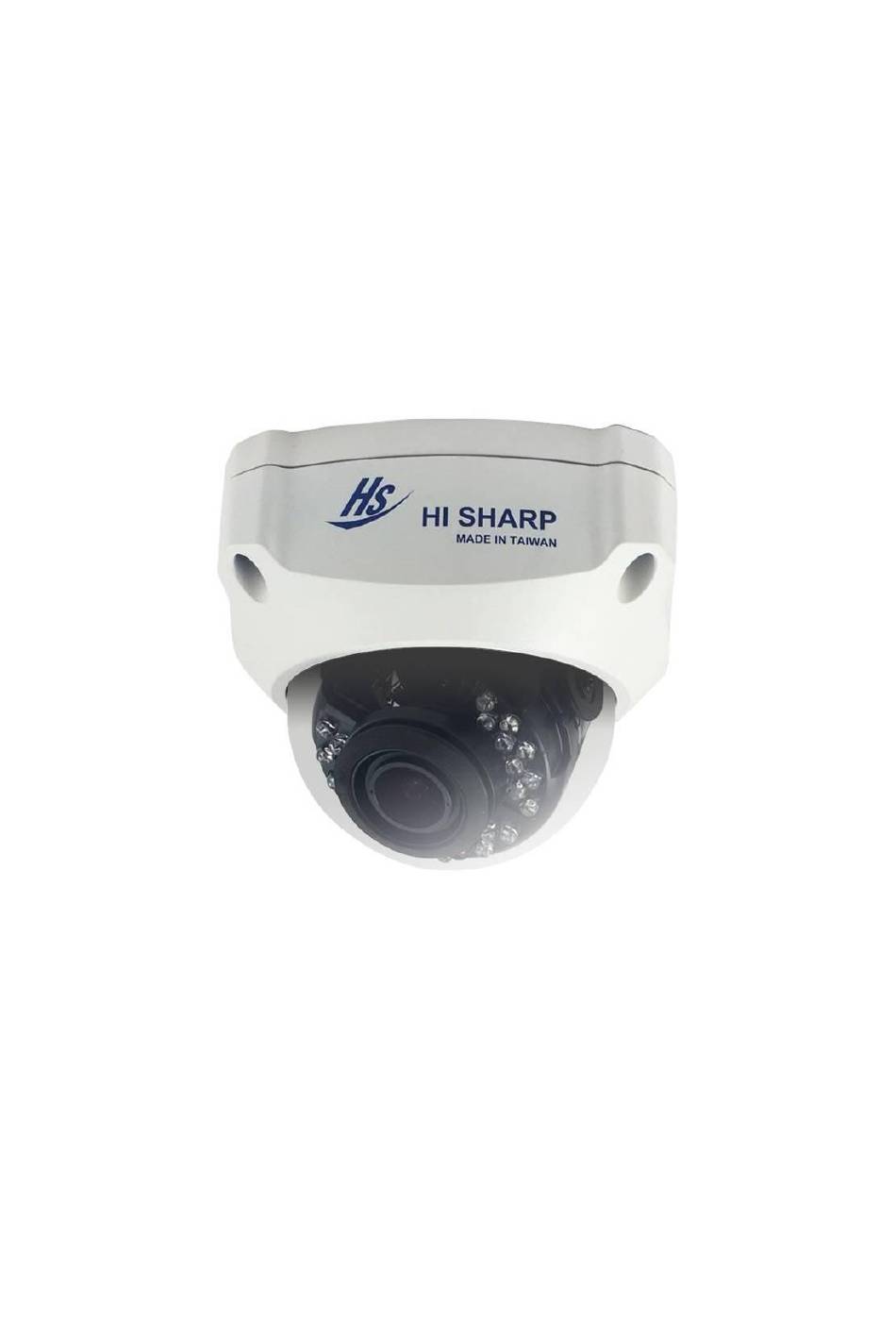

  • Page 1 HD Analogue Camera_ Manual...

  • Page 2: Table Of Contents

    Contents SAFETY PRECAUTIONS ..........3 Specification ..............4 Product contents ............. 5 Product overview ............6 Dimension ................ 7 COC (control over coaxial) function ......8 OSD function ..............9 OSD Menu ..............10 Lens adjustment ............15 Connection ..............16...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read before using The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be sufficient magnitude to constitute risk of electrical shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 4: Specification

    Specification 1/3” SONY CMOS : 2.0 Mega Image unit Resolution 1920(H) x 1080(V) Video Output AHD / CVI / TVI / CVBS Synchronization Internal Scanning System 2:1 interlace S/N Ratio More than 55 dB ( AGC OFF) Electronic Shutter Auto 1/60 (1/50) ~ 1/50,000 sec Min.

  • Page 5: Product Contents

    Product contents Item Figure Trapping screws × 3 Anchor × 3 Wrench × 1...

  • Page 6: Product Overview

    Product overview ① ② ⑤ ④ ③ Item Description ① Power cable (DC 12 V± 10%) ② BNC cable ③ OSD button ④ Camera ⑤ Lens...

  • Page 7: Dimension

    Dimension Unit : mm...

  • Page 8: Coc (Control Over Coaxial) Function

    COC (control over coaxial) function ① Enable the channel which you want to configure, and choose COC (control over coaxial) function under PTZ Protocol page. ② Click the right button of the mouse, choose PTZ Control. ③ Click ” Iris + “ to open OSD menu. Icon Description Open the OSD menu of camera / Enter...

  • Page 9: Osd Function

    OSD function Suppose you buy a product with OSD function, please refer to the following description: Figure Description Open the OSD menu of camera / Enter ※ Push the button about 5 sec to switch NTSC/PAL Direction button, in order to choose the item that you want to config.

  • Page 10: Osd Menu

    OSD Menu Notice : ”(xxx)”means (default value) LENS MANUAL (Default) EXPOSURE SHUTTER 1/30,1/60,FLK,1/240,1/480,1/1000,1/2000,1/5000,1/10000,1/50000, X2,X4,X6,X8,X10,X15,X20,X25,X30,AUTO (AUTO) 0-15 (13) SENS-UP AUTO SENS-UP X2,X4,X6,X8,X10,X15,X20,X25, (Default) X30,(X2) RETURN RET,SAVE & END BRIGHTNESS 1-100 (50) D-WDR LEVEL 0-8 (5) RETURN RET,SAVE & END AUTO (Default) DEFOG OFF (Default) AUTO...
  • Page 11 WHITE BAL ATW (Default) AWC →SET INDOOR OUTDOOR MANUAL BLUE 0-100 (63) 0-100 (43) RETURN RET,SAVE & END D →N(AGC) DAY＆ AUTO 1-255 (168) D →N(DELAY) NIGHT 0-60 (5) N →D(AGC) 1-255 (80) N →D(DELAY) 0-60 (5) RETURN RET,SAVE & END COLOR BURST ON, OFF (OFF)
  • Page 12 SELECT AREA1,AREA2,AREA3,AREA4 (AREA1) DISPLAY POSITION, (Default) SIZE,RET,AGAIN SENSITIVITY 0-100 (64) COLOR GREEN,BLUE,WHITE,RED (GREEN) TRANS 0.00/1.00/0.75/0.25 (1.00) ALARM VIEW ALL,OFF, BLOCK, TYPE OUTLINE (ALL) OFF,ON (ON) VIEW ALARM OFF,ON (ON) TIME 1-15 (3) RETURN RET,SAVE & END  DEFAULT RETURN RET,SAVE & END PRIVACY OFF (Default) SELECT...
  • Page 13 ON (Default) 0-255 (70) LEVEL LEVEL 0-100 (50) RETURN RET,SAVE & END WHITE DPC ON (Default) POSITION, POS/SIZE SIZE,RET,AGAIN CLOSE THE IRIS START THEN PRESS ENTER DPC VIEW ON, OFF (OFF) LEVEL 0-60 (15) 0-14 (14) X2,X4,X6,X8,X10, SENS-UP X15,X20,X25,X30 (X8) RETURN RET,SAVE &...
  • Page 14 1.00 (USER) BLUE GAIN 0~100 (50) RED GAIN 0~100 (50) RETURN RET,SAVE & END BLUE GAIN 0~100 (50) RED GAIN 0~100 (50) RETURN RET,SAVE & END ON, OFF (ON) VIDEO. OUT NTSC,PAL RETURN RET,SAVE & END SAVE & END,NOT SAVE,RESET（SAVE & END） EXIT...

  • Page 15: Lens Adjustment

    Lens adjustment Step Figure wrench to loosen the 1. Use the screws. 2. Remove the cover and adjust lens. 3. Cover it back and use the wrench to lock the screws.

  • Page 16: Connection

    Connection Step Figure wrench to loosen 1. Use the the screws. 2. Remove the cover and lock the screws to fix the base. 3. Cover it back and use the wrench to lock the screws. 4. Connect BNC cable and BNC cable power cable.
