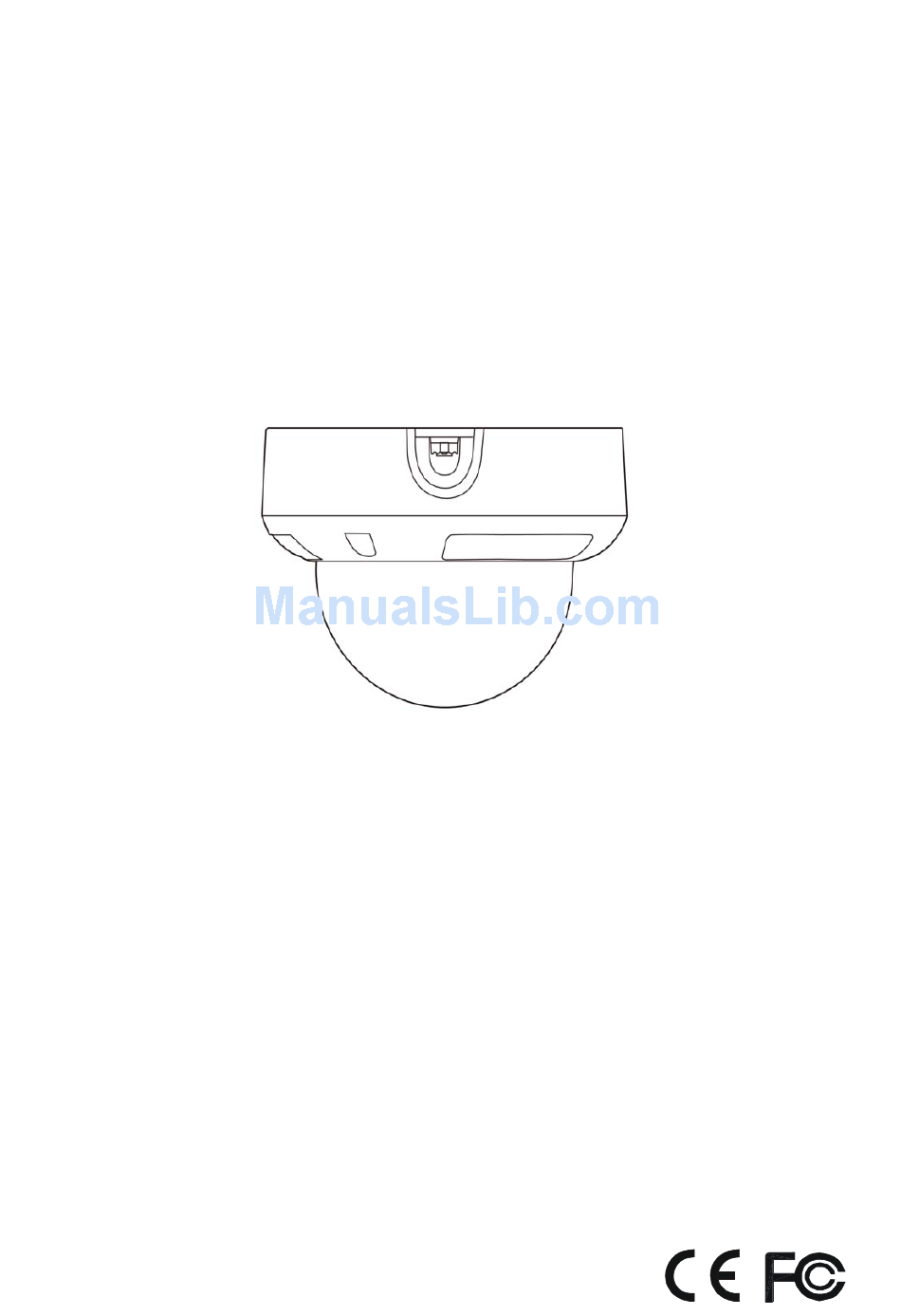

- Page 1 WDR Dome Camera User’s Guide Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without Notice...
- Page 2 7. Solid and Compact Aluminum Die-Casting for Vandal Proof. 8. Support both Side and Top Cable Wiring Method. 9. Class IP-66 Rated Weatherproof Function. 10.RoHS and WEEE Compliance. Specification Model CD3213 CD3214 Pick up device 1/3" interline transfer CCD Total Pixels NTSC:811(H)x508(V)/PAL:795(H)x596(V)
- Page 3 Sense-up On / Off (Selectable limit ~ 256X) Lens Type Vari-Focal : 2.8~10mm IR distance 15M(21pcs IR LEDs) Power Source DC12V/AC24V ± 10% / 500mA DC12V/AC24V ± 10% / 1A Power 1.6W 5.16W Consumption Current 130mA 430mA Operating -10℃ ~ 50℃ (14℉ ~ 122 ℉) Temperature Storage -20℃~ 70℃...
-
Page 4: Osd Menu
OSD menu LENS menu： LENS BRIGHTNESS: 0 ~100 RETURN... - Page 5 EXPOSURE menu：User can adjust electronic shutter speed, auto gain control, sensitivity-up level, back light compensation (BLC) &Highlight Suppression (HSBLC) adjust and Digital WDR. EXPOSURE SHUTTER FLK, 1/60 ~1/100000, X2~256 BRIGHT OFF, LOW, MIDDLE, HIGH SENS-UP AUTO, X2 ~ X256 HSBLC LEVEL: LEFT/ RIGHT: WIDTH:...
- Page 6 WHITE BAL menu：User can adjust white balance effect, the function like as Auto Tracking White balance (ATW), Auto White Balance adjust (AWB), Indoor or outdoor environment. WHITE BAL AWC SET MANUAL BLUE 0~100 RED 0~100 RETURN INDOOR OUTDOOR DAY NIGHT menu：User can adjust camera auto change threshold with day and night level to change Color or Black/White mode and force assign Color or Black/White type.
- Page 7 3DNR menu： User can adjust 3-Digital Noise Reduction level to improve night environment effect. Not for MiniDome01/03/04/05 3DNR LEVEL: 0 ~ 100 RETURN SPECIAL menu： User can setup Camera title, Digital effect ( Freeze, Mirror, V-FLIP, Rotate), Gamma ratio, Negative image effect, Motion area adjust, Privacy mask area adjust and language function.
- Page 8 SPECIAL CAM TITLE ON/OFF D – EFFECT FREEZE MIRROR D – ZOOM x1.0 ~ x32 GAMMA 0.05 ~ 1 NEG. IMAGE MOTION AREA SELECT: AERA: 1 ~ 4 AREA DISPLAY: ON/OFF LEFT / RIGHT: 0 ~ 100 WIDTH: 0 ~ 100 TOP / BOTTOM: 0 ~ 100 HEIGHT: 0 ~ 100 SENSITIVITY: 0 ~ 40...
- Page 9 85% maximum. If the camera is to be placed in an extremely dusty location, a special housing may be necessary to protect the camera and lens. Please use suitable adapter DC12V ± 10 %,500mA. Otherwise, this product will be damaged. 85-CD3213-A002G-A...
