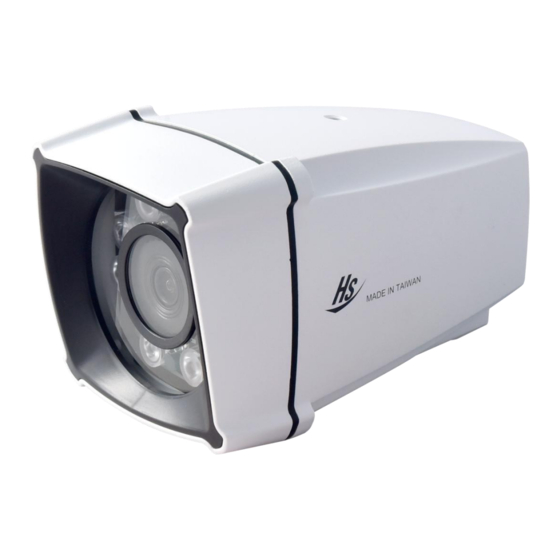

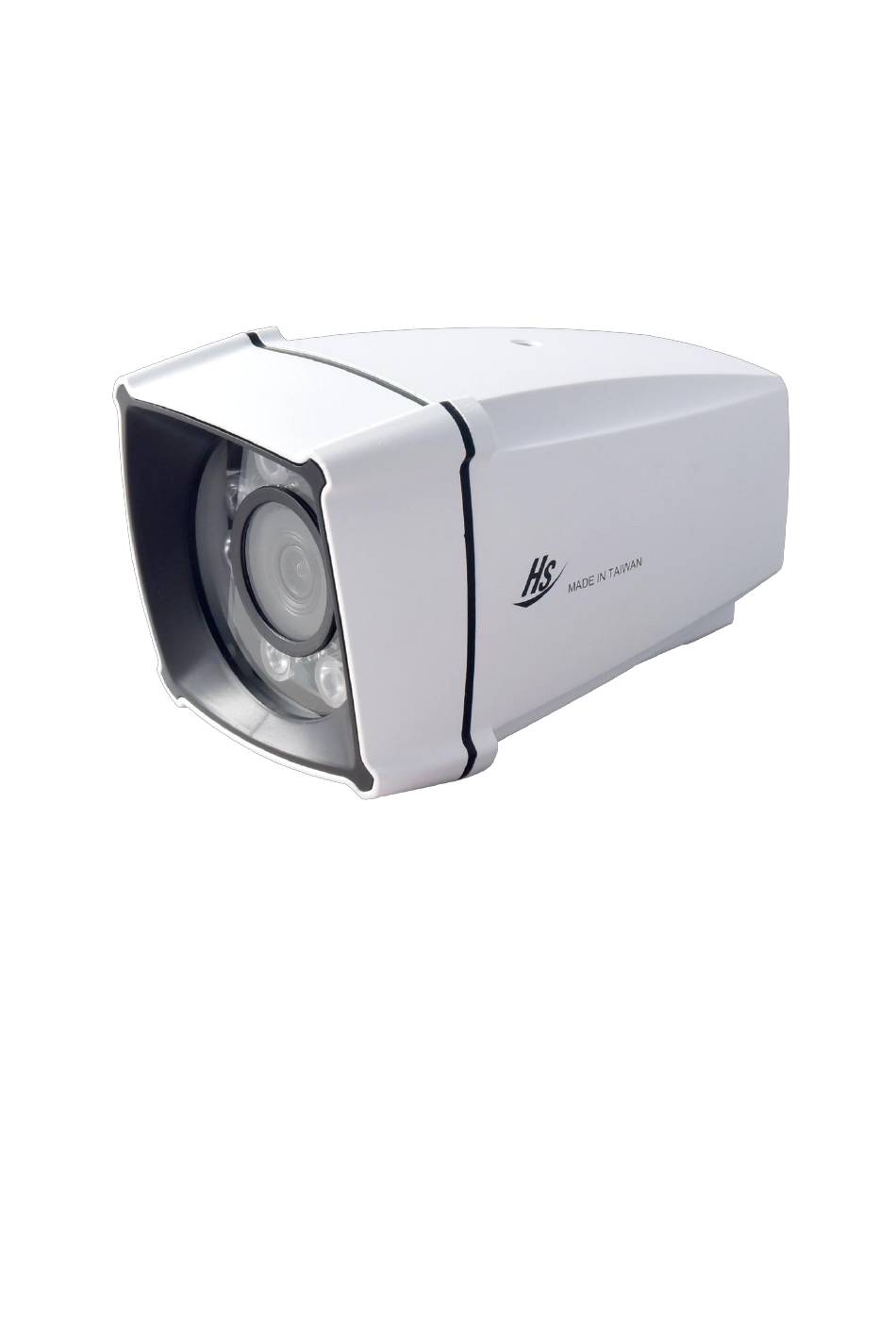

- Page 1 HD Analogue Camera_ Manual...
-
Page 2: Table Of Contents
Contents SAFETY PRECAUTIONS .............. 3 Specification .................. 4 Product contents ................5 Product overview ................. 6 Dimension..................7 COC (control over coaxial) function ........8 OSD Menu ..................9 Connection .................. 14... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read before using The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be sufficient magnitude to constitute risk of electrical shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Specification
Specification 1/2.9” SONY CMOS : 2.0 Mega Image unit Resolution 1920(H) x 1080(V) Video Output AHD / CVI / TVI / CVBS Synchronization Internal Scanning System 2:1 interlace S/N Ratio More than 60 dB ( AGC OFF) Electronic Shutter Auto 1/60 (1/50) ~ 1/50,000 sec Min. -
Page 5: Product Contents
Product contents This model is available in two brackets, with different bracket accessories. Bracket 1 Item Figure Trapping Screw × 3 Anchor × 3 Bracket Item Figure Trapping Screw × 5 Anchor × 3... -
Page 6: Product Overview
Product overview Item Description Item Description Power cable (DC 12 V± 10%) Lens ① ⑤ BNC cable Bracket ② ⑥ OSD button ③ Camera ④... -
Page 7: Dimension
Dimension Unit : mm... -
Page 8: Coc (Control Over Coaxial) Function
COC (control over coaxial) function ① Enable the channel which you want to configure, and choose COC (control over coaxial) function under PTZ Protocol page. ② Click the right button of the mouse, choose PTZ Control. ③ Click ” Iris + “ to open OSD menu. Icon Description Open the OSD menu of camera / Enter... -
Page 9: Osd Menu
OSD Menu Notice : ”(xxx)”means (default value) LENS MANUAL (Default) MODE OUTDOOR MIN SHU 1/30 (DEFAULT) MAX SHU (1/2000),1/5000,1/10000,1/50000, 1/60,FLK,1/240,1/480,1/1000 RETURN INDOOR IRIS SPEED 0~15(8) RETURN RET,SAVE&END EXPOSURE SHUTTER 1/30,1/60,FLK,1/240,1/480,1/1000,1/2000,1/5000,1/10000,1/50 000,X2,X4,X6,X8,X10,X15,X20,X25,X30,AUTO (AUTO) 0-15 (13) SENS-UP AUTO SENS-UP X2,X4,X6,X8,X10,X15,X20,X25, (Default) X30,(X2) RETURN RET,SAVE &... - Page 10 BLACK MASK ON, OFF (ON) LEVEL 0-100 (20) MODE ALL DAY NIGHT 0-255 (48) (Default) LEVEL RETURN RET,SAVE & END DEFAULT RETURN RET,SAVE & END WHITE BAL ATW (Default) AWC →SET INDOOR OUTDOOR MANUAL BLUE 0-100 (63) 0-100 (43) RETURN RET,SAVE &...
- Page 11 LMNOPQRSTUV WXYZ▲→←↑↓( ) ¯-_■/=&:~,. ←→ CLR POS END D-EFFECT FREEZE OFF,ON (OFF) MIRROR OFF,MIRROR,V-FLIP,ROTATE (OFF) NEG.IMAGE OFF,ON (OFF) RETURN RET,SAVE & END MOTION OFF (Default) SELECT AREA1,AREA2,AREA3,AREA4 (AREA1) DISPLAY POSITION, (Default) SIZE,RET,AGAIN SENSITIVITY 0-100 (64) COLOR GREEN,BLUE,WHITE,RED (GREEN) TRANS 0.00/1.00/0.75/0.25 (1.00) ALARM VIEW ALL,OFF, BLOCK,...
- Page 12 BLUE,YELLOW,GREEN,CYAN (WHITE) TRANS 1.00/0.25/0.50/0.75 (1.00) DEFAULT RETURN RET,SAVE & END LANGUAGE HEB,ARB,ENG,CHN1,CHN2,GER,FRA,ITA,SPA,POL,RUS,POR, NED,TUR,KOR, JPN (ENG) DEFECT LIVE DPC ON (Default) 0-255 (70) LEVEL LEVEL 0-100 (50) RETURN RET,SAVE & END WHITE DPC ON (Default) POS/SIZE POSITION, SIZE,RET,AGAIN START CLOSE THE IRIS THEN PRESS ENTER DPC VIEW...
- Page 13 RETURN RET,SAVE & END ADJUST SHARPNESS AUTO LEVEL 0-10 (6) (Default) START AGC 0~255 (70) END AGC 0~255 (200) RETURN RET,SAVE & END MONITOR LCD (Default) GAMMA USER ,0.45,0.50,0.55,0.60,0.65, 0.70,0.75,0.80,0.85,0.90,0.95, 1.00 (USER) BLUE GAIN 0~100 (50) RED GAIN 0~100 (50) RETURN RET,SAVE &...
-
Page 14: Connection
Connection Bracket Step 1. Lock the screws to fix the bracket. Step 2. Make sure the connection is tightened. Step 3. Lock the last screws to install bracket completely. ※NOTICE : If necessary, please install 3 anchors before the first step. - Page 15 Bracket Step 1. Lock the screw to fix the camera. Step 2. Loosen the screw to adjust the bracket. Step 3. Make sure the connection is tightened. Step 4. Lock the screws to install bracket completely. ※NOTICE : If necessary, please install 3 anchors before the fourth step.
- Page 16 Connect BNC cable and power cable after installing bracket completely. BNC cable Power cable 85-AAT067-A502G-A...
