Owner's Manual and Assembly Instructions
Model #: W442AC
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Email customerservice@rollplay.com for
assistance and replacement parts.
IMPORTANT:
Save this manual with your sales receipt.

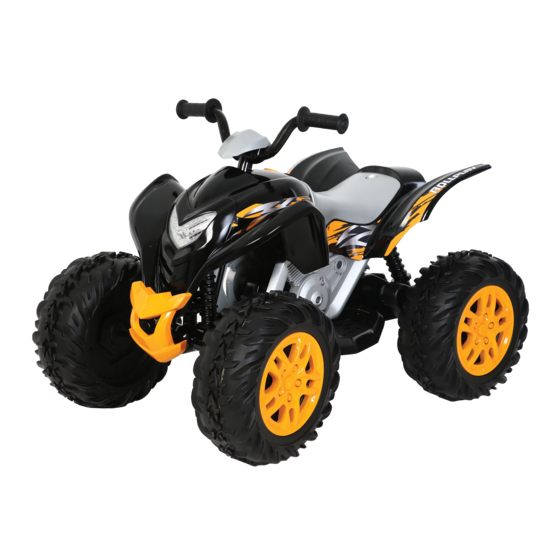

12V Powersport ATV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powersport W442AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rollplay Powersport W442AC

Summary of Contents for Rollplay Powersport W442AC

  • Page 1 Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary. Do not return to store. Email customerservice@rollplay.com for assistance and replacement parts. IMPORTANT:...
  • Page 2 Introduction Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Keep your sales receipt or register your product at www.rollplay.com.
  • Page 3 E-mail Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.com as we may require proof of purchase. customerservice@rollplay.com Read this entire manual to ensure proper assembly and safe operation of the vehicle.

  • Page 4: Table Of Contents

    Table of Contents Safety ............5 Parts ............7 Charging Instructions ......8 Assemble the Front Wheels ....9 Assemble the Rear Wheels ..... 10 Assemble the Steering Rod ....11 Attach the Handlebar ......Assemble the Front Bumper ....Attach the Seat ........

  • Page 5: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 35 kg (77 lbs). •...
  • Page 6 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead components. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs. If the chemical is on the skin, immediately give the person water or milk.

  • Page 7: Parts

    Parts 1. Manual 7. Rear Wheel (X2) 13. Handlebar Nut 2. Seat 8. Front Wheel (X2) 14. Snap Pins (X4) 3. Handlebar 9. Wheel Cover (X4) 15. Battery (Located in the 4. Vehicle Body 10. Handlebar Screw seat compartment) 5. Steering Rod 11.

  • Page 8: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the ATV is stopped and turned off. Fig. 1 2. Unlock the seat lock using a coin or screwdriver and remove the seat.

  • Page 9: Assemble The Front Wheels

    Assemble the Front Wheels Snap Pin Assembly 1. Remove the snap pin from the front axle, then slide a washer on the axle. 2. Slide the front wheel on the axle, make sure the gear teeth are facing in towards the vehicle. Then, slide another washer on the axle. 3.

  • Page 10: Assemble The Rear Wheels

    Assemble the Rear Wheels Gear teeth should face inward 1. Remove the snap pin from the rear axle. 2. Slide the rear wheel on the axle with the gear teeth facing in. 3. For the left rear wheel, align the gear teeth on the wheel with the gear box on the axle.

  • Page 11: Assemble The Steering Rod

    Assemble the Steering Rod 1. Gently ip the vehicle upside down. 2. Insert the straight end of the steering rod through the hole in the reinforcement bar and the hole in the vehicle body. 3. Insert the curved end of the steering rod into the metal tab of the reinforcement bar.

  • Page 12: Attach The Handlebar

    Attach the Handlebar 1. Insert the handlebar into the steering rod. 2. Align the hole on the handlebar with the hole on the steering rod. 3. Insert the handlebar screw through the hole and fasten with a nut and screwdriver.

  • Page 13: Assemble The Front Bumper

    Assemble the Front Bumper 1. Insert the front bumper onto the support bar, aligning the hole on the front bumper with the hole on the support bar. 2. Insert a screw through the two holes and fasten with a screwdriver.

  • Page 14: Attach The Seat

    Attach the Seat 1. Make sure the seat lock is in the unlocked position. 2. Insert the front of the seat into the slot on the body. 3. Press down on the seat. Then, use a coin or screwdriver to turn the seat lock to the locked position.

  • Page 15: Operating Instructions

    Operating Instructions Power Horn Forward/reverse Foot Pedal Sit on the seat and turn on the power. To move forward, make sure the forward/reverse switch is set to forward, then press on the foot pedal. Switch the forward/reverse button to move in reverse. Release the foot pedal to stop the vehicle.

  • Page 16: Battery Maintenance

    Battery Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Recharge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours.

  • Page 17: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 21 for more information.

  • Page 18: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Battery is low Recharge the battery Vehicle does not run Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 19 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors connectors are securely attached. If wires start are loose, contact Customer Service “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 20: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 21: Service And Repairs

    Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com.

  • Page 22: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 23: Product Registration

    Product Registration First Name: Last Name: Title: Address: City: State: Zip Code: Email: Phone: Date of Purchase: Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
