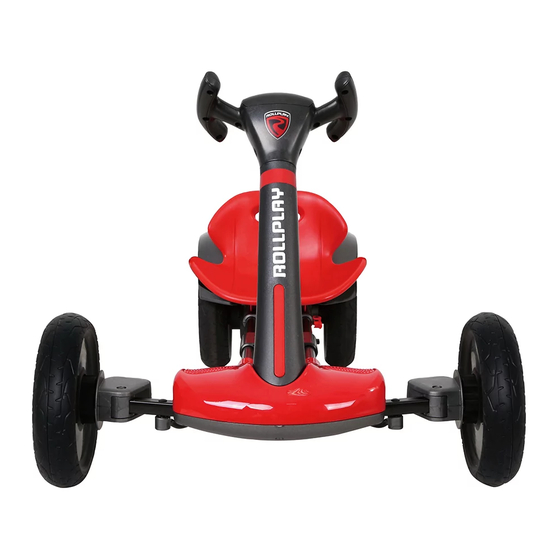

Rollplay FLEX KART W405AC Owner's Manual And Assembly Instructions
  1. Manuals
  2. Brands
  3. Rollplay Manuals
  4. Motorized Toy Car
  5. FLEX KART W405AC
  6. Owner's manual and assembly instructions

Rollplay FLEX KART W405AC Owner's Manual And Assembly Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

FLEX KART
Owner's Manual and Assembly Instructions
Model #: W405AC W405-ROB W405-R W405-G W405-O W405-W
Read and study the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understood the instructions.
Made in China.
Styles and colors may vary. Prior to returning to the store, please contact Rollplay's Customer
Service with questions. Visit us online at www.rollplay.com for assistance and replacement
parts.
IMPORTANT:
Save this manual with your sales receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLEX KART W405AC and is the answer not in the manual?

Questions and answers

Related Manuals for Rollplay FLEX KART W405AC

Summary of Contents for Rollplay FLEX KART W405AC

  • Page 1 Made in China. Styles and colors may vary. Prior to returning to the store, please contact Rollplay's Customer Service with questions. Visit us online at www.rollplay.com for assistance and replacement parts.
  • Page 2 Introduction Thank you for purchasing this Rollplay vehicle from Rollplay. We hope the rider enjoys it for miles to come. Please read this instruction manual carefully before assembling and operating the vehicle. Please contact Rollplay Customer Service with any questions. Have your model number and serial number before calling.
  • Page 3 Call or email Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.com as we require proof of purchase. customerservice@rollplay.com 1-888-982-9309...

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions ........9 Unfolding the Frame ........ 10 Installing the Steering Wheel ..... 11 Attaching the Seat ........12 Operating Instructions ......13 Folding Instruction ........14 Maintenance ..........15 General Care ..........

  • Page 6: Safety

    Safety WARNING: SAFE RIDING RULES • The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. User must be at least 24 months old and weigh no more than 25kg (55 lbs.). •...
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead components. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs. If the chemical is on the skin, immediately give the person water or milk.

  • Page 8: Parts

    Parts Not Included: Phillips screwdriver 1.Steering Wheel 10. Gearbox 2. Steering Bar 11. Left Front Wheel 3. Frame 12. Right Front Wheel 4. Front Axle 13. Left Rear Wheel NOTE: Parts 2-4, 6-14 is for 5. Seat 14. Right Rear Wheel reference only and is packed 6.

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the FLEX Kart is stopped and turned off. 2. Locate the seat lock at the front of the seat.

  • Page 10: Unfolding The Frame

    Unfolding the Frame Steering Bar Frame Lock Click 1). Take the vehicle out of the package. 2). Unlock the frame by pulling out the Frame Lock, away from the vehicle. (Fig A) 3). Raise the Steering Bar until it clicks into place (Fig B).

  • Page 11: Installing The Steering Wheel

    Installing the Steering Wheel Power Button 1). Remove the screw (M5*47) from the Steering Wheel. 2). Plug the steering wheel wire into the steering bar wire. (Fig A) 3). Place the steering wheel onto the top of the steering bar, match the screw holes of the steering wheel and the steering bar.（Note: Gently tuck the wires completely into the steering bar, to avoid damage to the wires.）...

  • Page 12: Attaching The Seat

    Attaching the Seat 1). Remove screws (M6*38) from the the seat's polybag. 2). Align the two holes on the Seat over the holes on the vehicle body to the desired position. Insert the screws through the holes on the seat and the frame, tighten with a Phillips screwdriver.

  • Page 13: Operating Instructions

    Operating Instructions Power Button Press the Power Button on the Steering Wheel to move the vehicle. Release the Power Button to stop.

  • Page 14: Folding Instruction

    Folding Instructions Lock Button Spring Bolt Steering Bar Frame Lock 1). Hold down the Lock Button and squeeze the spring bolts (Fig. C) and slide the frame and steering bar down, toward the seat (Fig. E). 2). Check to ensure the frame lock is securely locked. Note: Only adults should fold and unfold ！...

  • Page 15: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Charge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours.

  • Page 16: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 20 for more information.

  • Page 17: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Loose wires or loose Ensure the battery connectors connectors are securely attached.
  • Page 18 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service. “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 19: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 20: Service And Repairs

    Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE REQUIRE PROOF OF PURCHASE. Please save your sales receipt and register your product at www.rollplay.com.

  • Page 21: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 23: Product Registration

    Address: City: State: Zip Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
