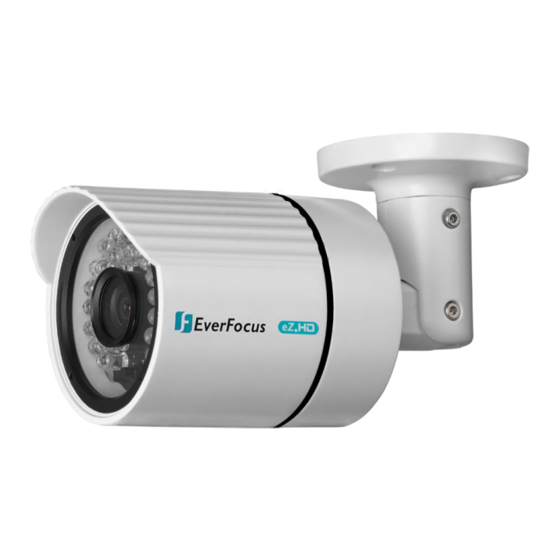

- Page 1 Series ECZ930 720p Analog High Definition True Day/Night Outdoor IR Bullet Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: Nov., 2014...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. Introduction........................5 Packing List ........................5 Features .......................... 5 2. Cable Description ......................6 3. Installation ........................7 Installation and Adjustment ................... 7 4. Configuration in the OSD Menu ..................10 5. Specifications ........................14... -
Page 5: Introduction
To take full advantage of the amazing resolution available from fixed lens this advanced imaging technology, the EverFocus eZ.HD Series ECZ930 uses a together with 1/2.8" SONY 1.37M pixels CMOS to deliver 720p high resolution. Combined with a useable native low light sensitivity of 0 lux without using digital slow shutter and 30 LEDs with range of 15m/50ft. -
Page 6: Cable Description
ECZ930 eZ.HD Outdoor IR Bullet Camera 2. Cable Description Name Descriptions Power Cable Connects to a 12VDC power source. Dual Video Output 720p and 960H output, using a 75 Ohm BNC-type coaxial cable. Optional power pigtail cable. The red wire is positive (+); DC Power Pigtail Cable while the black wire is negative (-). -
Page 7: Installation
ECZ930 eZ.HD Outdoor IR Bullet Camera 3. Installation 3.1 Installation and Adjustment For Ceiling Mount / Wall Mount users: Stick the Template Plate on the position where you want to attach the camera. Drill three holes and insert the supplied Plastic Anchors into the holes, then attach the camera to the ceiling or wall by using the supplied Screws. - Page 8 ECZ930 eZ.HD Outdoor IR Bullet Camera Connect the camera to an AHD DVR or a portable monitor with the 12VDC power source using the supplied DC Power Pigtail Cable or a power adapter. Adjust camera angles by tilting or rotating the camera. Then fasten the bracket with the Hexagon Wrench (Note: The bracket base can be rotated by 360 , the housing body also can be rotated by 360...
- Page 9 ECZ930 eZ.HD Outdoor IR Bullet Camera OSD indication as shown in the figure: Push the Joystick up / down to select among menu items. Push the Joystick left / right to adjust the level of the selected item. ...
-
Page 10: Configuration In The Osd Menu
ECZ930 eZ.HD Outdoor IR Bullet Camera 4. Configuration in the OSD Menu You can use the Joystick on the bottom housing of the camera to configure camera settings in the OSD menu. The OSD menu structure is as below: Main Sub Menu Sub Menu / Function Lens... - Page 11 ECZ930 eZ.HD Outdoor IR Bullet Camera Indoor Outdoor Blue 1-500(50*) Manual 0-100(50*) 0-60(1*) D→N(Delay) Ext* 0-60(1*) N→D(Delay) D→N(AGC) 1-255(240*) D→N(Delay) 0-60(1*) Auto N→D(AGC) 1-255(50*) 0-60(5*) Day & N→D(Delay) Night Color Burst Off*/On IR Smart Level 0-15(4*) Area Position, Size,↑,↓,→,← IR PWM 0-100(100*) 2DNR Middle*/Low/Off/High...
- Page 12 ECZ930 eZ.HD Outdoor IR Bullet Camera Time 1-15(3*) Default Select Area1*,Area2,Area3,Area4 Position, Size,↑,↓,→, Color* ← Display Position, Size,↑,↓,→, Mosaic ← Privacy Position, Size,↑,↓,→, ← White*, Black, Red, Blue, CYAN, Color Yellow, Green 1.00*,0.75,0.50, Trans 0.25 Default Language ENG*/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR Live DPC AGC level 0-255(65*) Level...
- Page 13 ECZ930 eZ.HD Outdoor IR Bullet Camera Level 0-10(6*) Sharpness Auto* Start AGC 0-255(50*) End AGC 0-255(200*) Black Level 0-60(0*) Blue Gain 0-100(50*) Red Gain 0-255(50*) Adjust User*,0.45,0.50,0.55,0.6 CRT/LCD 0,0.65,0.70,0.75,0.80,0.8 Gamma 5,0.90, LCD* 0.95,1.00 Blue Gain 0-100(50*) Red Gain 0-100(50*) Off*/On Video.
-
Page 14: Specifications
ECZ930 eZ.HD Outdoor IR Bullet Camera 5. Specifications ECZ930 Pickup Device 1/2.8" SONY 1.37M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Effective Pixels 1280 (H)*720 (V) Scanning System Progressive Scan Sensitivity 0 lux with IR on S/N Ratio Over 48 dB (AGC OFF) Electronic Shutter... - Page 15 EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, Duarte, CA 91010, 415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA TEL: +1 631 436 5070 TEL: +1 626 844 8888...
