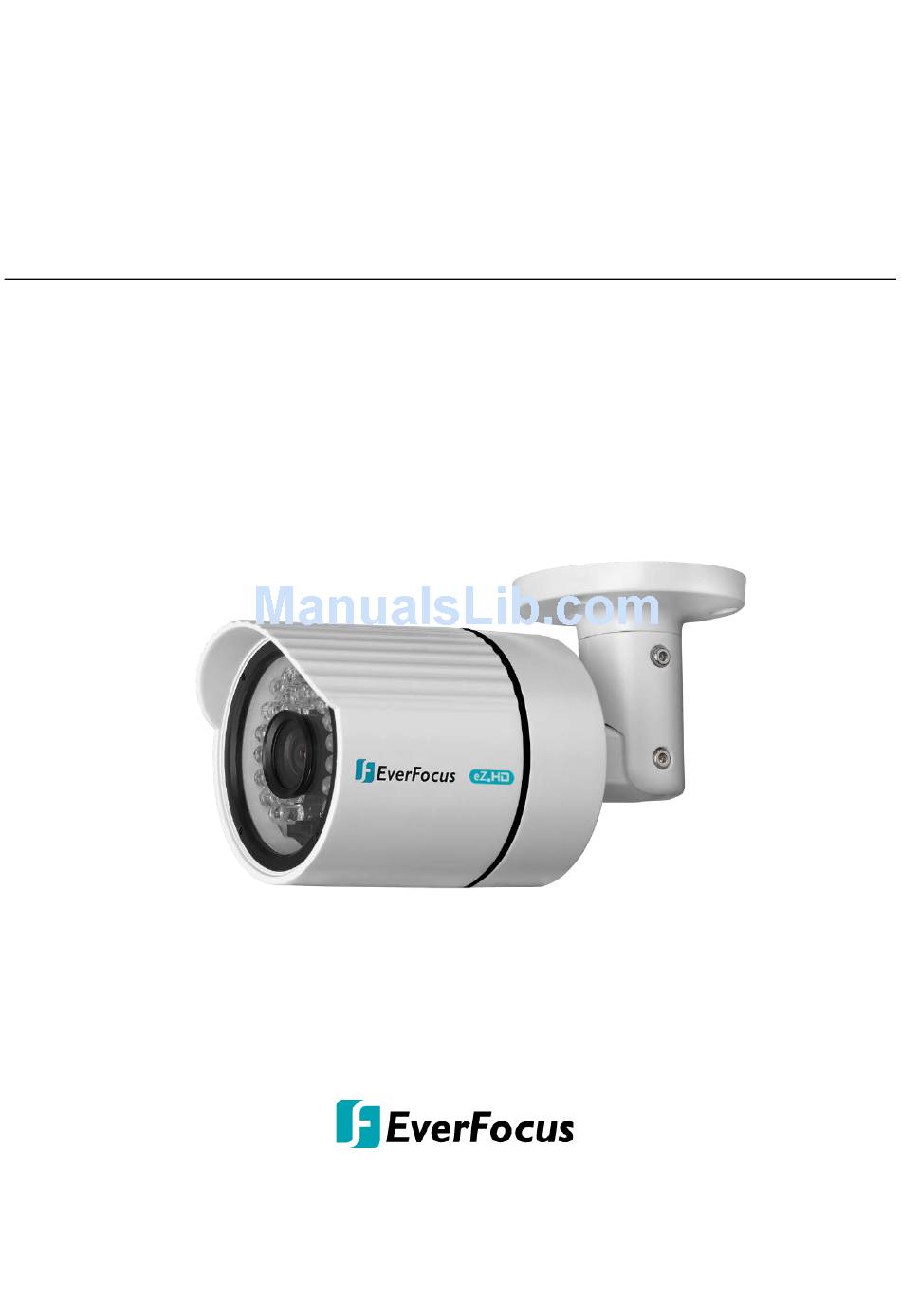

- Page 1 Series ECZ930F 1080p Full High Definition True Day/Night Outdoor IR Bullet Camera User’s Manual Copyright © EverFocus Electronics Corp. Release Date: February 2016...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. Introduction........................5 Packing List ........................5 Features .......................... 5 2. Cable Description ......................6 3. Installation ........................7 Installation and Adjustment ................... 7 4. Configuration in the OSD Menu ..................10 5. Specifications ........................14... -
Page 5: Introduction
EverFocus eZ.HD Series ECZ930F uses a fixed lens together with 1/2.9" SONY 2.24M pixels CMOS to deliver 1080p high resolution, 30 LEDs with range of 15m/50ft., together with a useable native low light sensitivity of 0 lux without using digital slow shutter. -
Page 6: Cable Description
ECZ930F eZ.HD Outdoor IR Bullet Camera 2. Cable Description Name Descriptions Power Cable Connects to a 12VDC power source. 1080p, 720p and 960H output, using a 75 Ohm BNC-type coaxial Video Output cable. Optional power pigtail cable. The red wire is positive (+); DC Power Pigtail Cable while the black wire is negative (-). -
Page 7: Installation
ECZ930F eZ.HD Outdoor IR Bullet Camera 3. Installation 3.1 Installation and Adjustment For Ceiling Mount / Wall Mount users: Stick the Template Plate on the position where you want to attach the camera. Drill three holes according to the supplied Template Plate, and insert the supplied Plastic Anchors into the holes. - Page 8 ECZ930F eZ.HD Outdoor IR Bullet Camera Connect the camera to an AHD DVR with the 12VDC power source using the supplied DC Power Pigtail Cable or a power adapter. Adjust camera angles by tilting or rotating the camera. Then fasten the bracket with the Hexagon Wrench (Note: The bracket base can be rotated by 360 , the housing body also can be rotated by 360...
- Page 9 ECZ930F eZ.HD Outdoor IR Bullet Camera OSD indication as shown in the figure: • Push the Joystick up / down to select among menu items. • Push the Joystick left / right to adjust the level of the selected item. •...
-
Page 10: Configuration In The Osd Menu
ECZ930F eZ.HD Outdoor IR Bullet Camera 4. Configuration in the OSD Menu You can use the Joystick on the bottom housing of the camera to configure camera settings in the OSD menu. The OSD menu structure is as below: Main Sub Menu Sub Menu / Function Lens... - Page 11 ECZ930F eZ.HD Outdoor IR Bullet Camera Indoor Outdoor Blue 1-500 Manual 0-100 D→N(Delay) 0-60 N→D(Delay) 0-60 D→N(AGC) 1-255 D→N(Delay) 0-60 Auto 1-255 N→D(AGC) Day & N→D(Delay) 0-60 Night Color Burst Off/On Level 0-15 IR Smart Position, Size,↑,↓, Area →,← IR PWM 0-100 2DNR Middle/Low/Off/High...
- Page 12 ECZ930F eZ.HD Outdoor IR Bullet Camera Time 1-15 Default Select Area1,Area2,Area3,Area4 Position, Size,↑,↓, Color →,← Display Position, Size,↑,↓, Mosaic →,← Privacy Position, Size,↑,↓, →,← White, Black, Red, Blue, CYAN, Color Yellow, Green 1.00,0.75,0.50, Trans 0.25 Default Language ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR Live DPC AGC level 0-255 Level...
- Page 13 ECZ930F eZ.HD Outdoor IR Bullet Camera Baud Rate 2400,4800,9600,19200 ,38400 Level 0-10 Sharpness Auto Start AGC 0-255 End AGC 0-255 Black Level 0-60 Blue Gain 0-100 Red Gain 0-255 Adjust User,0.45,0.50,0.55,0.60,0.65,0.70,0. Monitor Gamma 75,0.80,0.85,0.90, 0.95,1.00 Blue Gain 0-100 Red Gain 0-100 Off/On Video.
-
Page 14: Specifications
ECZ930F eZ.HD Outdoor IR Bullet Camera 5. Specifications ECZ930F Pickup Device 1/2.9" SONY 2.24M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Effective Pixels 1920 (H)*1080 (V) Scanning System Progressive Scan Sensitivity 0 lux with IR on S/N Ratio Over 48 dB (AGC OFF) Electronic Shutter... - Page 15 FAX: +81 3 5625 8189 www.everfocus.com www.everfocus.co.jp sales@everfocus.com info@everfocus.co.jp Ihr EverFocus Produkt wurde Your EverFocus product is designed entwickelt und hergestellt mit and manufactured with high quality materials and components which can qualitativ hochwertigen Materialien und Komponenten, die recycelt und be recycled and reused.
