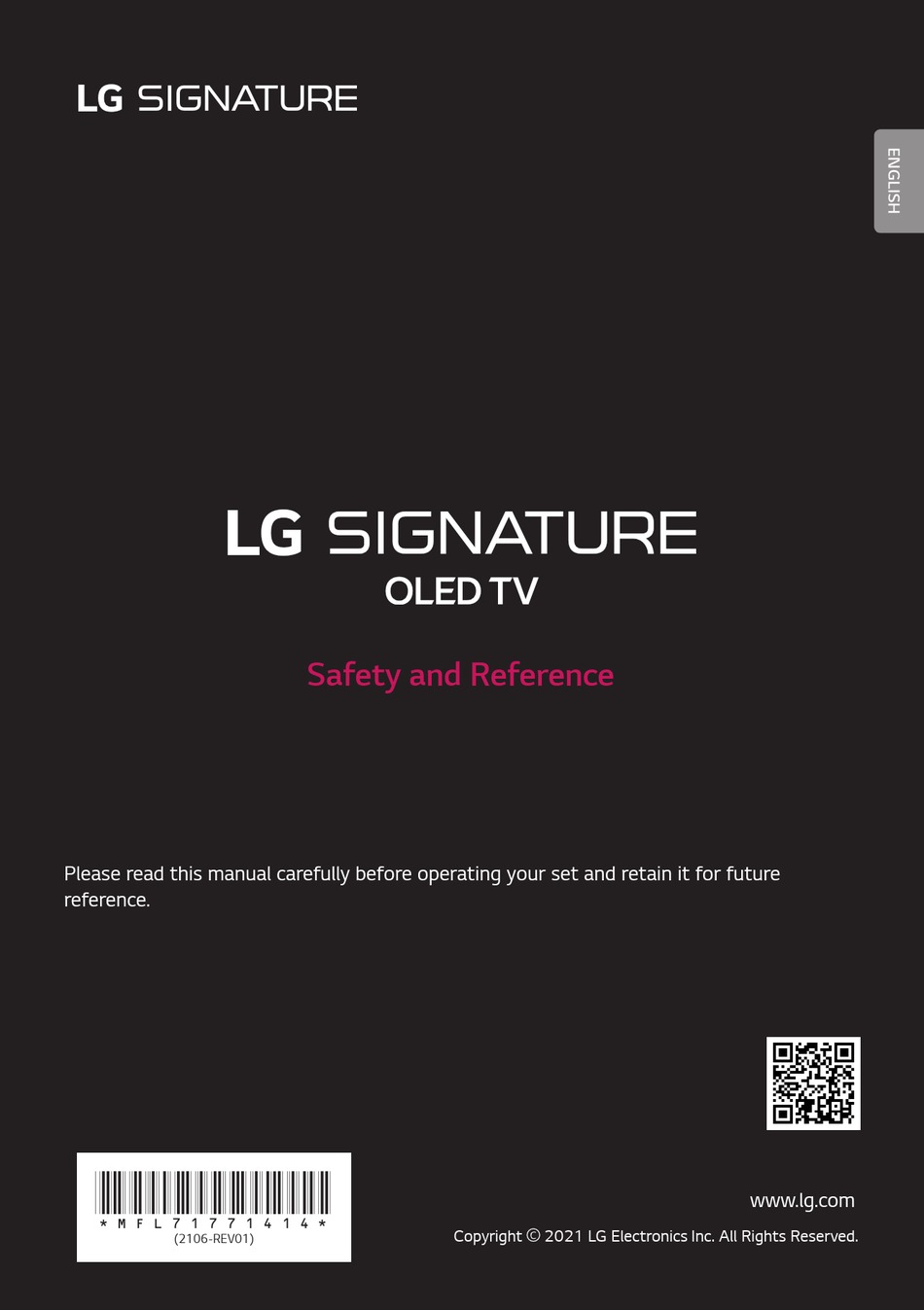

- Page 1 Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. *MFL71771414* www.lg.com Copyright 2021 LG Electronics Inc. All Rights Reserved. (2106-REV01)
- Page 2 Title Warning! Safety instructions Connections Preparing Troubleshooting - Lifting and moving the TV Specifications - Installation - Antenna/Cable - Open Source Software Notice Information - Satellite dish - Licenses Starting TV Precautions for Protecting the OLED TV - Turning on the TV Screen - Registering Magic Remote Control...
- Page 3 Warning! Safety instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 4 • Disconnecting the Device from the Main Power • If any of the following occur, unplug the product - The power plug is the disconnecting device. In case of an immediately and contact your local customer service. - The product has been damaged. emergency, the power plug must remain readily accessible.
- Page 5 • Batteries - Store the accessories (battery, etc.) in a safe location out of the reach of children. - Do not short circuit, disassemble, or allow the batteries to overheat. Do not dispose of batteries in a fire. Batteries should not be exposed to excessive heat. - Caution: Risk of fire or explosion if the battery is replaced by an incorrect type.
-
Page 6: Lifting And Moving The Tv
Preparing Lifting and moving the TV Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. • Before moving the product, turn off the TV using the remote control or the power button on the back of the product, and ensure the panel is lowered into the set and the top door is closed properly. -
Page 7: Installation
Installation Install the product at least 10 cm away from the ceiling and the walls to the left and right and with at least 7 cm between the stand and the wall at the back. • It is recommended to install the product on the floor. •... -
Page 8: Satellite Dish
Antenna/Cable Connect the TV to a wall antenna socket with an RF cable (75 Ω). • Use a signal splitter to use more than 2 TVs. • If the image quality is poor, install a signal amplifier properly to improve the image quality. •... -
Page 9: Turning On The Tv
Starting TV Turning on the TV You can simply operate the TV functions, using the button. <Zero View> <Full View> <Line View> Using button Power On (Press) Power Off (Press and hold) 1) All running apps will close, and any recording in progress will stop. (Depending Volume Control on country) Programmes Control... - Page 10 Adjusting the menu When the TV is turned on, press the button one time. You can adjust the Menu items using the button. Turns the power off. Accesses the settings menu. Clears on-screen displays and returns to TV viewing. Changes the input source. •...
-
Page 11: Registering Magic Remote Control
Registering Magic Remote Control How to register the Magic Remote Control To use the Magic Remote, first pair it with your TV. 1 Put batteries into the Magic Remote and turn the TV on. 2 Point the Magic Remote at your TV and press the Wheel (OK) on the remote control. -
Page 12: Using Remote Control
Using Remote Control Using Magic Remote Control (Depending on model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. Microphone Power Turns the TV on or off. STB Power You can turn your set-top box on or off by adding the set-top Number buttons Enters numbers. - Page 13 Microphone Back Returns to the previous level. Wheel (OK) Press the centre of Back Clears on-screen displays and button to select a menu. You can returns to last input viewing. change programmes by using Q. Settings Accesses the Quick Settings. button.
- Page 14 Connections Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. HDMI • When connecting the HDMI cable, the product and external devices should be turned off and unplugged. •...
- Page 15 IR Blaster Control the set-top box (cable/satellite/IP/OTT), Blu-ray/DVD player, soundbar, game consoles, etc., using the IR Blaster. • Connect the IR Blaster cable to the TV’s IR Blaster port. Note • Place both ends (one or two) of the IR Blaster in front of the external device as shown in the picture below. •...
-
Page 16: Troubleshooting
Troubleshooting Cannot control the • Check the remote control sensor on the product and try again. TV with the remote • Check if there is any obstacle between the product and the remote control. control. • Check if the batteries are still working and properly installed ( to , to ). - Page 17 • Make sure to wring any excess water or cleaner from the cloth. • Do not spray water or cleaner directly onto the TV screen. • Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen. Cleaning and Care •...
-
Page 18: Specifications
Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV PAL B/B, PAL B/G, DVB-T/T2 PAL D/K, PAL-I, Television system DVB-C SECAM B/G, SECAM D/K, DVB-S/S2 NTSC-M DVB-S/S2 DVB-C DVB-T/T2 VHF III : 174 ~ 230 MHz UHF IV : 470 ~ 606 MHz Program coverage 46 ~ 862 MHz 950~2,150 MHz... - Page 19 Wireless module(LGSBWAC92)Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 18 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MHz 12 dBm Bluetooth Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
-
Page 20: Open Source Software Notice Information
Open Source Software Notice Information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit https://opensource. lge.com . In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. - Page 21 Precautions for Protecting the OLED TV Screen Unlike regular LED/LCDs, OLED TVs produce images that emit light for each pixel, achieving a perfect black colour and delivering clear images without blurring. Due to the nature of the organic materials used to achieve high-resolution image quality, OLED displays generally experience image retention on the screen, which can be a persistent phenomenon.
- Page 22 Recommendations for Minimising Image Retention → [Picture] → [Select Mode] and set the mode When watching the TV for a long time, press the button on the remote control, go to to [Eco], go to [Advanced Settings] → [Brightness] and set [OLED Pixel Brightness] to a lower level. In addition, press the button on the →...
- Page 23 Regulatory WARNING! (STABILITY HAZARD) A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: - ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set. - ALWAYS use furniture that can safely support the television set.
- Page 24 (Only Jordan) WEEE Disposal of your appliance The symbol indicating separate collection for electrical and electronic equipment consists of the crossed-out wheeled bin. 0197 0197 ...
- Page 26 For any Suggestion, Opinion, Complaints, Please Call 800 54 in UAE 0800 545454 in South Africa The model and serial number of the product are located on the back and on one side of the product. Record 080 100 54 54 in Morocco them below in case you ever need service.
