Bullet & Turret & Dome
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the model listed below.
Type
Type I
Type II
Type III
Type IV
This manual may contain several technically incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to the
new version of this manual. We will readily improve or
update the products or procedures described in the
manual.
TURBO HD TVI
User Manual
Model

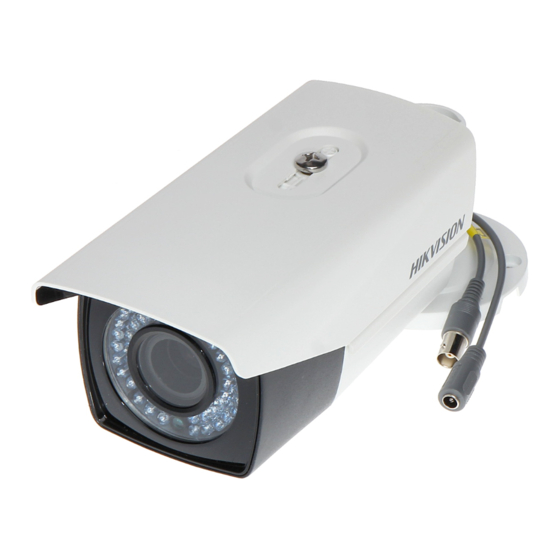

DS-2CE16D0T-VFIR3E
DS-2CE56D0T-VFIR3E
DS-2CE56D0T-VPIR3E
DS-2CE56D0T-VFIRE
Camera
0200001080508
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HIKVISION DS-2CE16D0T-VFIR3E
Summary of Contents for HIKVISION DS-2CE16D0T-VFIR3E
- Page 1 Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the model listed below. Type Model Type I DS-2CE16D0T-VFIR3E Type II DS-2CE56D0T-VFIR3E Type III DS-2CE56D0T-VPIR3E Type IV DS-2CE56D0T-VFIRE...
-
Page 2: Regulatory Information
Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
-
Page 4: Product Features
Introduction Product Features The camera is applicable for both indoor and outdoor conditions, and the application scenarios include road, warehouse, parking lot, office, campus, etc.. The main features are as follows: High performance CMOS sensor 1080p resolution Auto white balance ... -
Page 5: Installation Preparation
1.2.4 Type IV Camera Overview Power Cord Lens Black Liner (12 VDC) Video Cable (TVI) Switch Button Base Plate Bubble Figure 1. 4 Type IV Camera Overview Installation Installation Preparation Before you start: Make sure that the device in the package is in good ... - Page 6 Note: Cable hole is required when adopting ceiling outlet to route the cable. 3. Route the cables through the cable hole, or the side opening. 4. Attach the mounting base to the ceiling and secure the camera with supplied screws. Figure 2.
- Page 7 1. Paste the drill template (supplied) to the place where you want to fix the camera. 2. Drill the screw holes according to the drill template and the cable hole (optional) in the ceiling. Figure 2. 4 Drill Template Note: Cable hole is required when adopting ceiling outlet to route the cable.
- Page 8 Figure 2. 7 Secure the Camera with Mounting Base 7. Connect the corresponding cables, such as power cord, and video cable. 8. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera according to the figure below to get an optimum angle.
- Page 9 Figure 2. 9 The Drill Template Note: Cable hole is required when adopting ceiling outlet to Route the cable. 3. Loosen the bubble of the dome camera to remove the bubble and the black liner. 4. Attach the back box of type III camera/base plate of type IV camera to the ceiling and secure them with supplied screws.
-
Page 10: Menu Description
Figure 2. 12 3-axis Adjustment 9. Fit the black liner back to the camera and tighten the bubble of the dome camera to finish the installation. Type III Camera Type IV Camera Figure 2. 13 Finish the Installation Menu Description Purpose: Call the menu by clicking button on the PTZ Control... -
Page 11: Video Format
4. Call the camera menu by clicking button, or call the preset No. 95. BRIGHTNESS EXPOSURE MODE DWDR RETURN FORMAT MODE RETURN MODE LANGUAGE INFRARED DAY-NIGHT SMART IR RETURN IMAGE MODE MAIN MENU CONTRAST SHARPNESS VIDEO SETTINGS COLOR GAIN MIRROR RETURN RESET SAVE &... -
Page 12: Exposure Mode
Figure 3. 3 EXPOSURE BRIGHTNESS Brightness refers to the brightness of the image. You can set the brightness value from 1 to 10 to darken or brighten the image. The greater the value is, the brighter the image is. EXPOSURE MODE You can set the EXPOSURE MODE as GLOBAL, or BLC. -
Page 13: Video Settings
3.3.3 DAY/NIGHT COLOR, B/W (Black White), and SMART are selectable for DAY and NIGHT switches. COLOR The image is colored in day mode all the time. The image is black and white all the time. SMART The IR light turns on automatically as the environmental illumination becomes poor. -
Page 14: Color Gain
COLOR GAIN Adjust this feature to change the gain of the color. The value ranges from 1 to 10. DNR (Digital Noise Reduction) The DNR function can decrease the noise effect, especially when capturing moving images in poor light conditions, and delivering more accurate and sharper image.
