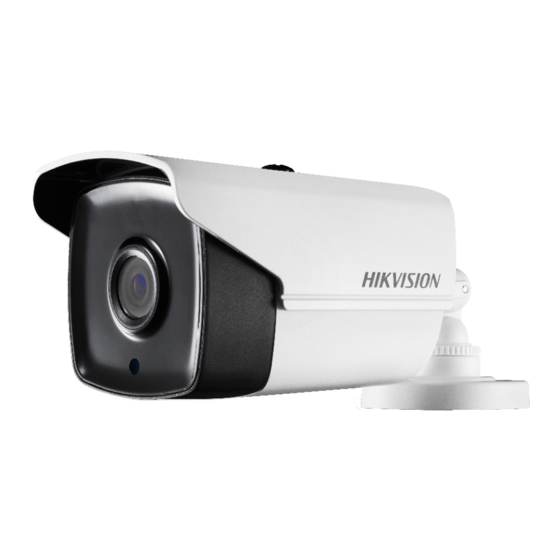

Turbo hd tvi bullet & turret camera

Advertisement

Quick Links

TURBO HD TVI
Bullet & Turret Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
Type
Model
Type I
DS-2CE16D0T-IT1/IT3/IT5
Type II
DS-2CE56D0T-IT1/IT3
Type III
DS-2CE56D0T-IRMM
This manual may contain several technically incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
0200001080504

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2CE16D0T-IT1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HIKVISION DS-2CE16D0T-IT1

  • Page 1 Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. Type Model Type I DS-2CE16D0T-IT1/IT3/IT5 Type II DS-2CE56D0T-IT1/IT3 Type III DS-2CE56D0T-IRMM This manual may contain several technically incorrect places or printing errors, and the content is subject to change without notice.
  • Page 2: Regulatory Information

    Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 4 The sensor may be burned out by a laser beam, so  when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam. Do not place the camera in extremely hot, cold, dusty ...
  • Page 5: Installation Preparation

    Introduction Product Features The camera is applicable for both indoor and outdoor conditions, and the application scenarios include road, warehouse, parking lot, office, campus etc.. The main features are as follows: High performance CMOS sensor  Auto white balance  Auto electronic shutter ...
  • Page 6 Make sure that the device in the package is in good  condition and all the assembly parts are included. Make sure that all the related equipment is power-off  during the installation. Check the specification of the products for the ...
  • Page 7 In the supplied screw package, both self-tapping  screws and expansion blots are contained. If the wall is cement, expansion blots are required  to fix the camera. If the wall is wooden, self-tapping screws are required. Route the cables through the cable hole (optional), or the side opening.
  • Page 8 Figure 2. 5 Drill Template 4. Attach the mounting base to the ceiling and secure them with supplied screws Figure 2. 6 Attach the Mounting Base to the Ceiling Note: In the supplied screw package, both self-tapping  screws and expansion blots are contained. If the wall is cement, expansion blots are required ...
  • Page 9 Pan Position Range [0° to 360°] Tilt Position Range Rotation Position Range [0°to 75°] [0°to 360°] Figure 2. 8 3-axis Adjustment Installation of Type III Camera Steps: 1. Pry the snap joint up to remove the bubble and the black liner. Figure 2.
  • Page 10: Menu Description

    Figure 2. 11 Attach the Mounting Base to the Ceiling 4. Route the cables through the cable hole (optional), or the side opening. 5. Align the camera with the mounting base, secure the camera with the mounting base, and fix the trim ring to the camera.
  • Page 11: Video Format

    BRIGHTNESS EXPOSURE MODE DWDR RETURN FORMAT MODE RETURN MODE LANGUAGE INFRARED DAY-NIGHT SMART IR RETURN IMAGE MODE MAIN MENU CONTRAST SHARPNESS VIDEO SETTINGS COLOR GAIN MIRROR RETURN RESET SAVE & EXIT Figure 3. 2 Main Menu Overview 5. Click the direction arrow to control the camera. 4).
  • Page 12: Exposure Mode

    Figure 3. 3 EXPOSURE BRIGHTNESS Brightness refers to the brightness of the image. You can set the brightness value from 1 to 10 to darken or brighten the image. The greater the value is, the brighter the image is. EXPOSURE MODE You can set the EXPOSURE MODE as GLOBAL, or BLC.
  • Page 13: Video Settings

    3.3.3 DAY/NIGHT COLOR, B/W (Black White), and SMART are selectable for DAY and NIGHT switches. COLOR The image is colored in day mode all the time. The image is black and white all the time. SMART You can turn on/off the INFRARED, and set the value of SMART IR in this menu.
  • Page 14: Color Gain

    SHARPNESS Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 10. COLOR GAIN Adjust this feature to change the gain of the color. The value ranges from 1 to 10. DNR (Digital Noise Reduction) The DNR function can decrease the noise effect, especially when capturing moving images in poor light...
