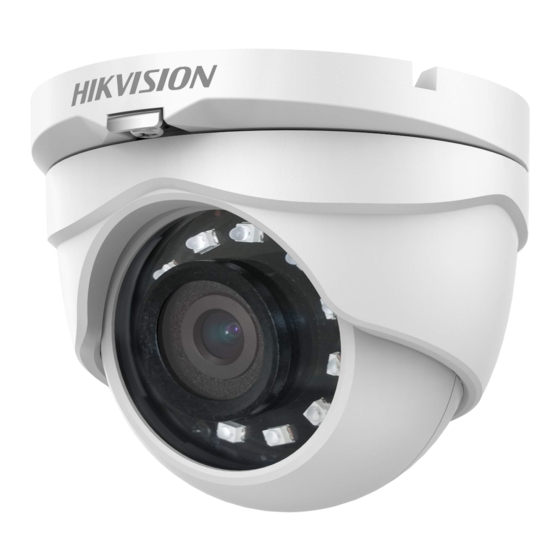

HIKVISION Turbo HD DS-2CE16D0T-IRF User Manual

HIKVISION Turbo HD DS-2CE16D0T-IRF User Manual

Tvi bullet & turret camera
Hide thumbs Also See for Turbo HD DS-2CE16D0T-IRF:

Advertisement

Quick Links

All manuals and user guides at all-guides.com
TURBO HD
TVI Bullet & Turret Camera
User Manual
UD03589B
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the model listed below.
Type
Type I
DS-2CE16C0T-IRF/IRPF
DS-2CE16D0T-IRF/IRPF
Type II
DS-2CE56C0T-IRMF
DS-2CE56D0T-IRMF
Type III
DS-2CE56C0T-IRF/IRPF
DS-2CE56D0T-IRF/IRPF
This manual may contain several technically incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
Model
0100001061107

Advertisement

loading
Need help?

Need help?

Do you have a question about the Turbo HD DS-2CE16D0T-IRF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HIKVISION Turbo HD DS-2CE16D0T-IRF

  • Page 1 All manuals and user guides at all-guides.com TURBO HD TVI Bullet & Turret Camera User Manual UD03589B User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the model listed below. Type Model Type I...
  • Page 2 All manuals and user guides at all-guides.com Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 All manuals and user guides at all-guides.com Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 4: Product Features

    All manuals and user guides at all-guides.com The sensor may be burned out by a laser beam, so  when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
  • Page 5: Installation Preparation

    All manuals and user guides at all-guides.com 1.2.2 Type II Camera Overview Mounting Base Trim Ring Enclosure Switch Video Camera Button Cable Power Cord Figure 1. 2 Type II Camera Overview Note: Press the switch button for 5 seconds to switch the video output with TVI, AHD, CVI, and CVBS available.
  • Page 6 All manuals and user guides at all-guides.com disassemble the camera for repair or maintenance by yourself. Installation of Type I Camera Steps: 1. Attach the dill template to the ceiling. 2. Drill the screw holes according to the drill template, and the cable hole (optional) on the ceiling.
  • Page 7 All manuals and user guides at all-guides.com 3). Loosen the No.2 adjusting screw to adjust the tilting position (0° to 180°). 4). Tighten the No. 2 adjusting screw. 5). Loosen the No.3 adjusting screw to adjust the rotation position (0° to 360°). 6).
  • Page 8 All manuals and user guides at all-guides.com 3. Attach the mounting base to the ceiling and secure them with supplied screws Figure 2. 6 Attach the Mounting Base to the Ceiling Note: In the supplied screw package, both self-tapping  screws and expansion blots are contained.
  • Page 9 All manuals and user guides at all-guides.com Installation of Type III Camera Steps: 1. Attach the drill template (supplied) to the place where you want to install the camera, and then drill the screw holes and the cable hole (optional) according to the drill template on the ceiling.
  • Page 10 All manuals and user guides at all-guides.com Figure 2. 11 Secure the Camera with Mounting Base 5. Connect the corresponding cables, such as power cord, and video cable. 6. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera according to the figure below to get an optimum angle.
