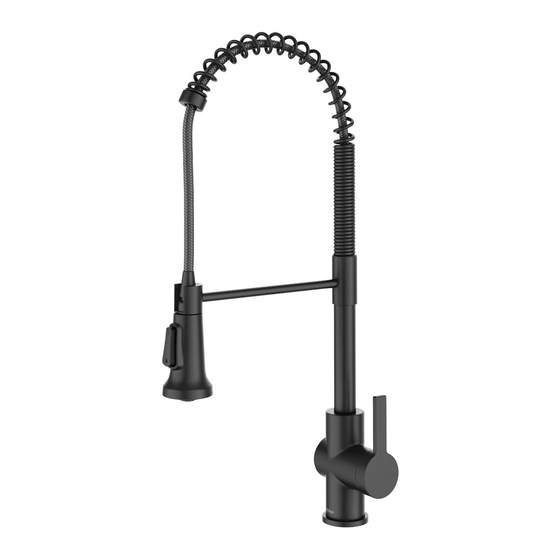

Kraus Britt KPF-1691 Installation Manual
Single handle commercial style kitchen faucet
Hide thumbs
Also See for Britt KPF-1691:
- Installation manual (13 pages) ,
- Installation manual (13 pages)
Related Manuals for Kraus Britt KPF-1691
Summary of Contents for Kraus Britt KPF-1691
- Page 1 INSTALLATION MANUAL Britt™ Single Handle Commercial Style Kitchen Faucet KPF-1691 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. March 29, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: DO NOT RETURN TO STORE...
-
Page 3: Prior To Installation
Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·... - Page 4 Diagram and Parts List G. Screws A. Spray Head H. Weight B. Faucet Body I. Weight Clip C. Flange J. Quick Connector D. Rubber Washer K. Hex Wrench E. Metal Washer F. Mounting Nut...
- Page 5 Faucet Dimensions 10 5/8" [268.9mm] 4 1/4" 8 3/8" [108.8mm] [213.6mm] Ø2 1/8" [54.2mm] 3/8” compression Installer Tip: Shut off main water supply before installing new faucet.
-
Page 6: Step 1: Installing The Faucet
Step 1: Installing the faucet Shut off the water supply. Place the faucet (B) through the hole in the sink or countertop. Secure the faucet (B) to the sink or countertop using the rubber washer (D), metal washer (E) and mounting nut (F) provided. -
Page 7: Step 3: Installing The Counterweight
Step 3: Installing the counterweight Install the weight clip (I) at the point of the hose marking "weight here". Insert the weight (H) onto the weight clip (I) by sliding it down onto the weight clip (I). Step 4: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug. - Page 8 Step 5: Flush faucet Pull the hose assembly out of the spout and remove the spray head (A) by unscrewing it from the hose in a counterclockwise direction. Be sure to hold the end of the hose down into the sink and turn the faucet on to the warm position where it mixes hot and cold water.
-
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # SFACB, BB, 1. Sprayer Head KP27195 SFS, MB** 2. Washer KP27208 KP27242 3. Inverter , GR BLSFACB,GRSFS 4. Sprayer Hose KP27244 BLMB, BLBB,BLSFS* SFACB, BB, SFSB 5. Spring Assembly KP27243 SFS, MB** 6. -
Page 10: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Bonnet nut ( ) has Leakage under the handle. come loose. The aerator is dirty or Remove the aerator and check for debris. - Page 11 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 12 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
