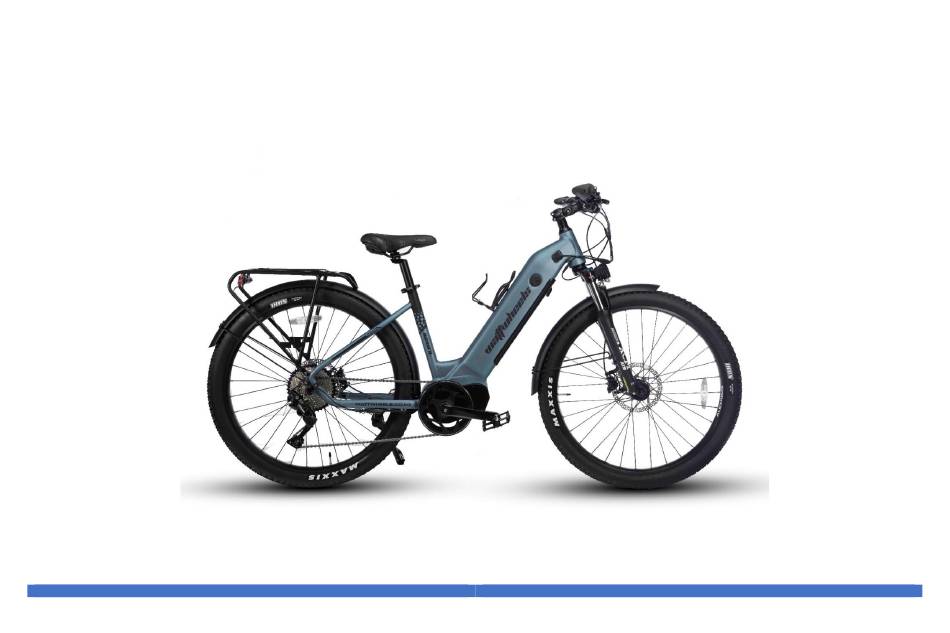

BIGHORN E-BIKE MANUAL (LS & S)
WATTWHEELS LTD
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIGHORN LS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WattWheels BIGHORN LS

  • Page 1 BIGHORN E-BIKE MANUAL (LS & S) WATTWHEELS LTD...
  • Page 2: Table Of Contents

    RIDER SEAT HEIGHT & COMFORT PAGE 11 BATTERY & CHARGING PAGE 12 - 13 USEFUL TIPS PAGE 14 PARKING STORAGE & TRANSPORT PAGE 15 SAFETY CHECKS & BASIC TROUBLESHOOTING PAGE 16-17 ERROR CODES PAGE 18 SERVICING PAGE 19 WARRANTY INFORMATION PAGE 20-22 WATTWHEELS LTD...
  • Page 3: Introduction

    WELCOME First off, welcome to the Wattwheels family! We’re so happy to have you on board! You have picked a great model and in this manual, we’re going to break down the basics to make sure that your bike remains in top shape and performs to the highest standard.
  • Page 4: Installation

    Visit www.wattwheels.co.nz to download the latest version. Wattwheels makes every effort to ensure accuracy of its documentation and assumes no responsibility of liability if any errors or inaccuracies appear within.
  • Page 5: Lcd Display

    LCD DISPLAY FEATURES The image shows the various features and information displayed on the LCD display. The display is controlled using the 4-button remote mounted on the left side of the handlebar. WATTWHEELS LTD...
  • Page 6 To activate the walk mode, hold down the + key for three seconds. This will propel the bike forward at around 6km/h. This can be used if you need to walk the bike up a hill and need some assistance in doing so. WATTWHEELS LTD...
  • Page 7 - key and you can set at 34km/h or lower if required. Please contact your local retailer if you need any assistance on this. Alternatively, you can check Wattwheels website for up to date instructional videos.
  • Page 8: Throttle

    As a preventative measure we have included a program on the bike that the throttle will only allow 50% power until the bike reaches 10km/h. Once it’s over 10km/h the throttle will allow 100% power if required. This is to help preserve the motor and prevent wear and tear on the chain and cogs. WATTWHEELS LTD...
  • Page 9: Brakes, Shift Sensor, Tyres, Chain

    The following table provides general estimates and outlines various factors effecting range and their combined estimated effects on range. This table is meant to help owners understand the factors that can increase or decrease range, but Wattwheels makes no claims to the range that individual users might obtain.
  • Page 10: Biking Range

    As mentioned, it is good to do a few smaller rides first to get familiar with the bike and the range you can get depending on what settings you have the bike on. Pay close attention to the section in looking after your battery to prolong and maximise its life. WATTWHEELS LTD...
  • Page 11: Rider Seat Height & Comfort

    While sitting on the bicycle with one pedal at its lowest point, place the ball of your foot on that pedal. The correct saddle height will allow the knee to be slightly bent in this position. WATTWHEELS LTD...
  • Page 12: Battery & Charging

    Lithium-ion batteries can last longer if you recharge with 10-15% of the charge remaining to prevent damage to the cells. Keep both the battery and charger out of the reach of children and If there appears to be an issue with the charger or battery, stop use immediately and contact either the manufacturer or Wattwheels at admin@wattwheels.co.nz WATTWHEELS LTD...
  • Page 13 We do recommend not leaving for longer than 48hours if possible DO NOT use the charger of other brands to charge. The electric apparatus contains a high-pressure circuit and is not compatible with some brands WATTWHEELS LTD...
  • Page 14: Useful Tips

    • Please don't dismantle and repair parts by yourself. Please go to your local bike repair shop. This bike comes with a manufacturer’s warranty (document included) so any standard repairs please contact Wattwheels and we will arrange a service agent close to you to look at the bike. We carry spare parts so anything electrical that a standard bike shop doesn’t have we will ship to your nearest retailer...
  • Page 15: Parking Storage & Transport

    Wide tyres, as used on Bighorn Bikes, cannot fit into all bike racks, please select an appropriate rack for the width of tyres used on your bike. o Locking up your bike is recommended to ensure your bike is secure and the chance of theft is reduced. Wattwheels makes no claims or recommendations on the proper lock hardware or procedures to secure your bike, but we do recommend you take the appropriate precautions to keep your Bighorn bike safe from theft.
  • Page 16: Safety Checks & Basic Troubleshooting

    Ensure mid-motor is spinning smoothly and the motor bearings are in good working order. Throttle o Ensure battery is charged before use. 11. Battery Pack o Ensure there is no damage to battery pack. o Lock battery to frame and check to see that it is secured. WATTWHEELS LTD...
  • Page 17 4. Repair or replace 1. Damaged motor bearings , cogs or seals 1. Replace Wheel or motor makes 2. Damaged wheel spokes or rim 2. Repair or replace strange noises 3. Damaged motor wiring 3. Repair or replace motor. WATTWHEELS LTD...
  • Page 18: Error Codes

    The error codes are listed below and can help detect what the issue is on the bike. If your bike has an error code displayed at any time it is recommended that you cease operation and contact your local dealer or Wattwheels.
  • Page 19: Servicing

    To ensure your bike remains in great shape just like a car it requires regular servicing. Failure to do so may void any potential warranty claims. Please retain your receipts for proof of service 2-3 MONTHS: 12 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: 6 MONTHS: 24 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: WATTWHEELS LTD...
  • Page 20: Warranty Information

    Wattwheels, the component will be replaced during the warranty period. Wattwheels will have no obligation under this warranty in the event the product is damaged or destroyed as a result of any of the following events: components used on a non Wattwheels product, damage or destruction by abuse; collision; theft; improper maintenance or mishandling of the product; natural forces such as wind, lightning, hail, etc.;...
  • Page 21 Wattwheels will reimburse the original Purchaser for shipping costs incurred as a result of returning the product to Wattwheels for warranty work at standard ground shipping rates, and Wattwheels will pay for shipping costs to return the product to the original. You must retain and send us the receipts for shipping.
  • Page 22 Unless otherwise provided, the sole remedy under the above warranty, or any implied warranty, is limited to the replacement of defective parts at the sole discretion of Wattwheels. In no event shall Wattwheels be responsible for direct, incidental or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether described on arrival and for the warranty period.
